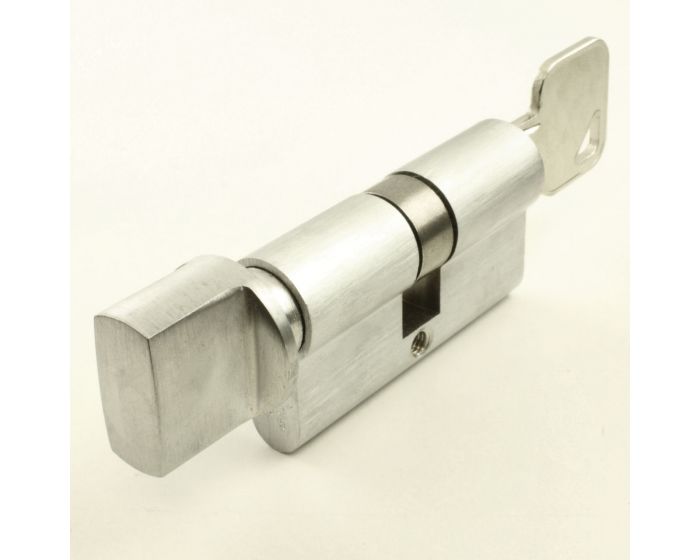

5 Pin - Euro Profile Cylinders - Key / Turn - Satin Chrome - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30680
Full Description
Product Name Price Qty
30680.2 - 5 Pin - Euro Profile Cylinder - Key/Turn - Satin Chrome - 60mm - Each
£9.96 £8.30

Per Each
30680.3 - 5 Pin - Euro Profile Cylinder - Key/Turn - Satin Chrome - 70mm - Each
£10.44 £8.70

Per Each
30680.4 - 5 Pin - Euro Profile Cylinder - Key/Turn - Satin Chrome - 80mm - Each
£11.28 £9.40

Per Each
30680.5 - 5 Pin - Euro Profile Cylinder - Key/Turn - Satin Chrome - 90mm - Each
£12.60 £10.50

Per Each
30680.1 - 5 Pin - Euro Profile Cylinder - Key/Turn - Satin Chrome - 100mm - Each
£14.64 £12.20

Per Each
Add to Mood Board
Enquire Now
  • Eurospec 5 pin - Euro profile double cylinders with key operation from one side and thumb turn knob operation from the other side

  • Brushed satin chrome plated finish.

  • Euro cylinders are the "barrels" that go through the middle of a door, commonly found of UPVC front doors.

  • Low security range with a high quality architectural finish.

  • Ideal for use on internal doors where a room or area is required to be key locked from the outside for security, but requires the facility to be able to unlock the door in case of an emergency via the internal thumb turn knob.

  • Ideal for use in bedrooms and office rooms or any room where the might need to be unlocked quickly without the use of a key

  • Not suitable for use on fire escape doors as an emergency exit device.

  • Supplied with 3 keys.

    • Operation

  • Double cylinder - key operation from outside side (secure side) and thumb turn operation from the inside of the door (non secure side).

  • The door can be locked and un-locked by turning the thumb turn knob from the inside or via key on the outside.

  • Comes supplied with 3 keys and a cylinder fixing screw.

  • Key differed - if ordering more then one, the cylinders will come with different keys.

  • Suitable for use on wooden, UPVC and metal doors.

  • Must be used in conjunction with some form of Euro profile mortice lock or multi-point locking system. (Sold separately)

    • Security Level

  • Basic security with 5 pins.

  • Best used on internal doors where low security is acceptable.

  • Can be fitted to external doors where security isn't a high priority.

  • If fitting a thumb turn cylinder to a front or back door be aware that if a burglar were to break any glass in the door they could in theory reach down to thumb turn and unlock the mortice lock.

    • Finish

  • Satin chrome - (shiny finish.)

    • Alternative Finishes Available

  • Polished chrome
  • Polished brass

    • Dimensions

  • Equal cylinders (each side of the cam is the same size.)

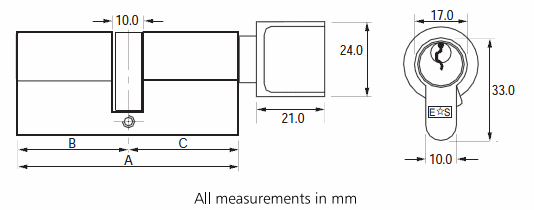

    • Diagram showing dimensions of the Eurospec 5 pin euro profile key / turn cylinder range


    Item Code Overall Length (A) External Side (B) Internal Side (C)
    CYA71360SC 60mm 30mm 30mm
    CYA71370SC 70mm 35mm 35mm
    CYA71380SC 80mm 40mm 40mm
    CYA71390SC 90mm 45mm 45mm
    CYA713100SC 100mm 50mm 50mm


  • To work out the length of cylinder you require you need to add together

  • - The thickness of the door. (D) on the below diagram.
  • - Plus the thickness of the escutcheon / backplate on each side of the door. (E) on the diagram below.

    • Diagram showing how to measure a euro profile cylinder



  • For security reasons it's best where possible to have the Euro cylinder finish flush (flat) with the edge of the escutcheon or backplates of the handles fitted to the door.

  • Cylinders that stick out past escutcheons and backplates of handles are much more vulnerable to attack as they can more easily be hammered, twisted or cut during an attack.

    • Standards This Product Conforms To

  • The Eurospec 5 pin Euro profile cylinders have been included on a successful fire test to BS EN1634: Part 1 2000 - Assessed for use on 30 minute and 1 hour fire doors FD30 / FD60.

    • Options Available To Order

  • Keyed Alike (KA) - A batch of cylinders all under the same one key.
  • Under Master Key (UMK) - A batch of cylinders all under different keys with one master key which operates any of the cylinders.
  • Please contact us for more information and lead times and prices for the above options.

    • Unit Of Sale

  • Each - (1x cylinder with 3x keys and 1x fixing screw.)
    • Download PDF Data Sheet
    More Information
    Item 30680
    Item Code 30680
    Finish Satin Chrome
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Each
    Availability Non stock product - please allow 3-7 days for delivery
    Non stock product - please allow 3-7 days for delivery
