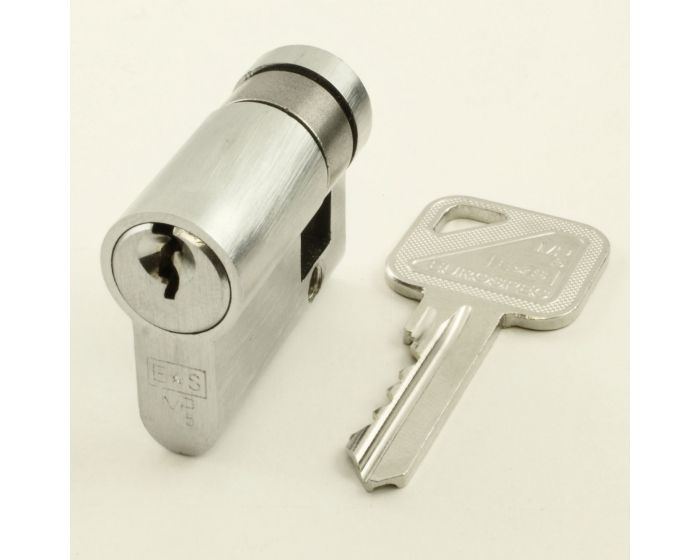

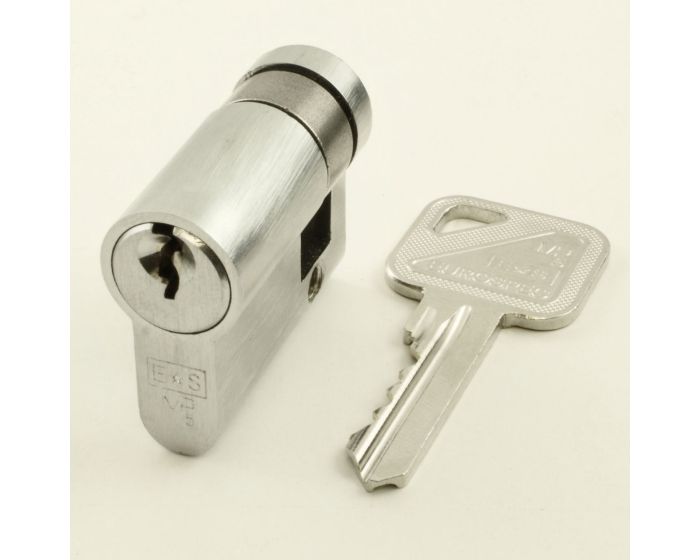

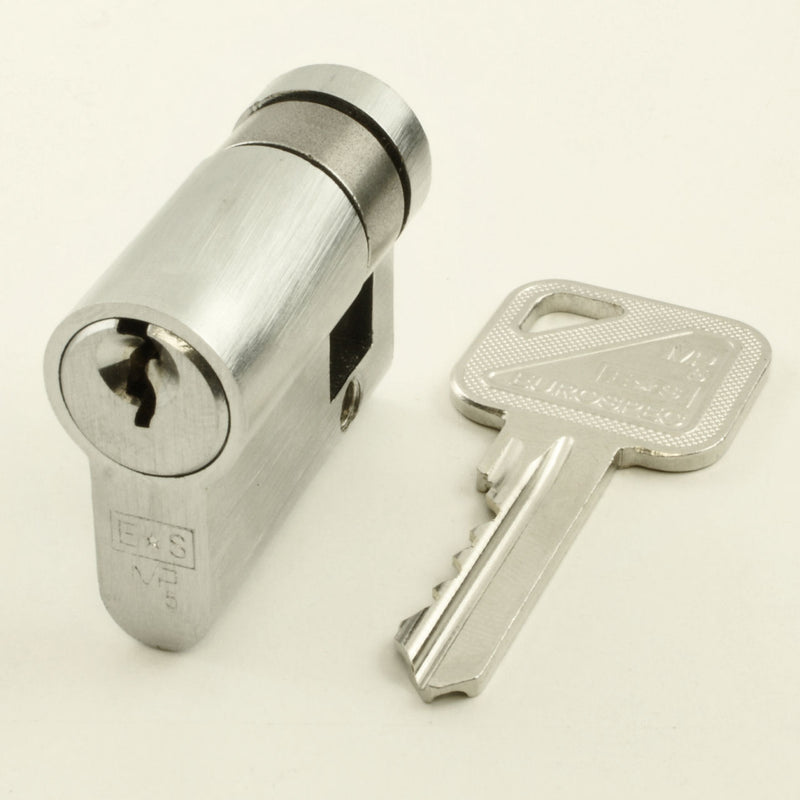

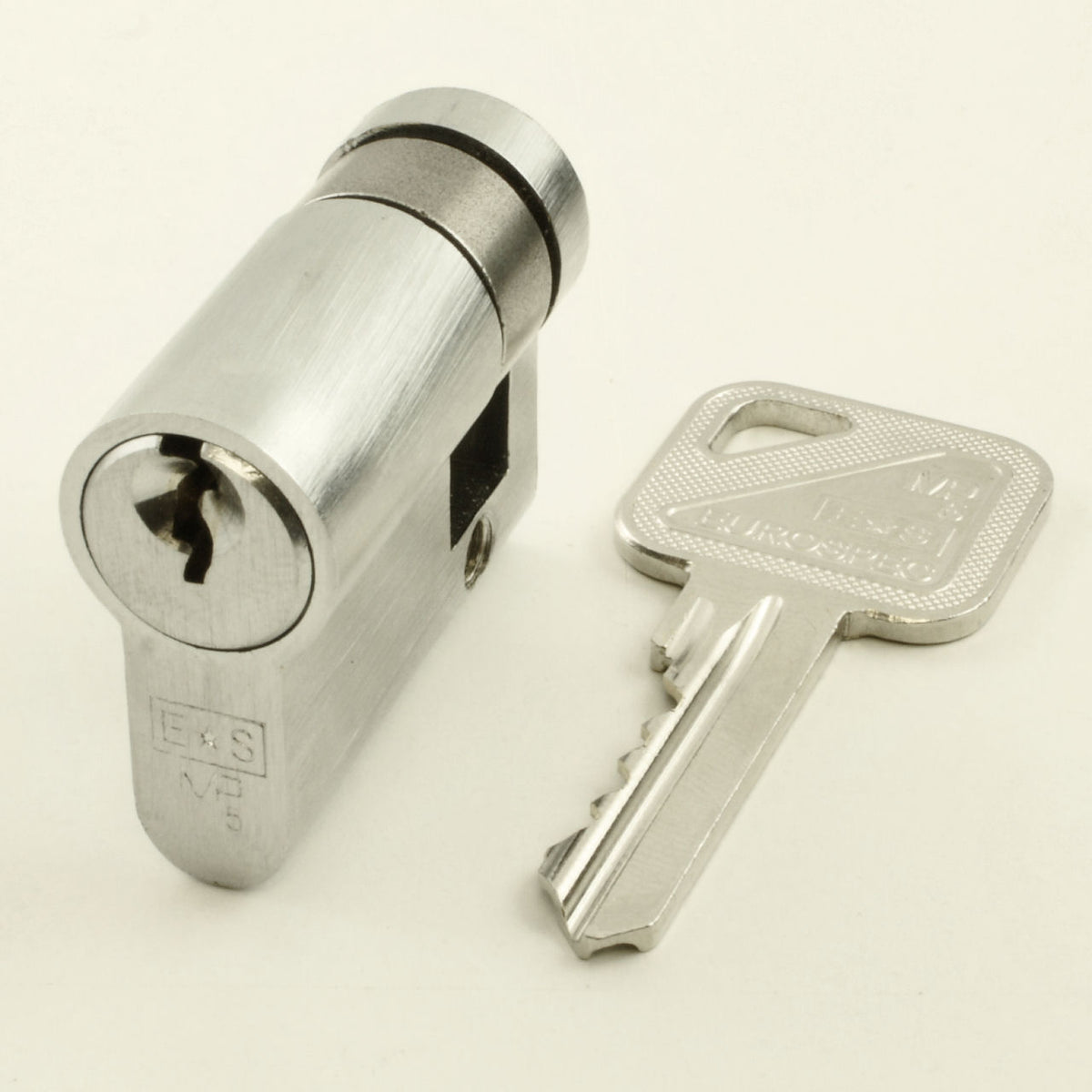

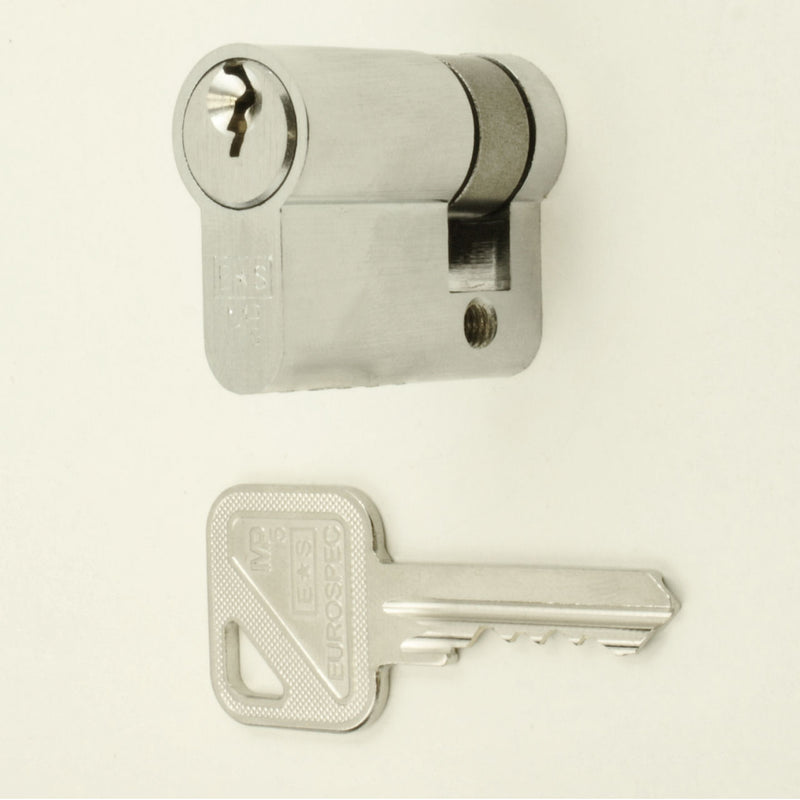

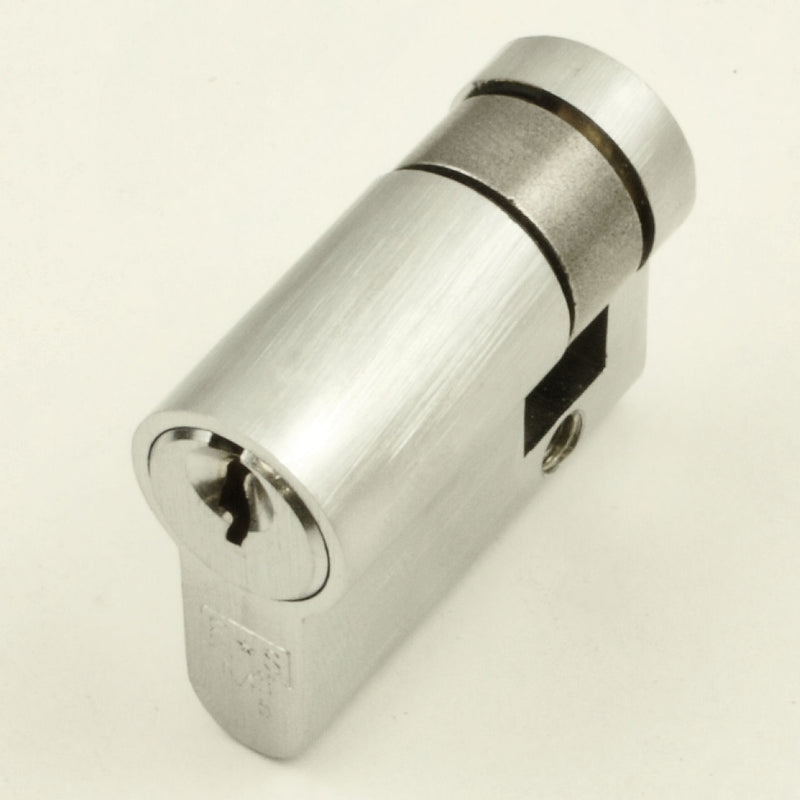

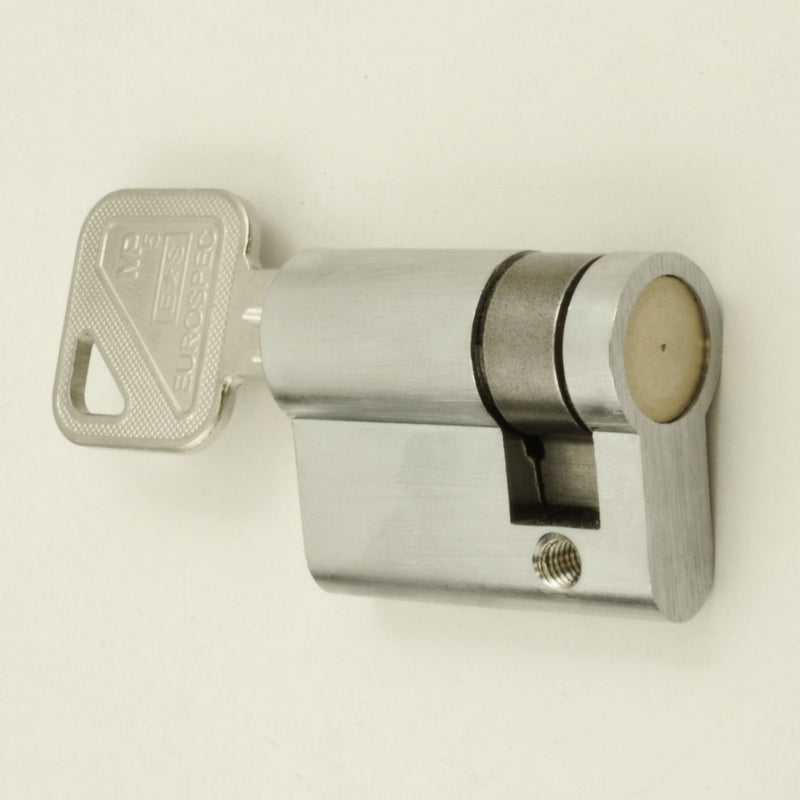

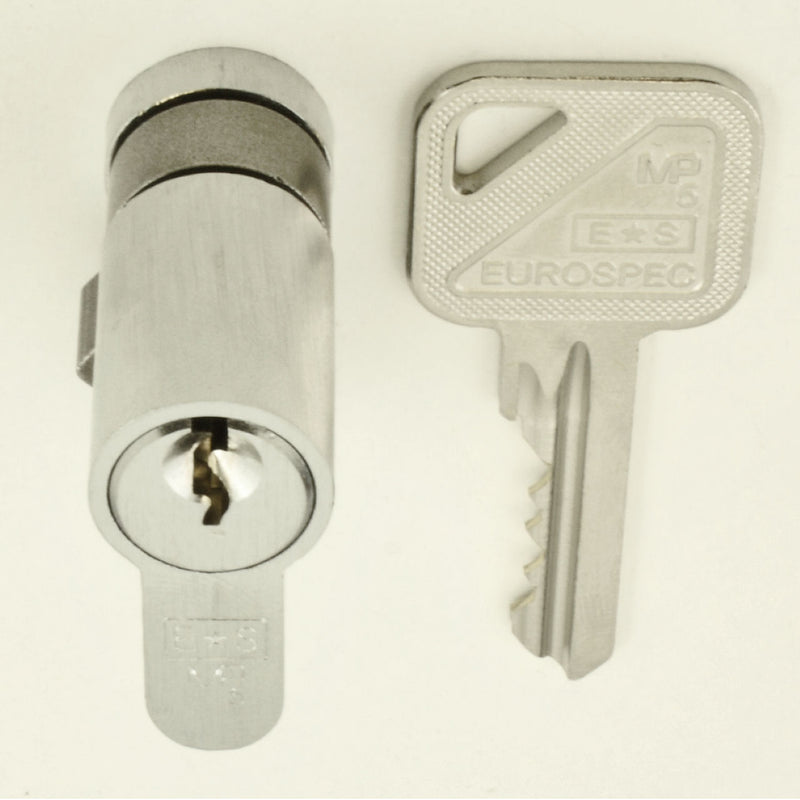

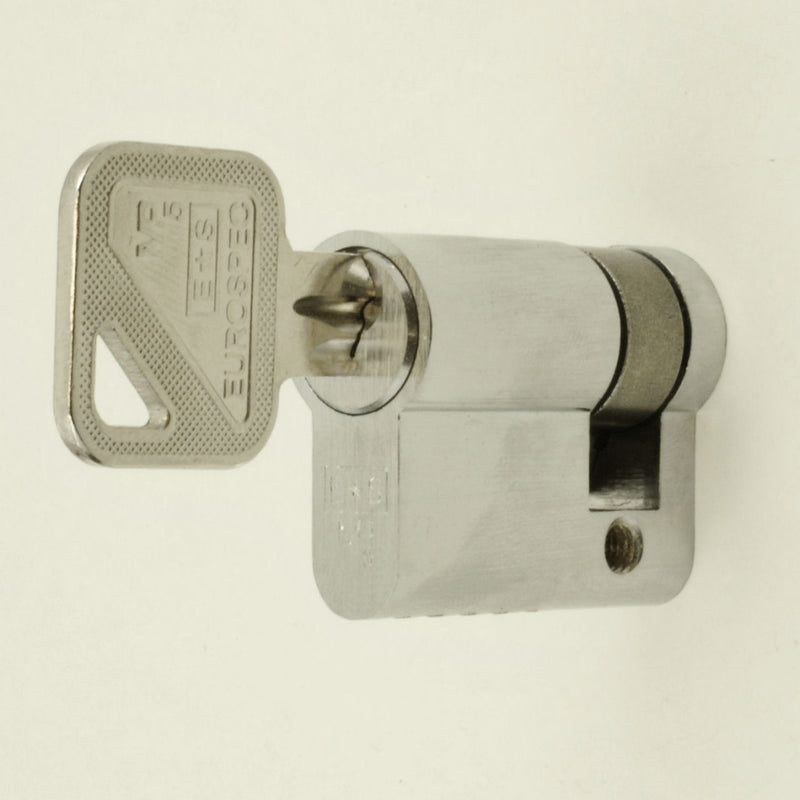

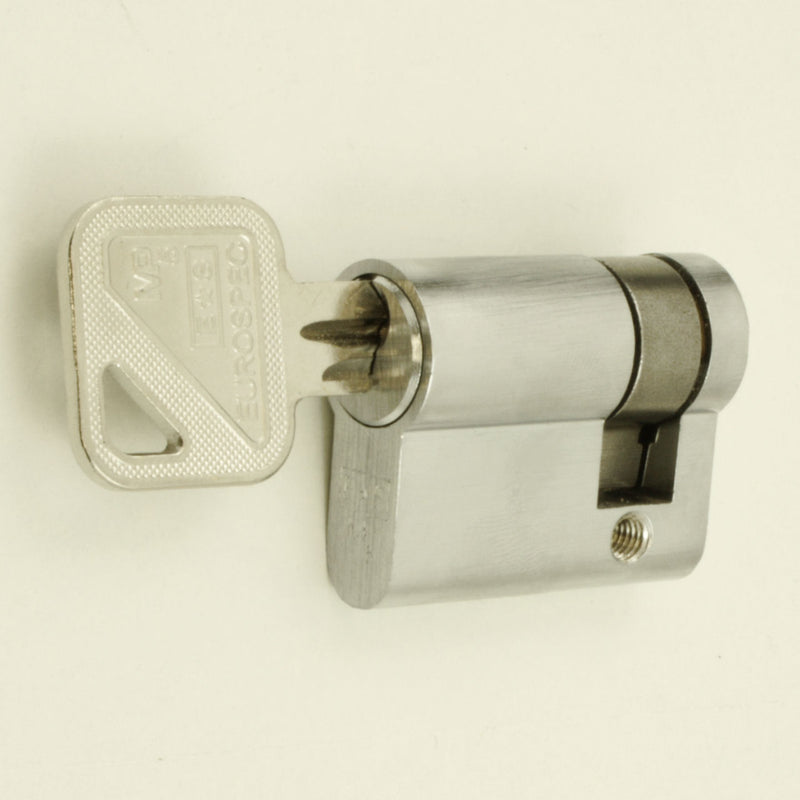

5 Pin - Euro Profile Single Cylinders - Satin Chrome - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30683
Full Description
Product Name Price Qty
30683.1 - 5 Pin - Euro Profile Single Cylinder - 40mm - Tested For Use With FD30 / FD60 Fire Doors - Satin Chrome - Each40mm
£6.60 £5.50

Per Each
30683.2 - 5 Pin - Euro Profile Single Cylinder - 45mm - Tested For Use With FD30 / FD60 Fire Doors - Satin Chrome - Each45mm
£6.60 £5.50

Per Each
30683.3 - 5 Pin - Euro Profile Single Cylinder - 50mm - Tested For Use With FD30 / FD60 Fire Doors - Satin Chrome - Each50mm
£6.96 £5.80

Per Each
Add to Mood Board
Enquire Now
  • Eurospec 5 pin - Euro profile single cylinders with key operation from one side only.

  • Satin chrome plated - (brushed finish ideal for use with stainless steel products)

  • Euro cylinders are the "barrels" that go through the middle of a door, commonly found of UPVC front doors.

  • Low security range with a high quality architectural finish.

  • Ideal for use on internal cupboard doors where the door only needs to be locked from the outside.

  • Commonly used with Euro profile mortice night latches and outside access devices (OAD's).

  • Supplied with 3 keys.

    • Operation

  • Single cylinder - key operation from the outside side of the door only.

  • The door can be locked and un-locked by turning the key from the outside only (with single cylinders there is no facility to lock a door from the inside).

  • Comes supplied with 3 keys and a cylinder fixing screw.

  • Key differed - if ordering more then one, the cylinders will come with different keys.

  • Suitable for use on wooden, UPVC and metal doors.

  • Must be used in conjunction with some form of Euro profile mortice lock or multi-point locking system. (Sold separately)

    • Security Level

  • Basic security with 5 pins.

  • Best used on internal doors where low security is acceptable.

  • Can be fitted to external doors where security isn't a high priority.

    • Finish

  • Satin chrome - (brushed finish.)

    • Alternative Finishes Available

  • Polished chrome
  • Polished brass

    • Dimensions

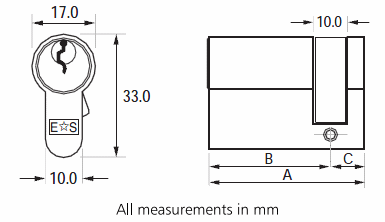

    Diagram showing dimensions of the Eurospec 5 pin euro profile single cylinder range


    Item Code Overall Length (A) External Side (B) Internal Side (C)
    CYA71140SC 40mm 30mm 10mm
    CYA71145SC 45mm 35mm 10mm
    CYA71150SC 50mm 40mm 10mm


    Fitting Information


    Diagram showing how a euro profile single cylinder is fitted



  • For security reasons it's best where possible to have the Euro cylinder finish flush (flat) with the edge of the escutcheon or backplates of the handles fitted to the door.

  • Cylinders that stick out past escutcheons and backplates of handles are much more vulnerable to attack as they can more easily be hammered, twisted or cut during an attack.

    • Standards This Product Conforms To

  • The Eurospec 5 pin Euro profile cylinders have been included on a successful fire test to BS EN1634: Part 1 2000 - Assessed for use on 30 minute and 1 hour fire doors FD30 / FD60.

    • Options Available To Order

  • Keyed Alike (KA) - A batch of cylinders all under the same one key.
  • Under Master Key (UMK) - A batch of cylinders all under different keys with one master key which operates any of the cylinders.
  • Please contact us for more information and lead times and prices for the above options.

    • Unit Of Sale

  • Each - (1x cylinder with 3x keys and 1x fixing screw.)
    • Download PDF Data Sheet
    More Information
    Item 30683
    Item Code 30683
    Finish Satin Chrome
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Each
    Availability Non stock product - please allow 3-7 days for delivery
    Non stock product - please allow 3-7 days for delivery
