Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - Polished Stainless Steel

Catalogue Number:

20860

Product Name Price Qty

20860.4 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 64mm Case Depth (44mm Backset) - Polished Stainless Steel

£11.40 £9.50

Per Each

20860.1 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 76mm Case Depth (57mm Backset) - Polished Stainless Steel

£11.40 £9.50

Per Each

20860.2 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 102mm Case Depth (83mm Backset) - Polished Stainless Steel

£14.04 £11.70

Per Each

20860.3 - Architectural Quality Tubular Mortice Deadbolt With 5mm Follower - CE / UKCA Marked - Fire Rated - Certifire Approved - 125mm Case Depth (108mm Backset) - Polished Stainless Steel

£15.60 £13.00

Per Each

Enquire Now

Description

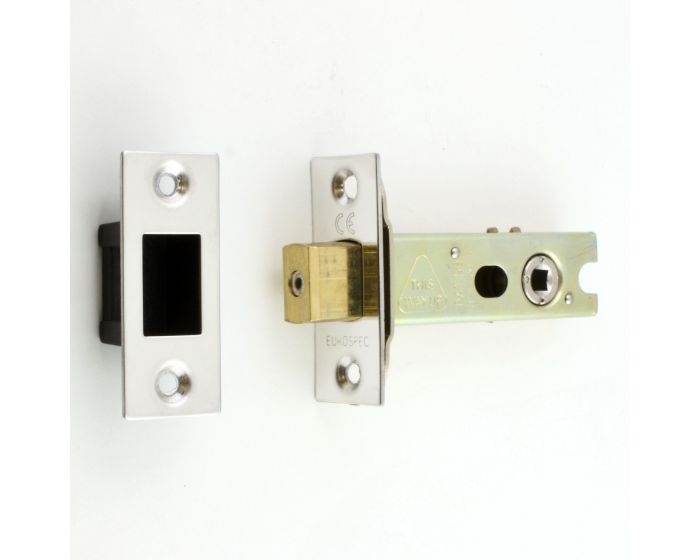

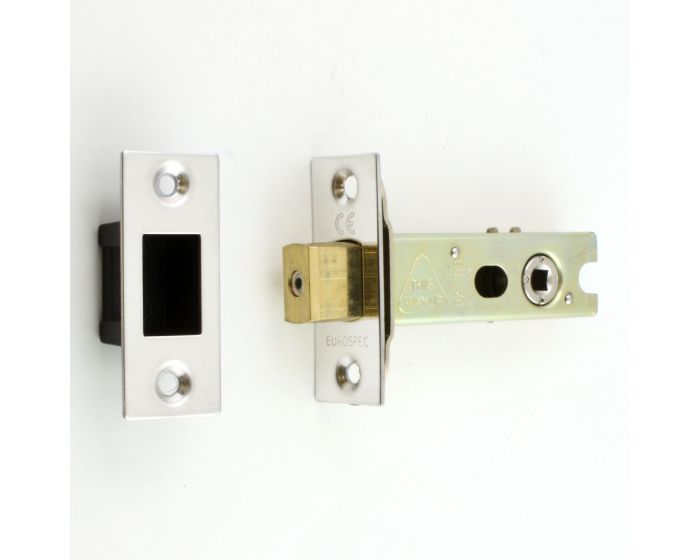

Tubular style mortice deadbolt.

Supplied with a polished stainless steel (shiny finish) forend and frame mounted receiver plate including black plastic back box.

5mm follower designed for used with UK style bathroom turn & release sets.

Twisting the follower a quarter is enough to throw and withdraw the deadbolt.

38mm bolt through holes allows turn and release sets to be bolted together for extra strength when fitted to the door.

Architectural quality.

Designed for use on bathroom doors, WC's and toilet doors

Can also be used as a heavy duty security bolt for front and back doors when used in conjunction with the SDB5010EB key and escutcheon pack.

Operation

Deadbolt is locked and un-locked by using a bathroom thumbturn and emergency release set.

Features .

Solid brass deadbolt with anti-saw rollers.

Bolt through facility for bolt together fixing furniture with 38mm fixing centres.

5mm x 5mm spindle follower (to suit standard UK size turn & release spindles).

Security Level

Medium security architectural range.

Suitable for use on internal doors in residential, commercial or public buildings.

Finish

Polished stainless stee - (shiny finish).

Alternative Finishes Available

Satin stainless steel.

PVD brass.

Florentine bronze.

Dimensions

Item Code	Case Depth (A)	Backset To Follower (B)
20860.4	64mm	44mm
20860.1	76mm	57mm
20860.2	102mm	82mm
20860.3	125mm	108mm

Standards This Product Conforms To

Lock case tested and passed to BS EN 12209. The British / European standard requirements and test methods covering locks and latches. Classification number - 3H810F-BG00.

Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. Assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.- Intumescent lock case liners required (sold separately).

Certifire approved.

CE Marked / UKCA Marked.

Declaration of performance (DoP) - please see the additional information tab to download the certificate.

Options Available To Order

This dead bolt is also available to order with radius (rounded shape) forend and receiver plates. Please contact us for lead times and prices.

Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.

Rebate Kit For Double Rebated Doors

No rebate kit available to suit this dead bolt.

Unit Of Sale

Each - (1 x dead bolt supplied with forend, receiver plate and plastic back box).

Download

Download PDF Data Sheet

Specification

More Information
Item	20860
Item Code	20860
Finish	Polished Stainless Steel -
Dimensions	64mm, 76mm, 102mm or 125mm Case Depth
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each
Availability	Stock item - please allow 1-3 days for delivery
