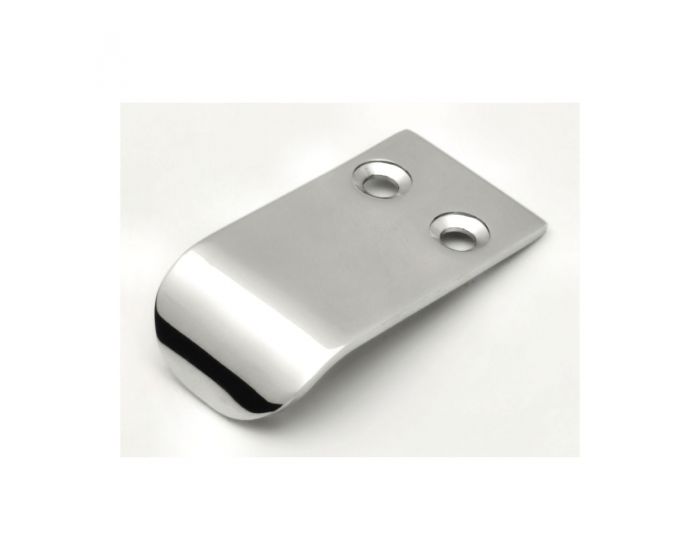

Face Fixing Finger Edge Pull - Available In 3 Sizes - Polished Chrome Plated

Catalogue Number:

30307

Product Name Price Qty

30307.1 - Face Fixing Finger Edge Pull - Polished Chrome - 25mm Wide x 48mm Projection - Each

£3.84 £3.20

Per Each

30307.2 - Face Fixing Finger Edge Pull - Polished Chrome - 50mm Wide x 48mm Projection - Each

£5.88 £4.90

Per Each

30307.3 - Face Fixing Finger Edge Pull - Polished Chrome - 75mm Wide x 48mm Projection - Each

£7.28 £6.07

Per Each

Sleek, minimal design ideal for those looking for a small discreet handle to open a drawer or door with.

Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.

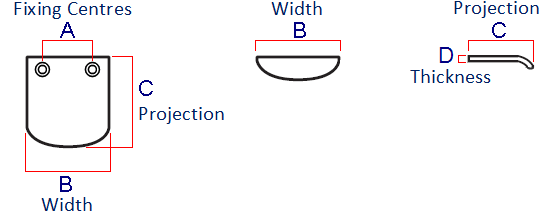

Diagram-Showing Dimensions Of The FTD3015 face fix hidden finger edge pull

Item Code	Fixing centers (A)	Overall Width (B)	Projection (C)	Thickness (D)
30307.1	15mm	25mm	48mm	2mm
30307.2	40mm	50mm	48mm	2mm
30307.3	75mm	65mm	48mm	2mm

Polished Chrome - a highly shiny, smooth, mirror like finish. with a very slight blue tint.
The zinc alloy base material has been highly polished and then chrome plated to produce this finish.

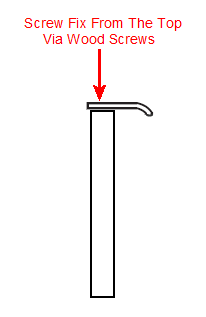

The edge pull is fitted via countersunk wood screws from the top face of the handle - see below diagram.

Diagram-Showing How The FTD3015 Hidden Finger Edge Pull Is Fitted

More Information
Item	30307
Item Code	30307
Finish	Polished Chrome
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery

Non stock product - please allow 3-7 days for delivery
