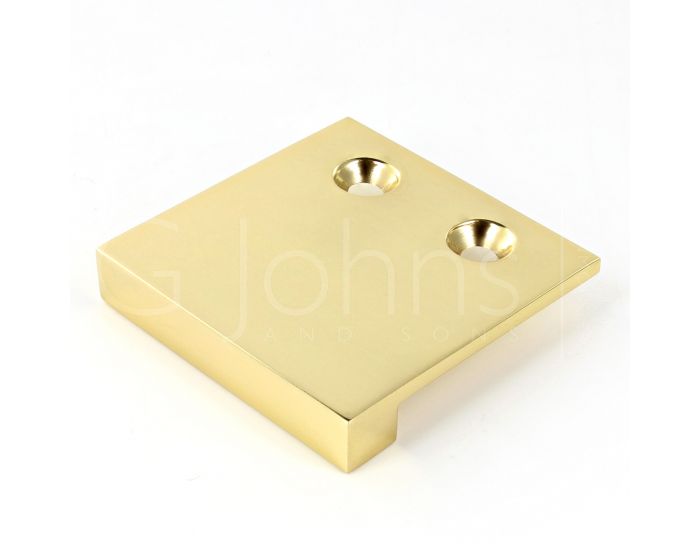

Face Fixing Finger Edge Pull - With Cube Edge Design - Available In 4 Sizes - Polished Brass

Catalogue Number:
44880
Full Description
Product Name Price Qty
44880.1 - Face Fixing Finger Edge Pull - With Cube Edge - 50mm Wide x 50mm Projection - Polished Brass (Lacquered) - Each
£15.86 £13.22

Per Each
Out of stock
44880.2 - Face Fixing Finger Edge Pull - With Cube Edge - 75mm Wide x 50mm Projection - Polished Brass (Lacquered) - Each
£22.06 £18.38

Per Each
Out of stock
44880.3 - Face Fixing Finger Edge Pull - With Cube Edge - 100mm Wide x 50mm Projection - Polished Brass (Lacquered) - Each
£26.21 £21.84

Per Each
Out of stock
44880.4 - Face Fixing Finger Edge Pull - With Cube Edge - 200mm Wide x 50mm Projection - Polished Brass (Lacquered) - Each
£40.46 £33.72

Per Each
Out of stock
Add to Mood Board
Enquire Now
  • Face fixing edge pull handle.
  • Cube edge design.
  • Sleek, minimal design ideal for those looking for a small discreet handle to open a drawer or door with.
  • Available in 4 sizes up to 200mm wide. Bespoke sizes available upon request - up to 1800mm
  • Face fix design via matching wood screws.
  • Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers.
  • Special order, please allow 3-4 week lead time.



Size Details

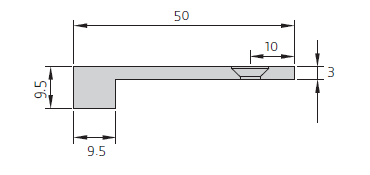

Diagram Showing Dimensions Of The Face Fix Hidden Finger Edge Pull With Cube Design Edge



Item Code Overall Width Projection Thickness (D)
44880.1 50mm 50mm 3mm
44880.2 75mm 50mm 3mm
44880.3 100mm 50mm 3mm
44880.4 200mm 50mm 3mm

Bespoke widths available upon request - up to 1800mm

Base Material

  • Made from solid brass,

Finish Details

  • Polished brass

Fixings

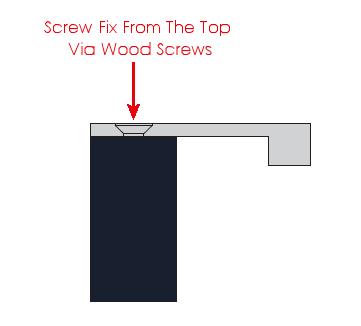

  • The edge pull is fitted via countersunk wood screws from the top face of the handle  - see below diagram.

Diagram-Showing How The FTD3015 Hidden Finger Edge Pull Is Fitted

  • Supplied with matching countersunk slotted wood screws.

Usage

  • Suitable for internal or external use.

Unit Of Sale

  • Edge pull handles are sold individually - (each).
Download PDF Data Sheet
More Information
Item 44880
Item Code 44880
Finish Polished Brass Lacquered
Dimensions 50mm Depth x 50mm / 75mm / 100mm or 200mm Width
Sold Per Each
Availability Made to order product - please allow 5-6 weeks for delivery
