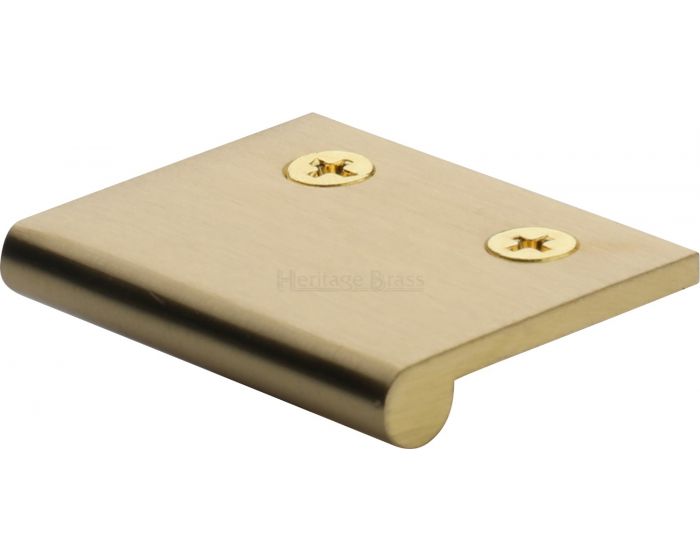

main product photo

Face Fixing Finger Edge Pull - With Rounded Edge Design - Available In 6 Sizes - Satin Brass (Lacquered)

Catalogue Number:
49259
Full Description
Product Name Price Qty
49259.1 - Face Fixing Finger Edge Pull - With Rounded Edge Design - 50mm x 38mm - Satin Brass (Lacquered) - Each
£8.68 £7.23

Per Each
49259.2 - Face Fixing Finger Edge Pull - With Rounded Edge Design - 100mm x 38mm - Satin Brass (Lacquered) - Each
£12.68 £10.57

Per Each
49259.3 - Face Fixing Finger Edge Pull - With Rounded Edge Design - 200mm x 38mm - Satin Brass (Lacquered) - Each
£22.42 £18.68

Per Each
49259.4 - Face Fixing Finger Edge Pull - With Rounded Edge Design - 50mm x 68mm - Satin Brass (Lacquered) - Each
£13.34 £11.12

Per Each
49259.5 - Face Fixing Finger Edge Pull - With Rounded Edge Design - 100mm x 68mm - Satin Brass (Lacquered) - Each
£22.69 £18.91

Per Each
49259.6 - Face Fixing Finger Edge Pull - With Rounded Edge Design - 200mm x 68mm - Satin Brass (Lacquered) - Each
£41.38 £34.48

Per Each
Add to Mood Board
Enquire Now
  • Face fixing edge pull handle
  • Rounded edge design
  • Sleek, minimal design ideal for those looking for a small discreet handle to open a drawer or door with
  • Available in 6 sizes up to 200mm wide
  • Face fix design via mSBching wood screws
  • Suitable for use on kitchen cabinet doors, wardrobes, cupboard doors and drawers

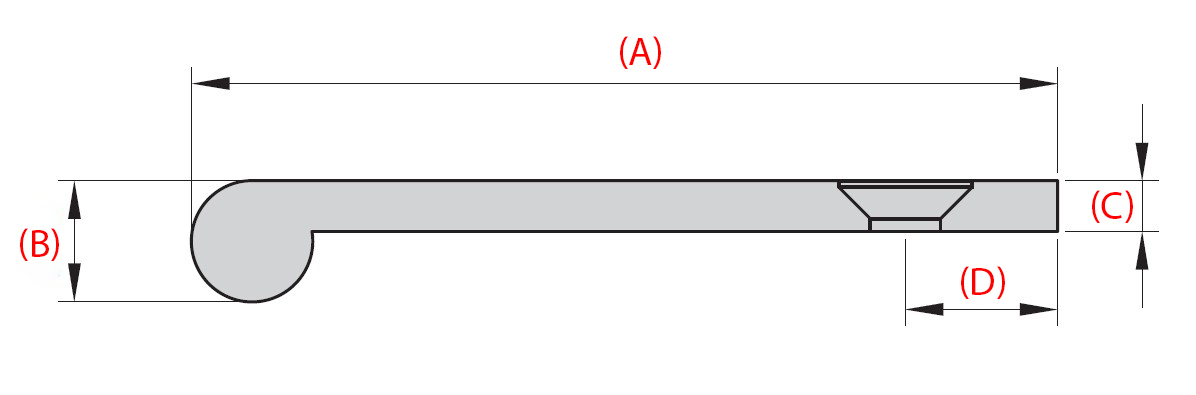

Size Details




Item Code Overall Width Projection (A) Edge Diameter (B) Thickness (C) Screw Backset(D) Number Of Fixing Holes
49259.1 50mm 38mm 8mm 3mm 9mm 2
49259.2 100mm 38mm 8mm 3mm 9mm 2
49259.3 200mm 38mm 8mm 3mm 9mm 4
49259.4 50mm 68mm 10mm 4mm 12mm 2
49259.5 100mm 68mm 10mm 4mm 12mm 2
49259.6 200mm 68mm 10mm 4mm 12mm 4

Base MSBerial

  • Made from solid brass

Finish Details

  • Satin Brass

Fixings

  • The edge pull is fitted via countersunk wood screws from the top face of the handle  - see below diagram


  • Supplied with mSBching countersunk slotted wood screws

Usage

  • Suitable for internal or external use

Unit Of Sale

  • Edge pull handles are sold individually - each
Download PDF Data Sheet
More Information
Item 49259
Item Code 49259
Finish Satin Brass (Lacquered)
Dimensions 50mm x 38mm, 100mm x 38mm, 200mm x 38mm, 50mm x 68mm, 100mm x 68mm, 200mm x 68mm
Fire Rated Non Fire Rated
Sold Per Each
Availability Non stock product - Please allow 7-14 days for delivery
Non stock product - Please allow 7-14 days for delivery
