FD30 - 30 Minute Fire Rated - Double Action Spring Hinges - For Double Swing Doors - Satin Stainless Steel

Catalogue Number:
48215
Full Description
Product Name Price Qty

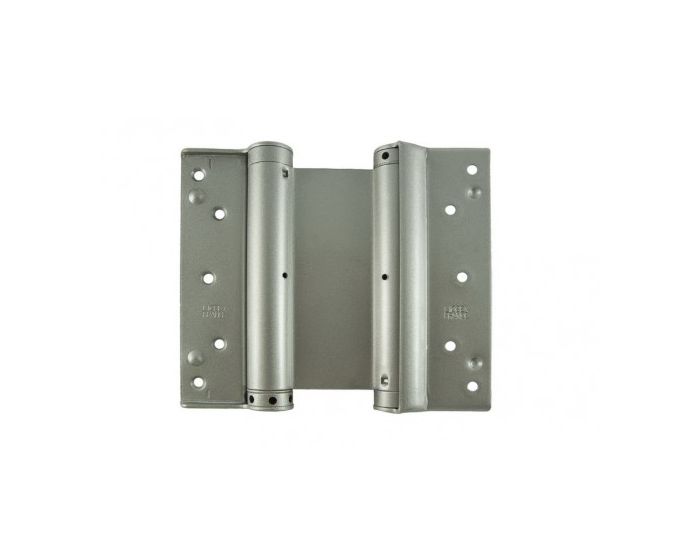

48215.1 - FD30 - 30 Minute Fire Rated - Double Action Spring Hinges - For Double Swing Doors - 152mm x 95mm (To Suit Door Thicknesses 25mm - 44mm) - Satin Stainless Steel - Set of 3 hinges
£638.92 £532.43

Per Set of 3 hinges
Enquire Now
  • This range has an enclosed body to reduce the risk of vandalism. This unique fixing method makes it suitable for environments where security and reliability are essential.
  • Double action "Bomber style" spring hinges.
  • Designed for use on doors that need to swing in two directions (through 180 degrees).
  • Please note these hinges are fire rated and come as a set of three hinges, supplied with intumescent hinge liners.
  • Spring loaded knuckles with adjustable spring strength.

Finish

  • Satin Stainless Steel (Grade 304)

Dimensions

Double action spring hinge dimensions diagram



Item CodeHeight (A)Width (B)Knuckle Diameter (C)To Suit Door Thickness (D)To Suit Max Door WidthMax Door Weight
48215.1 152mm 95mm 25mm 25mm - 44mm 932mm 42kg

Installation Instructions

fd30-30-minute-fire-rated-double-action-spring-hinges-for-double-swing-doors-diagram

  • To install double action spring hinges correctly it is necessary to have or fix a plant down the hanging frame. Ideally the width of the plant should be the same dimension as the thickness of the door. The thickness of the plant should be sufficient to allow the leaf of the hinge to rotate freely around the knuckle, after the lipped face (C) has been mortised in. The other lipped face should be mortised into the door, ensuring that both leafs are free to rotate and that the standard door plant clearance is maintained.
  • Where applicable the capstan should be located at the top on the plant, and at the bottom on the door. This configuration will ensure optimum efficiency and minimum wear. Hinges where the capstans are located at the same end, should be installed with the capstans at the top.
  • Normal installation should be 250mm from the top and bottom of the door. In the event of a door being oversize, a third hinge may be fitted 100mm below the top hinge. Care must be taken to ensure that the centre line of the hinges is in alignment.
  • On fire rated FD30 & FD60 models the supplied intumescent must be stuck to the outer edge (X) covering area ‘C’ of each hinge leaf and appropriately trimmed. Failure to install the supplied intumescent will invalidate the Fire Certificate!

Adjustment

  • Normal operation of the hinge is achieved by tightening both capstans on each hinge and inserting the pins provided. Normally the top hinge(s) will not require more than three holes, and the bottom hinge two holes.

Maintenance

  • Spring Hinges are lubricated before despatch. We recommend annual lubrication to maintain trouble free operation.

Important Info Before You Buy

  • Sold as an set of three hinges, supplied with intumescent hinge liners
  • Independently tested by Exova Warrington Fire to BS EN 1634-1:2008 Report No. 324188
  • Fire test evidence avaliable on request

More Information
Item 48215
Item Code 48215
Finish Satin Stainless Steel
Dimensions 152mm
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Set of 3 hinges
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
