FD30 / FD60 Rated Intumescent Fire Door Kit To Suit 160mm x 32mm 3D Adjustable Hinge

Catalogue Number:

43426

Full Description

Product Name Price Qty

43426.1 - FD30 / FD60 Rated Intumescent Fire Door Kit To Suit 160mm x 32mm 3D Adjustable Hinge

£13.30 £11.08

Per Each

Enquire Now

Description

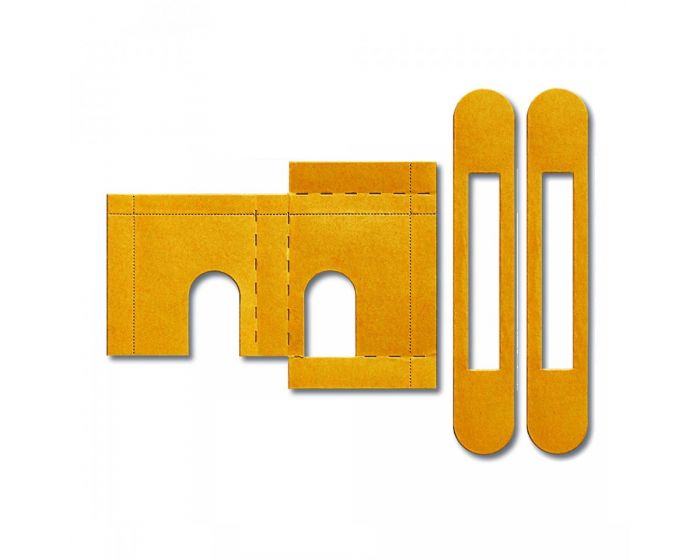

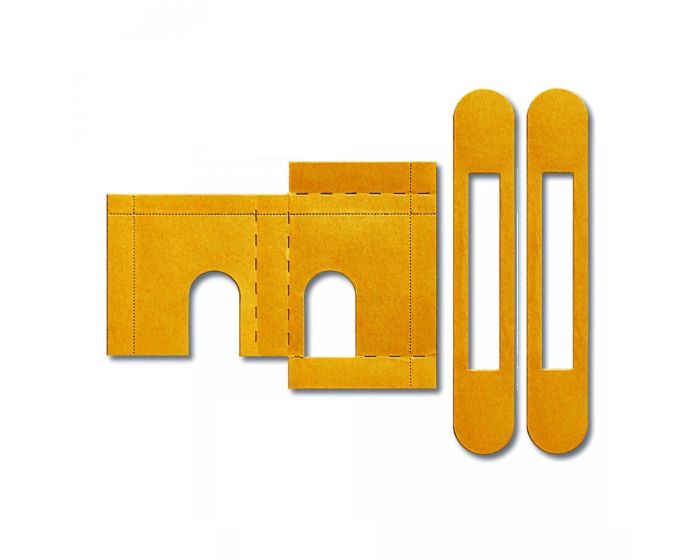

Intumescent pack to suit the 160mm x 32mm concealed 3D adjustable hinge.

Full wraparound, self adhesive kit.

Serrated corners for easy shaping.

Suitable for FD30 / FD60 fire doors.

0.8mm thick material.

Must be used when installing our 3D adjustable concealed hinges into a fire rated door leaf.

Technical Properties Of The Intumescent Material:

Material - Intercalated Graphite 0.8mm Sheet
Initial Expanding (Deg-C) > -180 degrees C
Main Body Expanding (Deg-C) 550 degrees C
Free Expansion Rate Multi Directional x40 Volume
Density 1.2g/cm3

Download

Download PDF Data Sheet

Specification

More Information
Item	43426
Item Code	43426
Finish	-
Dimensions	160mm x 32mm
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
