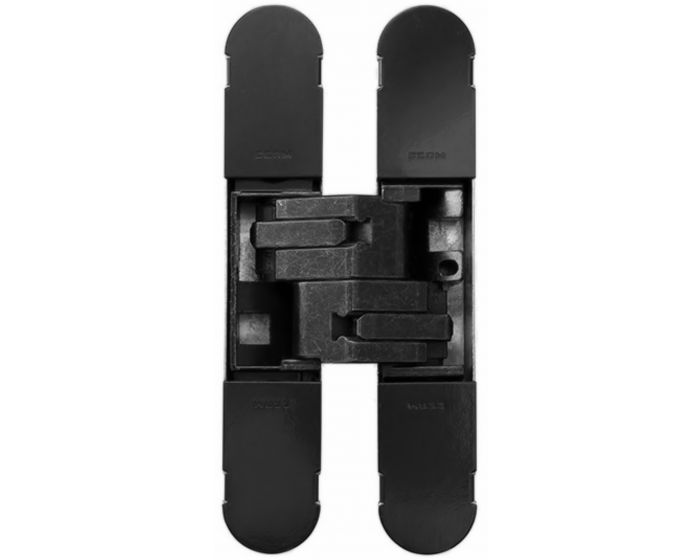

Matt Black Fire Rated Concealed Adjustable Hinge For Invisible Doors

Catalogue Number:

43439

Product Name Price Qty

43439.1 - Concealed Adjustable Hinge For Invisible Doors - FD30 / FD60 Fire Rated - 160mm x 32mm - Matt Black - Each - (1 Hinge)

£80.26 £66.88

Per Each

Out of stock

Enquire Now

160mm x 32mm fire rated* adjustable concealed door hinge
Fire-rated* - suitable for use on FD30 and FD60 fire doors *when used with the intumescent kit*
Matt black finish
Minimum door thickness: 38mm.
Ideal for use with fire-rated flush doors, where a hidden door lock or invisible door hinge is required
Cover caps hide the adjustment and fixing screws for a minimalist look.
Totally recessed, making the gap between the door and frame very small.
Easy to install and maintain.
3D adjustable design (door can be adjusted vertically, horizontally and laterally).
Opening angle up to 180 (when used with architrave free door frames).

Weight Limits

Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) - 120kg
Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 140kg

Dimensions

Installation & Adjustment Videos

Download

More Information
Item	43439
Item Code	43439
Finish	Matt Black
Dimensions	160mm x 32mm
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each - (1 Hinge)
Availability	Non stock product - please allow 3-7 days for delivery
