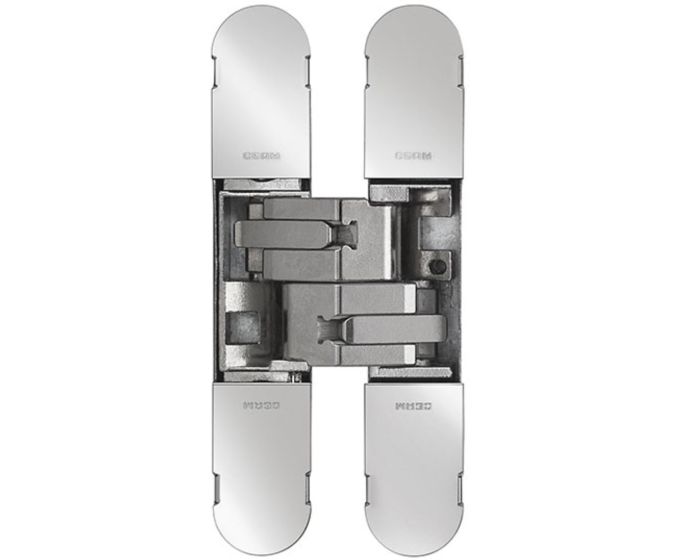

Fire Rated Concealed Adjustable Hinge For Invisible Doors - Tested To FD30 / FD60 - 160mm x 32mm - Polished Nickel
Catalogue Number:
43435
Related Products
-
![FD30 / FD60 Rated Intumescent Fire Door Kit To Suit 160mm x 32mm 3D Adjustable Hinge]()
FD30 / FD60 Rated Intumescent Fire Door Kit To Suit 160mm x 32mm 3D Adjustable HingeStarting at £13.30 £11.08
- 160mm x 32mm fire rated* adjustable concealed door hinge
- Fire rated* - suitable for use on FD30 and FD60 fire doors * when used with the 43426 intumescent kit (see related products) *
- Polished nickel.
- Minimum door thickness 38mm.
- Ideal for use with fire rated flush doors, where an invisible or hidden door look is required.
- Cover caps hide the adjustment and fixing screws for an a minimalist look.
- Totally recessed making the gap between door and frame very small.
- Easy to install and maintain
- 3D adjustable design (door can be adjusted vertically, horizontally and laterally).
- Opening angle up to 180 (when used with architrave free door frames).
Weight Limits
- Max door weight with 2 x hinges fitted - 80kg
- Max door weight with 3 x hinges fitted (hinges fitted top,middle and bottom) - 120kg
- Max door weight with 3 x hinges fitted (hinges fitted 2 x top,and 1 x bottom) - 140kg
Finish
- Polished nickel.
Dimensions
- 160mm height x 32mm width x 29mm depth.
- 3D Adjustable
- +/- 3mm Side
- +/- 3mm Height
- +/- 1.5mm Compression
Installation & Adjustment Videos
| Item | 43435 |
|---|---|
| Item Code | 43435 |
| Finish | Polished Nickel |
| Dimensions | 160mm x 32mm |
| Fire Rated | FD30 / FD60 - Fire Rated |
| Sold Per | Each - (1 Hinge) |
| Availability | Non stock product - please allow 3-7 days for delivery |
Non stock product - please allow 3-7 days for delivery
-
