Fixed Quadrant Arm Stays For Fanlight Windows - Satin Chrome

Skip to the end of the images gallery

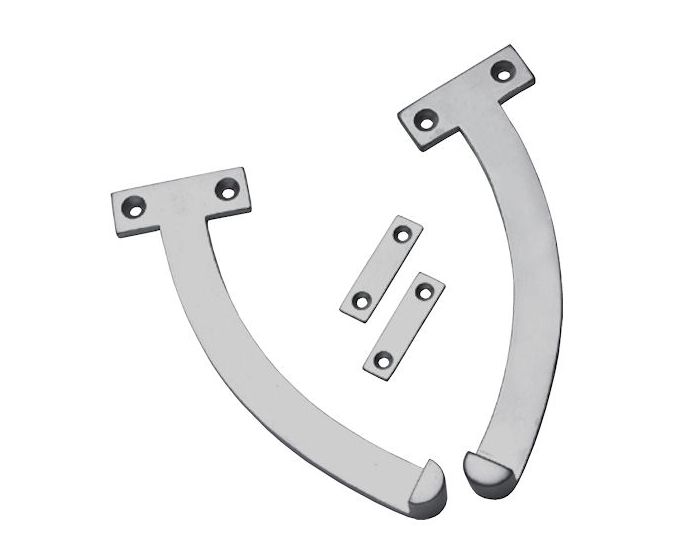

main product photo

Skip to the beginning of the images gallery

Fixed Quadrant Arm Stays For Fanlight Windows - Satin Chrome

Catalogue Number:

21588

Full Description

Product Name Price Qty

21588.2 - Fixed Quadrant Arm Stays For Fanlight Windows - Satin Chrome - 204mm - Pair

£22.10 £18.42

Per Pair

21588.1 - Fixed Quadrant Arm Stays For Fanlight Windows - Satin Chrome - 152mm - Pair

£17.09 £14.24

Per Pair

Fixed quadrant arm stays for fanlight windows
The quadrant arms are fixed in position so when the fanlight is closed the stays will remain in position projecting from the window - SEE BELOW DIAGRAM
When the fanlight window is in the open position it rests on the quadrant stays and restricts the window from opening too far - SEE BELOW DIAGRAM

Finish

Matt chrome

Dimensions

Available in two lengths

21588.1 - 152mm
21588.2 - 203mm

Diagram showing sizes and dimensions of a fanlight quadrant stay for a fan light window

	21588.1	21588.2	Dimension On Diagram
Length Of Quadrant Stay	152mm	204mm	A
Height	40mm	55mm	B
Backplate Size	45mm x 17mm	45mm x 17mm	C
Tag Length	13mm	13mm	D
Thickness	4mm	4mm	E
Strike Plate	36mm x 10mm	36mm x 10mm	F

Important Info Before You Buy

Suitable for use on bottom hinged, opening inward wooden fanlight windows
Comes supplied with strike plate to help protect fanlight window
SOLD PER PAIR (2 Quadrant Stays)

Download PDF Data Sheet

More Information
Item	21588
Item Code	21588
Finish	Satin Chrome
Sold Per	Pair
Availability	Stock item - please allow 1-3 days for delivery

Stock item - please allow 1-3 days for delivery
