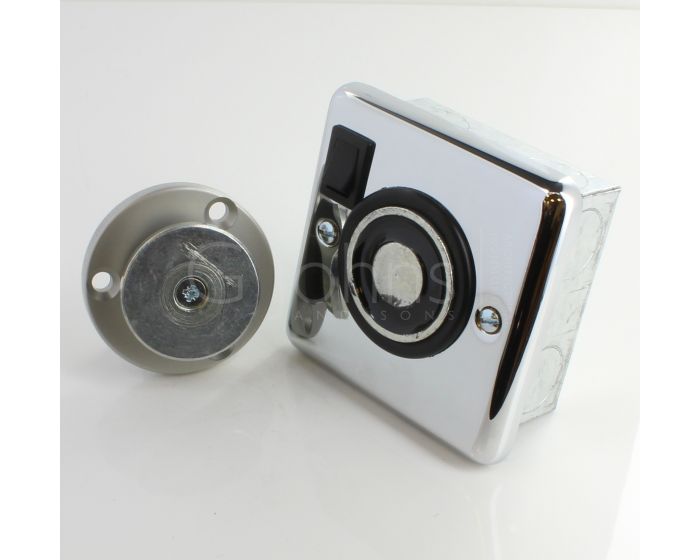

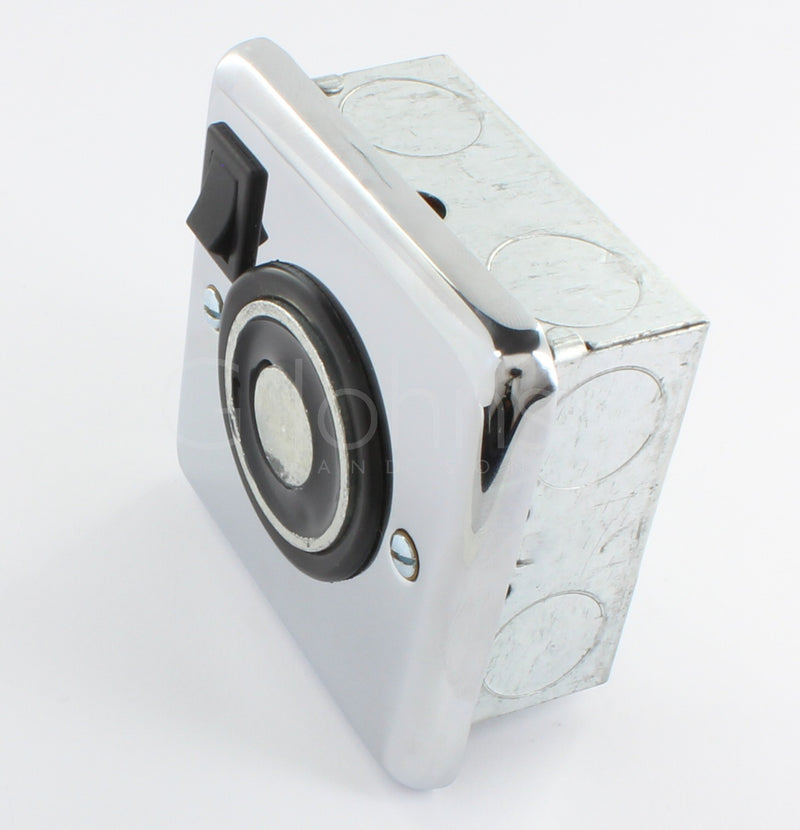

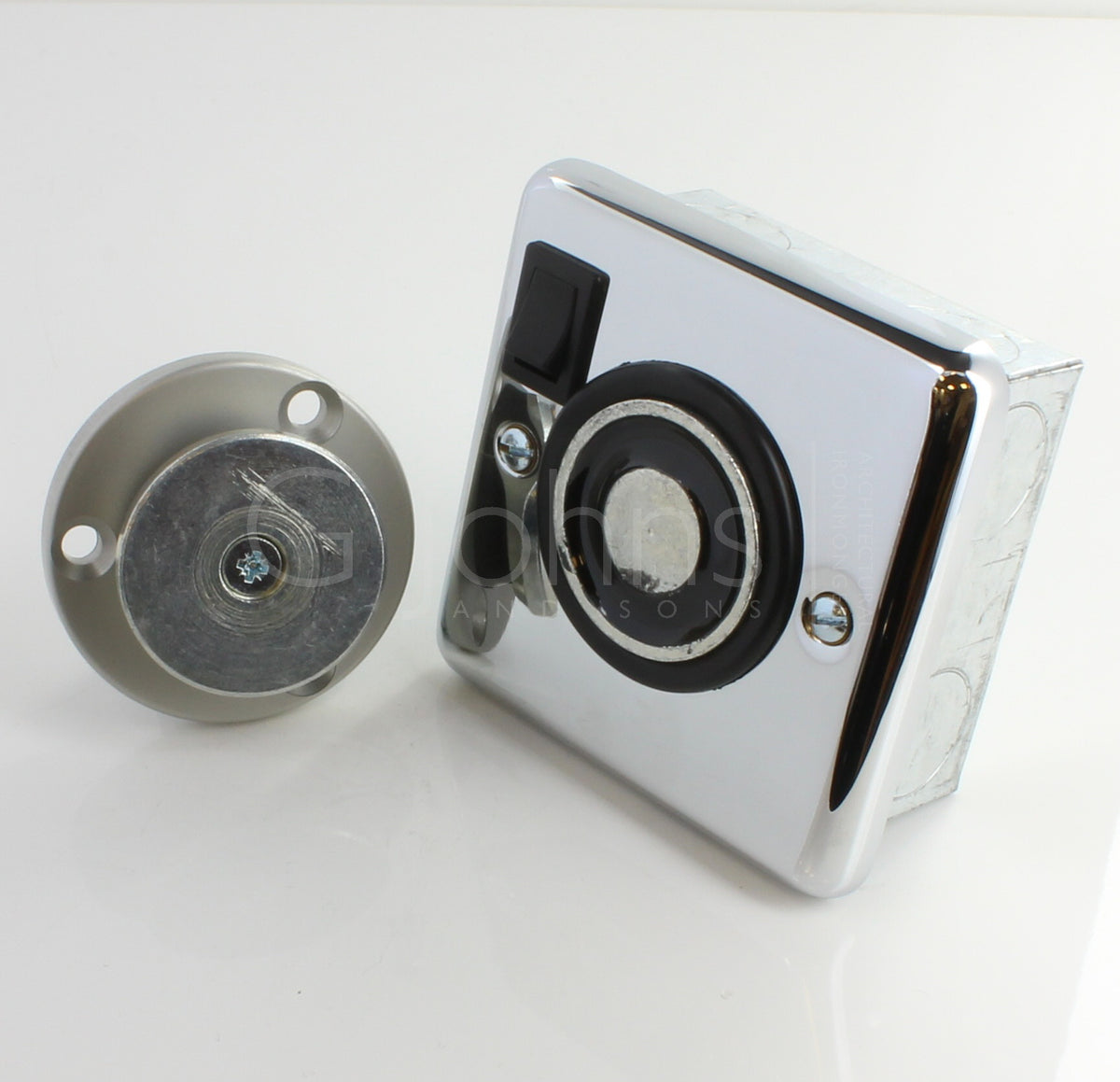

Flush Mounted Electro-Magnetic Fire Door Holder - 24v DC - With Manual On / Off Switch - Supplied With Armature Plate - Polished Chrome
Catalogue Number:
43502
Polished chrome finish electro-magnetic door holder.
Flush mounted, back box is designed to be rebated into the wall.
The use of the Electro-magnetic door holder is the only safe and legally compliant way (with respect to ADM and BS 8300) to hold fire doors open within a building.
The Wall Magnet is also linked directly to the buildings Fire Detection system so that in the event of a fire, all doors are automatically released from the hold open position and shut to prevent the spread of fire and smoke throughout the building.
Specification: Electro-Magnetic Door Holder; Incorporating a manual On / Off switch; Designed to be surface mounted to a wall; Can be fitted direct to walls or floor mounted
|
Standard Voltage |
24 Volt DC |
|
Resistance |
330 0hms |
|
Power |
1.75 Watts |
|
Power Range Suitability |
3-7 in accordance with BS EN 1154 |
|
|
Width |
Height |
Depth |
|
Box Dimensions |
86 mm |
86 mm |
52mm |
|
Armature Dimensions |
57 mm |
57 mm |
19 mm |
Material: Manufactured from British Extruded Aluminium and British Steel
Fire Tested: 120 Minutes
|
Standards |
|
|
BSEN 1155 (Electrical) |
BSEN 1154 (Mechanical) |
|
BSEN 1634 (Fire Test) |
BS8300 (Ease of Access) |
|
CE Marked / UKCA Marked |
|
Finish - polished chrome face plate
| Item | 43502 |
|---|---|
| Item Code | 43502 |
| Finish | Polished Chrome Face Plate With Zinc Plated Armature Plate |
| Dimensions | 86mm x 86mm x 52mm |
| Fire Rated | FD30 / FD60 - Fire Rated |
| Sold Per | Each |
| Availability | Non stock product - please allow 3-7 days for delivery |
Non stock product - please allow 3-7 days for delivery
-
