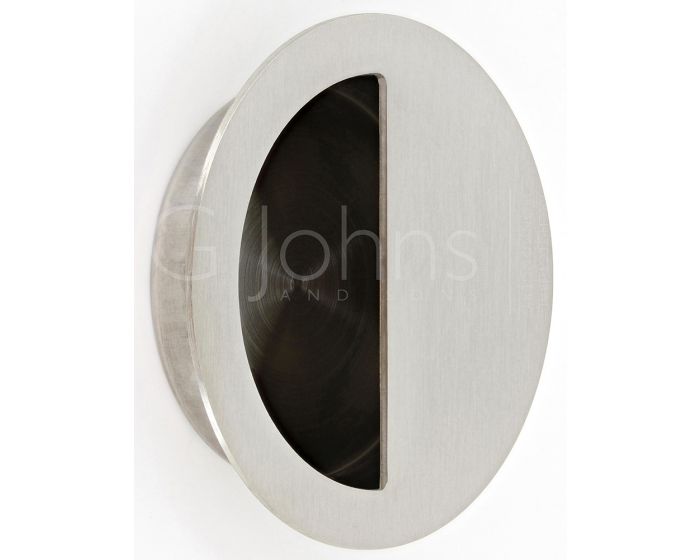

Circular Flush Pull Handle With Semi Circle Half Moon Grip - Tested For Use On FD30 Fire Doors - Satin Stainless Steel

Catalogue Number:
20658
Full Description
Product Name Price Qty
20658.1 - Circular Flush Pull Handle With Semi Circle Half Moon Grip - Tested For Use On FD30 Fire Doors - 89mm Diameter - Satin Stainless Steel
£12.65 £10.54

Per Each
Enquire Now

Contemporary design circular shape flush fitting, inset pull handle with half moon grip, ideal for use with sliding doors.

  • Made from stainless steel this item is a satin (brushed) finish.
  • Available in one size only - 89mm diameter.
  • This item has to be morticed (cut) into the door to allow it to sit fit flush.
  • Suitable for use on full height sliding doors, wardrobe doors and cupboard doors.
  • Sleek minimal look thanks to discreet fixings. - (This item is fixed via wood screws from inside the recess.)
  • Test for use on FD30 timber fire doors (please check test evidence of your fire door for compatibility).

Size Details

Diagram-Showing Dimensions Of The FPH1000 Contemporary Design Rectangular Shape Flush Fitting Pull Handle.



Item Code Diameter Opening Size Recess Depth Recess Diameter Backplate Thickness
20658.1 89mm 35mm 18mm 70mm 2mm

Base Material

  • Made from stainless steel.

Finish Details

  • Satin stainless steel - a grey colour with very slight golden undertones. The raw stainless steel has been satinised "brushed" to produce visible brush marks in the surface of the item.
  • For more information and how to care for this finish please see our Product Finish Guide

Alternative Finishes Available

  • Polished stainless steel - (Shiny finish).

Fixings

  • This handle is fitted via 2 x wood screws inside the recess of the handle.
  • Screws are supplied with this item.

Usage

  • Suitable for internal or external use.
  • To fit this handle completely flush a minimum door thickness of 18mm is required.

Unit Of Sale

  • This item is sold individually - (Each)
More Information
Item 20658
Item Code 20658
Finish Satin Stainless Steel
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
