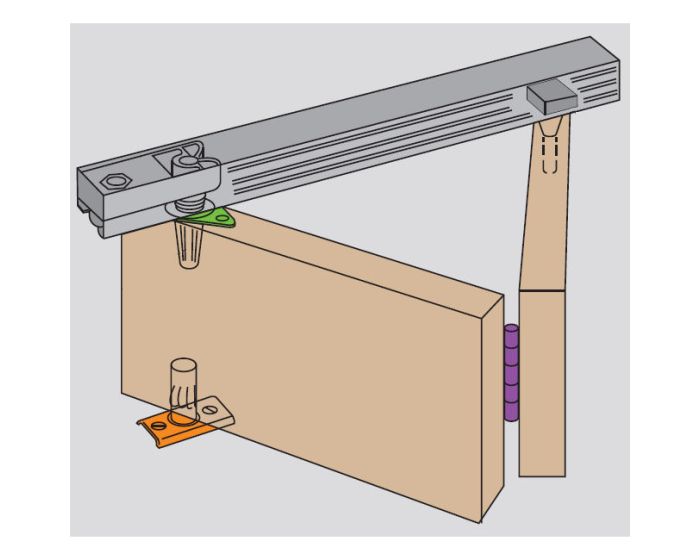

main product photo

Bifold Door Gear System For Bi-Folding Wardrobe & Cupboard Doors Up To 35mm Thick & 14kg In Weight

Catalogue Number:
31277
Full Description
Product Name Price Qty
31277.1 - BiFold Door Gear For Cupboards - For Door Leafs Up to 530mm Wide - 1067mm Track Length - 2 Leafs
£55.39 £46.16

Per Kit
31277.2 - BiFold Door Gear For Cupboards - For Door Leafs Up to 381mm Wide - 1500mm Track Length - 4 Leafs
£95.64 £79.70

Per Kit
31277.3 - BiFold Door Gear For Cupboards - For Door Leafs Up to 530mm Wide - 2134mm Track Length - 4 Leafs
£102.90 £85.75

Per Kit
Add to Mood Board
Enquire Now
  • The Henderson Bi-fold range offers a stable, silent and smooth-opening folding systems for light weight folding wardrobe and cupboard doors.
  • The Bifold can support a maximum leaf weight of 14kg and door thickness's of between 20-35mm. A range of kits are available to suit a maximum opening of 2134mm
  • Silent and easy to fix - nylon spring-loaded guides with attractive aluminium top track
  • Aluminium track provides a durable, long lasting finish. - No bottom track required.
  • Kits contain an aluminium top track with fittings and spring loaded guides which complete this low maintenance system.
  •  Supplied with brass hinges as standard, alternative finishes can be purchased separately.



Kits Available To Suit Two Leaf Bi-Folding Door Systems

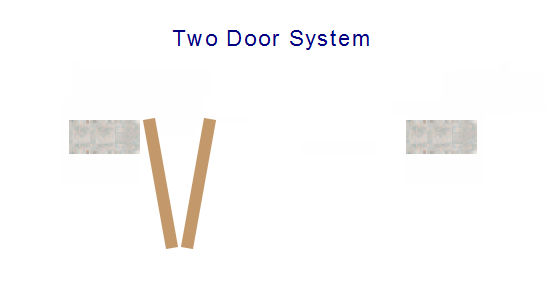

Diagram showing A two door Bi-Folding Door Layout



Kits Available To Suit Four Door Bi-Folding Door Systems

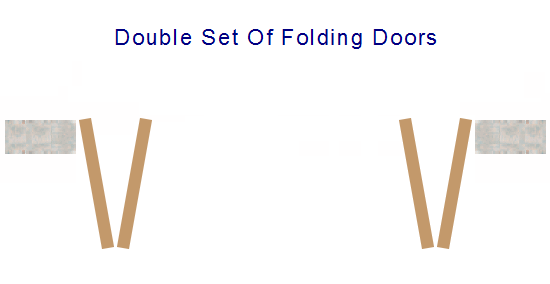

Diagram Showing Four Door Bi-Folding Door System

Track Lengths Available

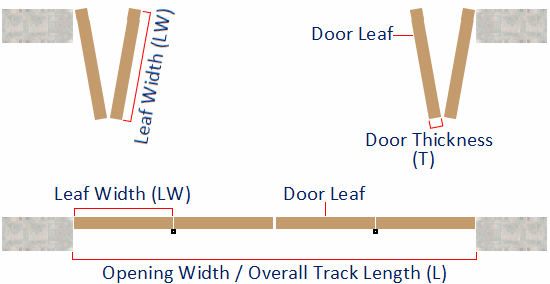

Diagram Showing The Dimensions Required To Measure Up For Bi-Folding Door Gear

Item Code Overall Track Length (L) To Suit No. Of Door Leafs Max Leaf Width (LW) Max Door Weight Min Door Thickness (T) Max Door Thickness (T)
31277.1 1067mm 2 530mm 14kg 18mm 35mm
31277.2 1500mm 4 381mm 14kg 18mm 35mm
31277.3 2134mm 4 530mm 14kg 18mm 35mm

Diagram showing dimensions of the Henderson Bi-Fold Door Gear Kit



Fixing Options

  • Designed to be ceiling / soffit mounted.

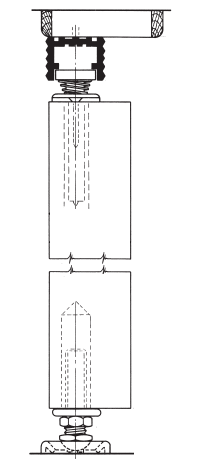

Diagram Showing How The Henderson BiFold Door Gear System Is Ceiling Mounted

Items Included Within The Henderson Bi-Folding Door Kit

  • Top track
  • Top pivot sockets
  • Top pivots
  • Guides
  • Brass hinges
  • Adjustable bottom pivot assembly
Download PDF Data Sheet
More Information
Item 31277
Item Code 31277
Finish Aluminium Track
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 2-3 working days for delivery
Non stock product - sent direct from factory - please allow 2-3 working days for delivery
