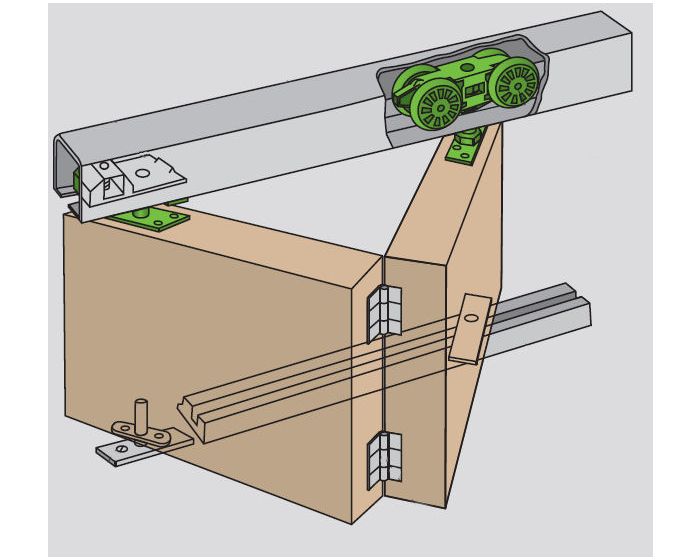

Husky 40 - Folding Door Gear System For Bi-Folding Heavy Weight 40kg Internal Doors Up To 44mm Thick

Catalogue Number:
31281
Full Description
Product Name Price Qty
31281.1 - Bi-Folding Door Gear For 40kg Internal Doors - Widths Up To 750mm - Track Length 1500mm - 2 Door Leafs
£158.59 £132.16

Per Kit
31281.2 - Bi-Folding Door Gear For 40kg Internal Doors - Widths Up To 750mm - Track Length 3000mm - 4 Door Leafs
£265.39 £221.16

Per Kit
Enquire Now
  • The Husky 40 Folding door system provides a simple and flexible solution for both medium and heavy weight residential Bi-folding doors and room dividers.
  • Designed for use with internal timber doors.
  • Needle roller beaing hangers provide smooth, quite operation.
  • The Henderson Husky Folding 40 can support doors of up to 40kg in weight and 750mm wide with the help of the floor channel guide included in the pack.
  •  Concealed fixings and robust floor gear allow the partitions to be neatly stacked to one side of the opening.
  • Silent and easy to fix with attractive aluminium top track.
  •  Supplied with zinc plated hinges as standard, alternative finishes can be purchased separately.





Kits Available To Suit Two Leaf Bi-Folding Door Systems

Diagram showing A two door Bi-Folding Door Layout



Kits Available To Suit Four Door Bi-Folding Door Systems

  • Please note the 4 door kit will only allow for all 4 doors to fold in one direction (as shown in the diagram below).
  • If you require 2 doors to fold to the left and 2 doors to fold to the right please contact us as additional items will need to be purchased.

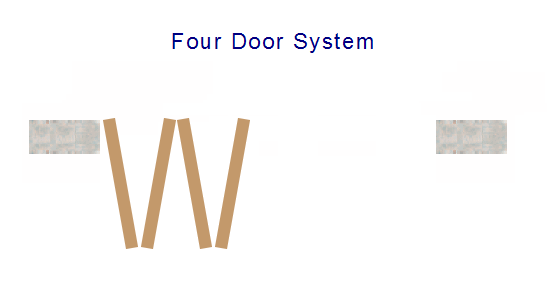

Diagram Showing Four Door Bi-Folding Door System

Track Lengths Available

Diagram Showing The Dimensions Required To Measure Up For Bi-Folding Door Gear

Item CodeOverall Track Length (L)To Suit No. Of Door LeafsMax Leaf Width (LW)Max Door WeightMin Door Thickness (T)Max Door Thickness (T)
31281.1 1500mm 2 750mm 40kg 20mm 44mm
31281.2 3000mm 4 750mm 40kg 20mm 44mm

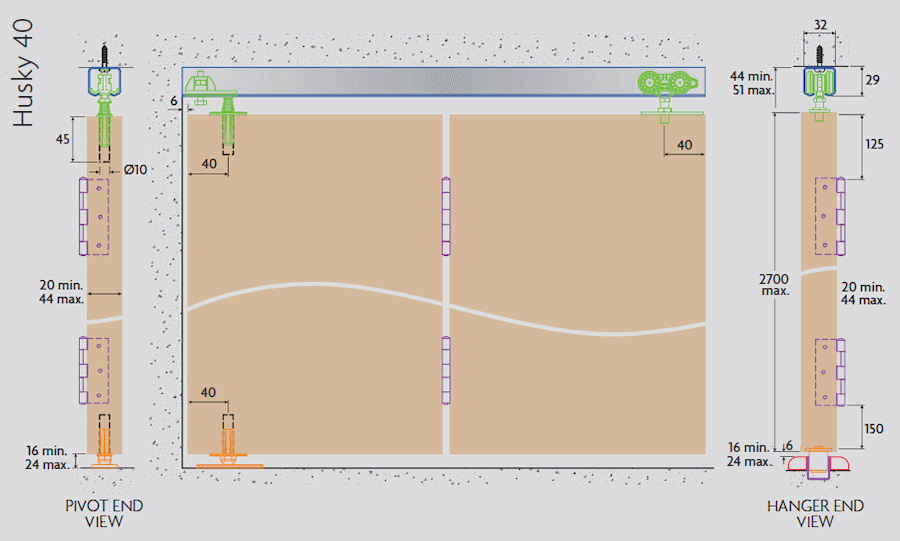

Diagram showing dimensions of the Henderson Husky 40 Bi-Fold Door Gear Kit



Fixing Options

  • This folding door kit can be ceiling / soffit mounted or face fixed to a wall.

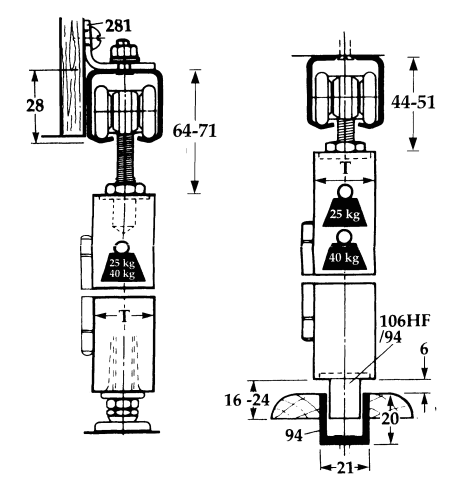

Diagram Showing How The Henderson Husky 25 Bi-Folding Door Gear System Is Ceiling Mounted

Items Included Within The Henderson Husky 40 Folding Door Kit

  • Top track
  • Top and bottom pivots for fixing into the end panel
  • Channel guide and bottom channel
  • Needle roller bearing hangers
  • Roller guide
  • Zinc plated hinges
  • Adjustable bottom pivot assembly
More Information
Item 31281
Item Code 31281
Finish Aluminium Track
Sold Per Kit
Availability Non stock product - sent direct from factory - please allow 2-3 working days for delivery
