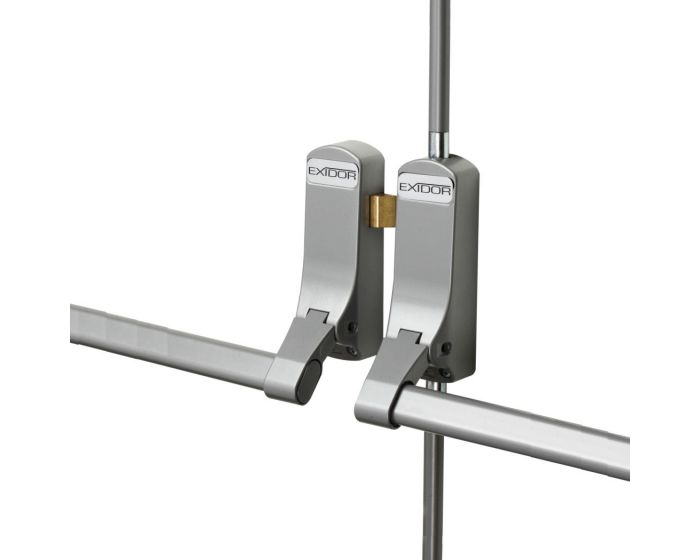

Horizontal Bar Panic Bolt & Latch Set - For Double Rebated Fire Escape Doors - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30764
Full Description
Product Name Price Qty
30764.1 - Horizontal Bar Panic Bolt & Latch Set - For DOUBLE REBATED Fire Escape Doors
£199.37 £166.14

Per Each
Add to Mood Board
Enquire Now
  • The Exidor 285 is an elegant and highly functional panic bolt set for use on a pair of double rebated fire escape and emergency exit doors.

  • Double rebated door kit includes
  • - 1x Horizontal panic bar with top and bottom vertical shoot bolts.
  • - 1x Horizontal panic bar latch set.
  • - 1x Double door receiver plate for panic latch set.

  • From the Exidor 200 range.

  • Silver (SE) finish.

  • Tested to BS EN 1125 this emergency exit hardware is suitable for use on fire exit and fire escape doors in public buildings and public areas including - schools, hospitals, churches, shopping centers or any area which may hold 60 people or more.

  • Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

  • Incorporated as standard is an automatic top trip which will hold the bolts "in" once the door has been opened and stops the bottom shoot from rubbing along the floor. Once the door is closed the top trip releases the bolts automatically back into their receiver plates to secure the door closed.

  • The main body is fitted with an anti-thrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.

  • Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

  • Surface mounted with closed arm design.

    • Finish Details

  • Silver (SE) finish.

    • Alternative Finishes Available

  • RAL colours including white, black, blue, green and red. - Available to special order.
  • Plated Finish including stainless steel effect and brass effect - Available to special order.
  • Please contact us for prices and lead times for special order Finish.

    • Operation

  • When pressure is applied at any point along the horizontal bar of the panic latch (located on the first opening door leaf) this door only will open.
  • When pressure is applied at any point along the horizontal bar of the panic bolt (located on the slave door leaf) then this will force both doors to open at once.
  • When the slave door is closed again the top trip (supplied) automatically releases the vertical bolts back into their receiver plates to secure the door closed. When the 1st opening door is closed the panic latch engages into a receiver plate mounted onto the slave door.

    • Usage

  • This Exidor 285 is suitable for use on a pair of double rebated, wooden fire exit doors.
  • Suitable for doors up to 2440mm high.
  • Suitable for doors up to 1220mm wide.
  • BS EN 1125 and the code of practice of fire escape doors state that horizontal panic bars must cover at least 60% of the door width.
  • For taller or wider doors - longer horizontal bars and longer top shoot tubes are available to special order.

    • Diagram showing the Exidor 285 panic bolt & latch set fitted to a pair of double rebated doors


  • Below diagram shows the top trip and top bolt receiver plate fitted to the top of the door frame.

    • Diagram showing the Exidor top trip and top bolt receiver plate


  • Below diagram shows the floor mounted bolt receiver plate which the bottom bolt engages into.

    • Diagram showing the Exidor floor mounted receiver plate for the bottom bolt


    Dimensions

  • Body Height - 159mm
  • Body Width - 55mm
  • Projection Form Door - 100mm (Grade 2)
  • Max Door Height - 2440mm
  • Max Door Width - 1220mm

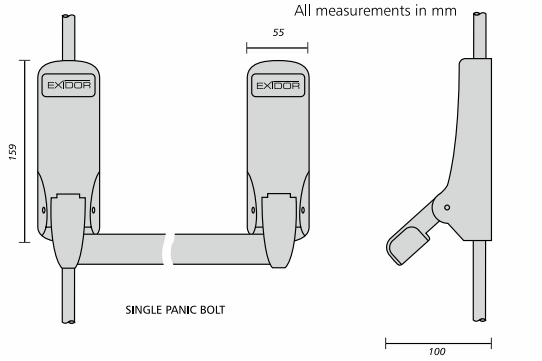

    • Diagram showing dimensions of the Exidor 294 panic bolt set

  • Diagram showing dimensions of the Exidor 296 panic latch set

    • Fixings

  • Comes supplied with
  • - 1x Horizontal panic bar with top and bottom vertical shoot bolts.
  • - 1x Horizontal panic bar latch set.
  • - 1x Double door receiver plate for panic latch set.
  • - Fixings to suit wooden doors.
  • - Top trip and easy clean floor socket.
  • - Adjustable top and bottom shoots.
  • - "Push Bar To Exit" sign.

    • Standards This Product Conforms To

  • CE Marked / UKCA Marked
  • Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.
  • Suitable for use in public buildings and public areas.
  • Tested to BS EN 1125 2008 - Panic exit devices operated by a horizontal bar, for use on escape routes. - Classification number - 376B1322AA
  • Please see technical tab above for more details on this classification number.
  • Certificates available on request.

    • Optional extras available to suit this item

  • Pullman latches (to replace the top and bottom shoot bolts ideal for high use areas.)
  • Outside access devices (knob operated (Exidor 302) or lever operated (Exidor 322).
  • Dogging device (to leave the bolts held so the door is "unlatched")
  • Alarm box (sounds an alarm is horizontal bar is pressed.)
  • Metal door version available to special order.

    • Unit Of Sale

  • Kit - one "Kit" contains 1 panic bolt set + 1 panic latch set to suit a pair of wooden rebated double doors.
    • Download PDF Data Sheet
    More Information
    Item 30764
    Item Code 30764
    Finish Silver
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Kit - ( To Suit One Pair Of Double Rebated Doors )
    Availability Non stock product - please allow 3-7 days for delivery
    Declaration Of Performance - DoP Certificate - For Exidor Panic Hardware Sets (758.98 kB)
    Certifire CF389 Certificate - For Exidor 200 Series Panic Bar Sets Tested To EN 1125 (356.33 kB)
    Non stock product - please allow 3-7 days for delivery
