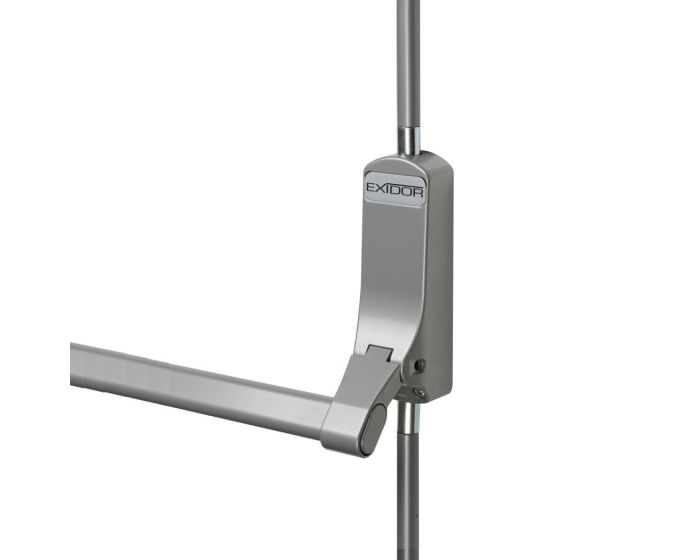

main product photo

Horizontal Bar Panic Bolt Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30763
Full Description
Product Name Price Qty
30763.1 - Horizontal Bar Panic Bolt Set - For SINGLE Fire Escape Exit Doors
£119.16 £99.30

Per Each
Add to Mood Board
Enquire Now
  • The Exidor 294 is an elegant and highly functional panic bolt set for use on single fire escape and single emergency exit door applications.

  • Horizontal panic bar design with top and bottom vertical shoot bolts.

  • From the Exidor 200 range.

  • Silver (SE) finish.

  • Tested to BS EN 1125 this emergency exit hardware is suitable for use on fire exit and fire escape doors in public buildings and public areas including - schools, hospitals, churches, shopping centers or any area which may hold 60 people or more.

  • Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

  • Incorporated as standard is an automatic top trip which will hold the bolts "in" once the door has been opened and stops the bottom shoot from rubbing along the floor. Once the door is closed the top trip releases the bolts automatically back into their receiver plates to secure the door closed.

  • The main body is fitted with an anti-thrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.

  • Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

  • Surface mounted with closed arm design.

    • Finish Details

  • Silver (SE) finish.

    • Alternative Finishes Available

  • RAL colours including white, black, blue, green and red. - Available to special order.
  • Plated Finish including stainless steel effect and brass effect - Available to special order.
  • Please contact us for prices and lead times for special order Finish.

    • Operation

  • When pressure is applied at any point along the horizontal bar the door will open.
  • When the door is closed again the top trip (supplied) automatically releases the vertical bolts back into their receiver plates to secure the door closed.

    • Usage

  • This Exidor 294 is suitable for use on single, wooden fire exit doors.
  • Suitable for doors up to 2440mm high.
  • Suitable for doors up to 1220mm wide.
  • BS EN 1125 and the code of practice of fire escape doors state that horizontal panic bars must cover at least 60% of the door width.
  • For taller or wider doors - longer horizontal bars and longer top shoot tubes are available to special order.

    • Diagram showing the Exidor 294 panic bolt set fitted to a single door


    Dimensions

  • Body Height - 159mm
  • Body Width - 55mm
  • Projection Form Door - 100mm (Grade 2)
  • Max Door Height - 2440mm
  • Max Door Width - 1220mm

    • Diagram showing dimensions of the Exidor 294 panic bolt set

    Fixings

  • Comes supplied with
  • - Fixings to suit wooden doors.
  • - Top trip and easy clean floor socket.
  • - Adjustable top and bottom shoots.
  • - "Push Bar To Exit" sign.

    • Standards This Product Conforms To

  • CE Marked / UKCA Marked
  • Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.
  • Suitable for use in public buildings and public areas.
  • Tested to BS EN 1125 2008 - Panic exit devices operated by a horizontal bar, for use on escape routes. - Classification number - 376B1322AA
  • Please see technical tab above for more details on this classification number.
  • Certificates available on request.

    • Optional extras available to suit this item

  • Pullman latches (to replace the top and bottom shoot bolts ideal for high use areas.)
  • Outside access devices (knob operated (Exidor 302) or lever operated (Exidor 322).
  • Dogging device (to leave the bolts held so the door is "unlatched")
  • Alarm box (sounds an alarm is horizontal bar is pressed.)
  • Metal door version available to special order.

    • Unit Of Sale

  • Each - one item contains 1 panic bolt set to suit 1x single wooden door.
    • Download PDF Data Sheet
    More Information
    Item 30763
    Item Code 30763
    Finish Silver
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Each - ( To Suit 1 x Single Door )
    Availability Non stock product - please allow 3-7 days for delivery
    Declaration Of Performance - DoP Certificate - For Exidor Panic Hardware Sets (758.98 kB)
    Certifire CF389 Certificate - For Exidor 200 Series Panic Bar Sets Tested To EN 1125 (356.33 kB)
    Non stock product - please allow 3-7 days for delivery
