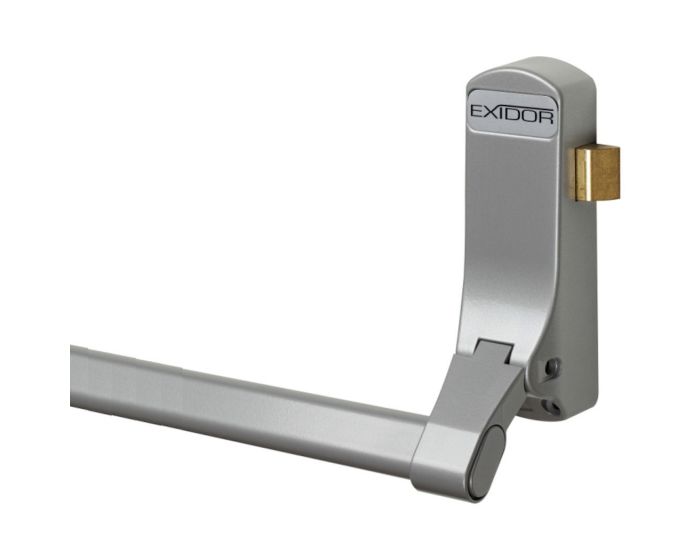

main product photo

Horizontal Bar Panic Latch Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30765
Full Description
Product Name Price Qty
30765.1 - Horizontal Bar Panic Latch Set - For SINGLE Fire Escape Exit Doors
£88.94 £74.12

Per Each
Add to Mood Board
Enquire Now
  • The Exidor 296 is an elegant and highly functional panic latch set for use on single fire escape and single emergency exit door applications.

  • Horizontal panic bar design with 1 point basic locking via a horizontal simple latch.

  • From the Exidor 200 range.

  • Supplied with receiver plate for frame (for latch to engage into.)

  • Silver (SE) finish.

  • Tested to BS EN 1125 this emergency exit hardware is suitable for use on fire exit and fire escape doors in public buildings and public areas including - schools, hospitals, churches, shopping centers or any area which may hold 60 people or more.

  • Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

  • Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

  • Surface mounted with closed arm design.

    • Finish Details

  • Silver (SE) finish.

    • Alternative Finishes Available

  • RAL colours including white, black, blue, green and red. - Available to special order.
  • Plated Finish including stainless steel effect and brass effect - Available to special order.
  • Please contact us for prices and lead times for special order Finish.

    • Operation

  • When pressure is applied at any point along the horizontal bar the latch is released and the door will open.
  • When the door is closed again the latch rides back into the receiver plate mounted on the frame to secure the door closed.

    • Usage

  • This Exidor 296 is suitable for use on single, wooden fire exit doors.
  • Suitable for doors up to 1220mm wide.
  • BS EN 1125 and the code of practice of fire escape doors state that horizontal panic bars must cover at least 60% of the door width.
  • For wider doors longer horizontal bars are available to special order.

    • Diagram showing the Exidor 296 panic latch set fitted to a single door


    Dimensions

  • Body Height - 159mm
  • Body Width - 55mm
  • Projection Form Door - 100mm (Grade 2)
  • Max Door Width - 1220mm

    • Diagram showing dimensions of the Exidor 296 panic latch set

    Fixings

  • Comes supplied with
  • - Fixings to suit wooden doors.
  • - Receiver plate for mounting to frame.

    • Diagram showing the receiver plate supplied with the Exidor 296 panic latch set

  • - "Push Bar To Exit" sign.

    • Standards This Product Conforms To

  • CE Marked / UKCA Marked
  • Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.
  • Suitable for use in public buildings and public areas.
  • Tested to BS EN 1125 2008 - Panic exit devices operated by a horizontal bar, for use on escape routes. - Classification number - 376B1322AA
  • Please see technical tab above for more details on this classification number.
  • Certificates available on request.

    • Optional extras available to suit this item

  • Outside access devices (knob operated (Exidor 302) or lever operated (Exidor 322).
  • Metal door version available to special order.

    • Unit Of Sale

  • Each - one item contains 1 panic bolt set to suit 1x single wooden door.
    • Download PDF Data Sheet
    More Information
    Item 30765
    Item Code 30765
    Finish Silver
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Each - ( To Suit 1 x Single Door )
    Availability Non stock product - please allow 3-7 days for delivery
    Declaration Of Performance - DoP Certificate - For Exidor Panic Hardware Sets (758.98 kB)
    Certifire CF389 Certificate - For Exidor 200 Series Panic Bar Sets Tested To EN 1125 (356.33 kB)
    Non stock product - please allow 3-7 days for delivery
