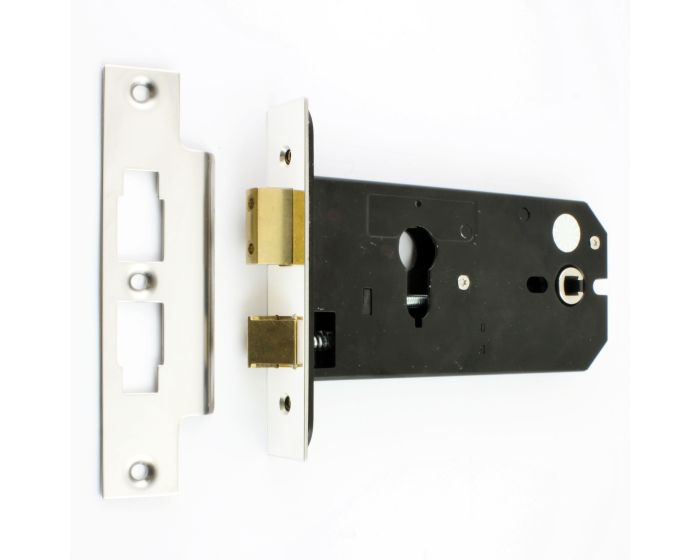

Horizontal Euro Profile Mortice Sash Lock - 152mm Case Depth - Polished Stainless Steel
Catalogue Number:
40746
- Horizontal Euro profile mortice sash lock case.
- Supplied with shiny finish polished stainless steel forend and strike plates.
- Large style lock case 152mm (6 inches) deep.
- Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.
- For use on doors that require door handles and need to be locked via a Euro profile cylinder.
- Must be used in conjunction with some form of door handle and Euro cylinder.
- Horizontal locks were a traditional lock often found in period properties.
- Cylinder hole is located to the side of door knobs rather than underneath.
- Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.
Operation
- Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).
- Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.
- Deadbolt is locked and un-locked via a Euro profile cylinder (sold separately).
Features
- Light to medium weight springing makes this lock ideal for use with door knobs.
- Two way action allows door knobs to be turned in both directions.
- Solid brass guided latch.
- Solid brass deadbolt with anti-saw rollers.
- Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
- 8mm x 8mm spindle follower (to suit standard UK size spindles).
- Latch can be reversed on site.
- Reversible frame mounted strike plate.
Security Level
- Medium security architectural range.
- Suitable for use on internal doors in residential or light commercial buildings.
Finish
- Polished stainless steel.
Alternative Finishes Available
- PVD brass.
- Satin stainless steel.
Dimensions
Available in one case size only.
| 40746.1 |
Dimension On Diagram
|
|
|
Overall Case Depth
|
152mm
|
A
|
|
Backset (Distance To Centre Of Spindle Hole)
|
127mm
|
B
|
|
Backset (Distance To Centre Of Key Hole)
|
50mm
|
C
|
|
Case Height
|
70mm
|
D
|
|
Forend - Height x Width
|
120mm x 25mm
|
E
|
|
Strike Plate - Height x Width
|
140mm x 25mm
|
F
|
Options Available To Order
- Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.
Rebate Kit For Double Rebated Doors
- 40831.1 - 13mm satin stainless steel rebate kit for use with the Zoo Hardware horizontal mortice locks.
- Please note the above rebate kit is a satin (brushed) stainless steel finish.
Unit Of Sale
- Each - (1 x lock case supplied with forend and strike plate).
| Item | 40746 |
|---|---|
| Item Code | 40746 |
| Finish | Polished Stainless Steel |
| Dimensions | 152mm Case Depth |
| Sold Per | Each |
| Availability | Stock item - please allow 1-3 days for delivery |
Stock item - please allow 1-3 days for delivery
-
