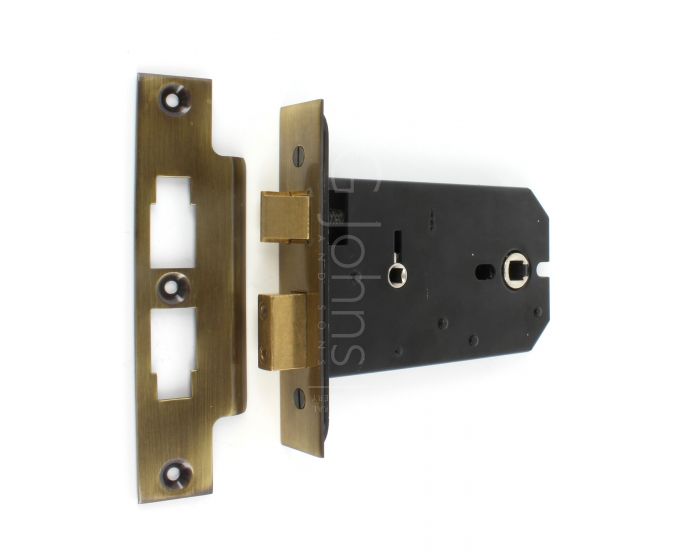

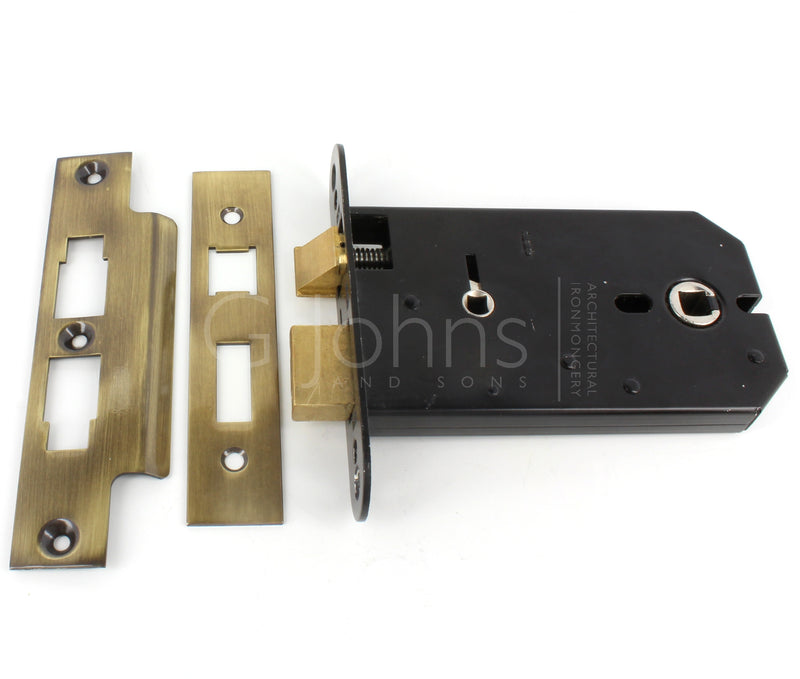

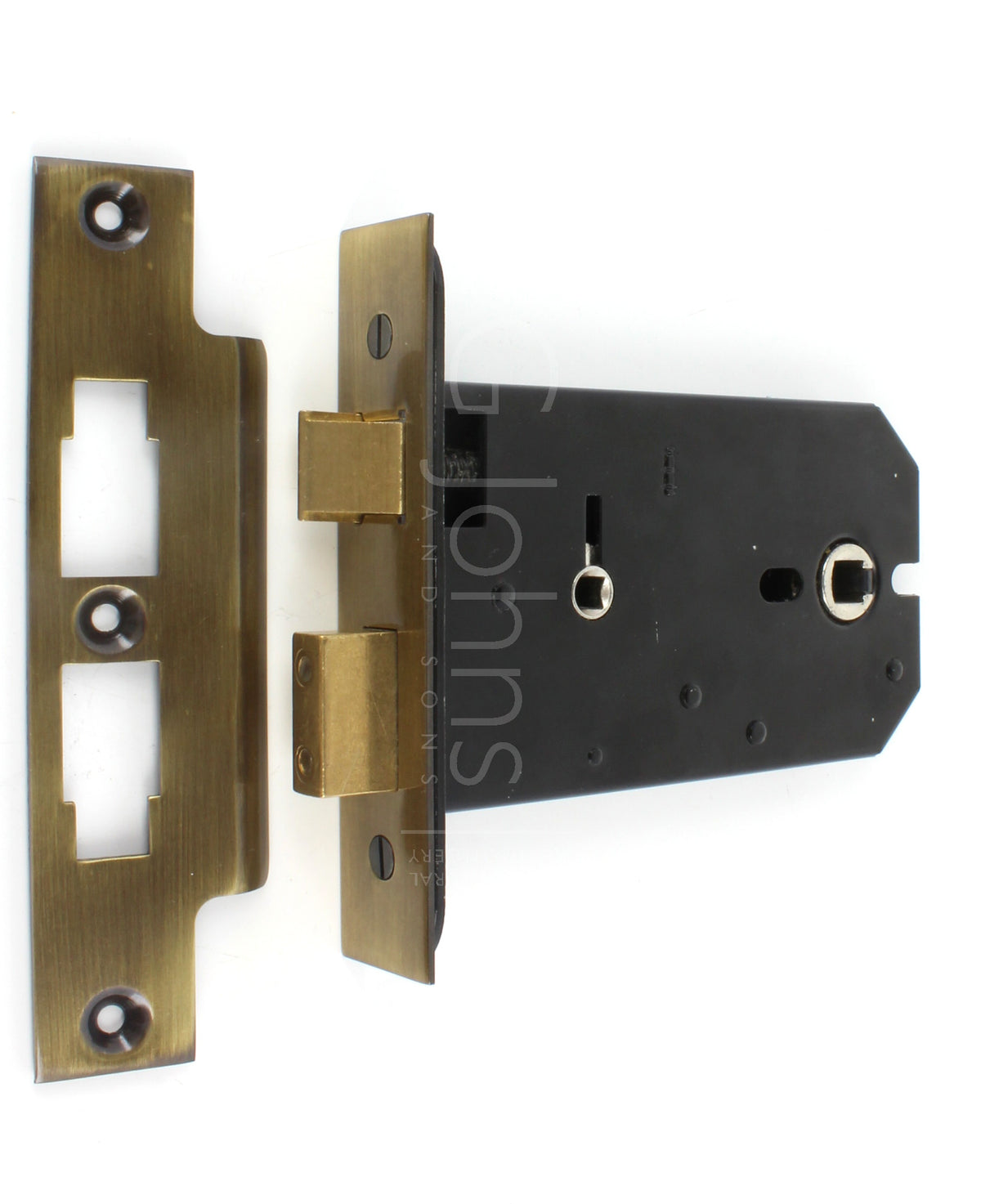

Horizontal Mortice Bathroom Lock - 127mm or 152mm Deep Case - Antique Brass
Catalogue Number:
43422
- Horizontal mortice bathroom lock with 5mm spindle for use with bathroom turn & release systems.
- Supplied with Florentine bronze (antique brass finish) forend and strike plates
- Large style lock case available in two sizes - 127mm (5 inches) or 152mm (6 inches) deep.
- Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.
- Horizontal locks were a traditional lock often found in period properties.
- Spindle hole for the turn & release is located to the side of door knobs rather than underneath.
- Thumbturn operated dead bolt.
- Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.
Operation
- Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).
- Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.
- Deadbolt is locked and un-locked via a bathroom thumbturn and release lock (sold separately).
Features
- Light weight springing makes this lock ideal for use with door knobs.
- Two way action allows door knobs to be turned in both directions.
- Solid brass guided latch.
- Solid brass deadbolt with anti-saw rollers.
- Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
- 8mm x 8mm spindle follower (to suit standard UK size spindles).
- Latch can be reversed on site without taking the lock case apart.
- Reversible frame mounted strike plate.
Security Level
- Low security architectural range.
- Suitable for use on internal doors in residential or light commercial buildings.
Finish
- Florentine bronze - (antique brass finish).
Alternative Finishes Available
- Satin stainless steel.
- Polished stainless steel.
- PVD brass.
Dimensions
Available in two sizes
- 43422.1- 127mm (5 inch)
- 43422.2- 152mm (6 inch)
|
43422.1
|
43422.2
|
Dimension On Diagram
|
|
| Overall Case Depth |
127mm
|
152mm
|
A
|
| Backset (Distance To centre Of Spindle Hole) |
101mm
|
127mm
|
B
|
| Backset (Distance To centre Of Key Hole) |
38mm
|
50mm
|
C
|
| Case Height |
70mm
|
70mm
|
D
|
| Forend - Height x Width |
120mm x 25mm
|
120mm x 25mm
|
E
|
Options Available To Order
- Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.
Unit Of Sale
- Each - (1 x lock case supplied with forend, strike plate).
| Item | 43422 |
|---|---|
| Item Code | 43422 |
| Finish | Antique Brass |
| Dimensions | 127mm or 152m Case Depth |
| Sold Per | Each |
| Availability | Stock item - please allow 1-3 days for delivery |
Stock item - please allow 1-3 days for delivery
-
