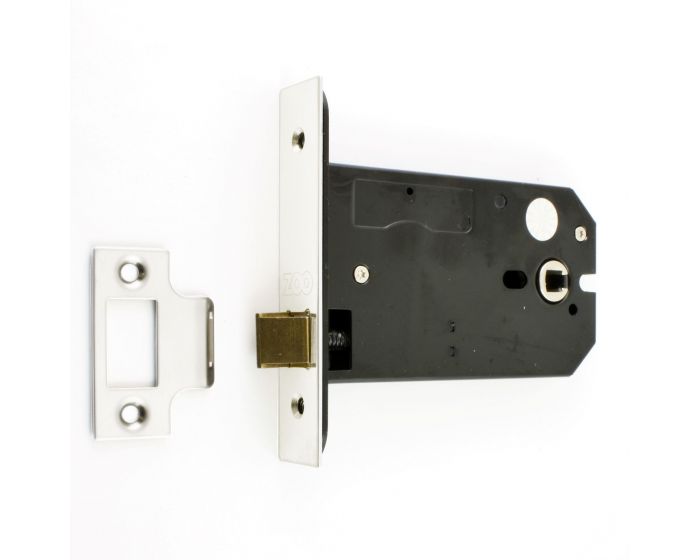

Horizontal Mortice Latch - Deep Case For Use With Door Knobs - Polished Stainless Steel
Catalogue Number:
40749
- Horizontal mortice latch.
- Supplied with shiny finish polished stainless steel forend and strike plates.
- Architectural quality.
- Large style lock case - 127mm (5 inches) or 152mm (6 inches) deep.
- Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.
- For use on doors that require door handles but do not need to be locked (latched only).
- Horizontal latches were a traditional lock often found in period properties.
- Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.
Operation
- Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).
- Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.
Features
- Light to medium weight springing makes this lock ideal for use with door knobs.
- Two way action allows door knobs to be turned in both directions.
- Solid brass guided latch.
- Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
- 8mm x 8mm spindle follower (to suit standard UK size spindles).
- Latch can be reversed on site.
- Reversible frame mounted strike plate.
- Suitable for use on internal doors in residential or light commercial buildings.
Finish
- Polished stainless steel - (shiny finish).
Alternative Finishes Available
- PVD brass.
- Satin stainless steel.
Dimensions
- 40749.1 - 127mm (5 inch)
- 40749.2 - 152mm (6 inch)
|
40749.1
|
40749.2
|
Dimension On Diagram
|
|
| Overall Case Depth |
127mm
|
152mm
|
A
|
| Backset (Distance To Centre Of Spindle Hole) |
101mm
|
127mm
|
B
|
| Case Height |
70mm
|
70mm
|
N/A
|
| Forend - Height x Width |
120mm x 25mm
|
120mm x 25mm
|
N/A
|
| Strike Plate - Height x Width |
58mm x 25mm
|
58mm x 25mm
|
N/A
|
Options Available To Order
- Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.
Rebate Kit For Double Rebated Doors
- 40831.1 - 13mm satin stainless steel rebate kit for use with the horizontal mortice locks.
- Please note the above rebate kit is a brushed satin stainless steel finish.
Unit Of Sale
- Each - (1 x latch case supplied with forend and strike plate).
| Item | 40749 |
|---|---|
| Item Code | 40749 |
| Finish | Polished Stainless Steel |
| Dimensions | 127mm or 152mm Case Depth |
| Sold Per | Each |
| Availability | Stock item - please allow 1-3 days for delivery |
Stock item - please allow 1-3 days for delivery
-
