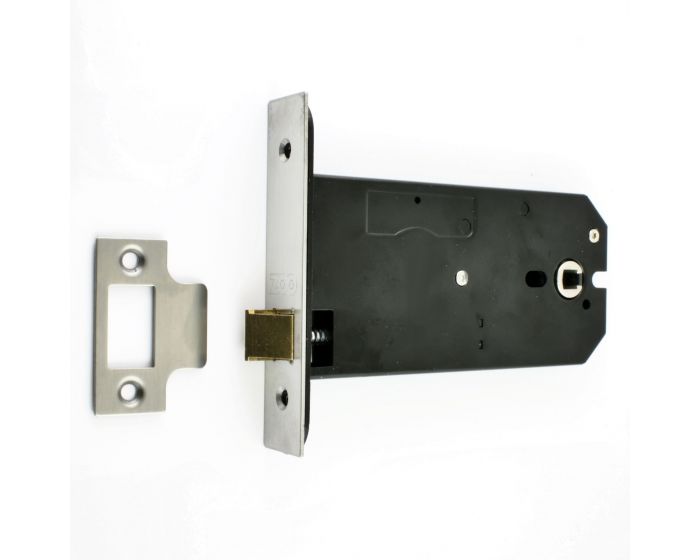

Horizontal Mortice Latch - Deep Case For Use With Door Knobs - Satin Stainless Steel

Catalogue Number:
40747
Full Description
Product Name Price Qty
40747.1 - Horizontal Mortice Latch - Satin Stainless Steel - 127mm Case Depth (101mm Backset) - Each
£27.86 £23.22

Per Each
40747.2 - Horizontal Mortice Latch - Satin Stainless Steel - 152mm Case Depth (127mm Backset) - Each
£27.86 £23.22

Per Each
Add to Mood Board
Enquire Now
  • Horizontal mortice latch.
  • Supplied with brushed finish satin stainless steel forend and strike plates.
  • Architectural quality.
  • Large style lock case - 127mm (5 inches) or 152mm (6 inches) deep.
  • Traditional horizontal style is ideal for mortice knobs as it places the knobs far away from the door frame.
  • For use on doors that require door handles but do not need to be locked (latched only).
  • Horizontal latches were a traditional lock often found in period properties.
  • Bolt through lock (38mm bolt holes) to suit bolt together handles and mortice knobs.


Operation

  • Latch is withdrawn via a mortice door knob or lever handle from either side of the door (handles sold separately).
  • Two way action allows un-sprung door knobs to be turned either way to withdraw the latch mechanism and open the door.

Features

  • Light to medium weight springing makes this lock ideal for use with door knobs.
  • Two way action allows door knobs to be turned in both directions.
  • Solid brass guided latch.
  • Bolt through facility for bolt together fixing lever handles and accessories at 38mm centres.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).
  • Latch can be reversed on site.
  • Reversible frame mounted strike plate.
  • Suitable for use on internal doors in residential or light commercial buildings.

Finish

  • Satin stainless steel - (brushed finish).



Alternative Finishes Available

  • PVD brass.
  • Polished stainless steel.

Dimensions

Diagram and dimensions of horizontal mortice latch
  • 40747.1 - 127mm (5 inch)
  • 40747.2 - 152mm (6 inch)
  40747.1 40747.2
Dimension On Diagram
Overall Case Depth
127mm
152mm
A
Backset (Distance To Centre Of Spindle Hole)
101mm
127mm
B
Case Height
70mm
70mm
N/A
Forend - Height x Width
120mm x 25mm
120mm x 25mm
N/A
Strike Plate - Height x Width
58mm x 25mm
58mm x 25mm
N/A

Options Available To Order

  • Intumescent sheets and lock case liners are available. Please see our intumescent fire rated products category for details.



Rebate Kit For Double Rebated Doors

  • 40831.1 - 13mm satin stainless steel rebate kit for use with the horizontal mortice locks.


Unit Of Sale

  • Each - (1 x latch case supplied with forend and strike plate).
Download PDF Data Sheet
More Information
Item 40747
Item Code 40747
Finish Satin Stainless Steel
Dimensions 127mm or 152mm Case Depth
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
