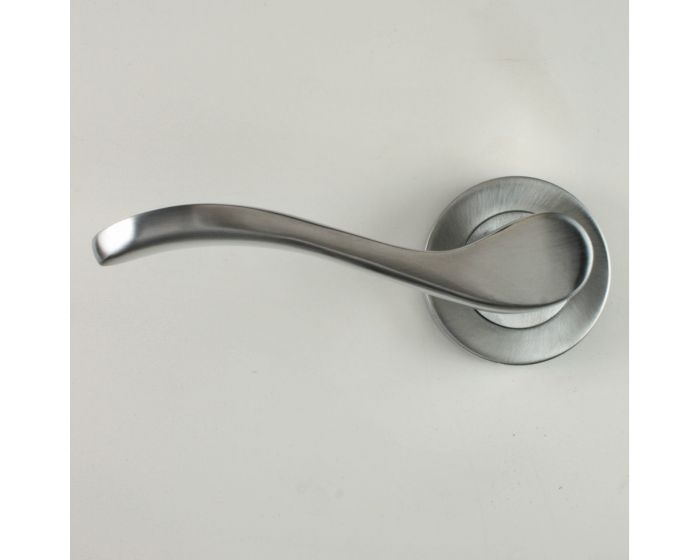

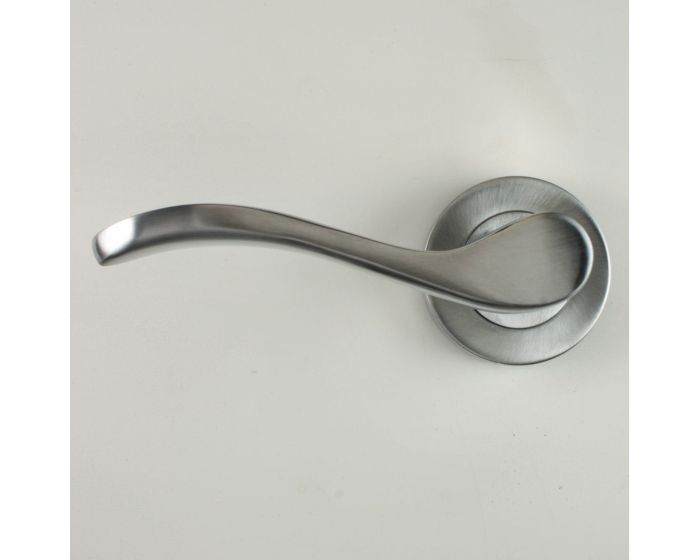

Turin Round Rose Lever Handles - Satin Chrome - Suitable For Use With FD30 / FD60 Fire Doors

• Turin lever handles from a classic design door handle set with scroll shape lever.

• Satin (brushed) chrome finish.

• Ideal for residential use.

• Screw on rose conceals bolt together fixings.

• Matching satin chrome accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors - 1 x (Pair) Lever Handles Only

• For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon - (key hole cover to suit regular "chubb style locks")


• Euro profile escutcheon - (key hole cover to suit euro profile cylinders)



• Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Finish Details

• Satin chrome finish - This item has been chrome plated and satinised to produce a matt brushed finish. Satin chrome is a grey colour with blue undertones and visible brush marks in the surface of the item.

Alternative Finishes Available

• Polished chrome
• Polished brass

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose Diameter - 50mm
• Rose Thickness - 10mm
• Lever Length - 115mm

Spindle Size

• 8mm x 8mm square - UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts.
• Screw on rose.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Comes supplied with male and female bolt through fixings and 8mm spindle.

Usage

• Suitable for residential use.
• Suitable for internal or external use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
