Square Shape Bathroom Hook Lock For Sliding Pocket Doors - With Turn And Release - Satin Stainless Steel

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Square Shape Bathroom Hook Lock For Sliding Pocket Doors - With Turn And Release - Satin Stainless Steel

Catalogue Number:

40862

Full Description

Product Name Price Qty

40862.1 - Square Bathroom Hook Lock With Turn And Release For Sliding Pocket Doors - Satin Stainless Steel - Set

£90.06 £75.05

Per Set

Flush fitting bathroom hook lock set for sliding pocket doors.

Square design flush pull handles.

Satin stainless steel finish.

Ideal for use on sliding bathroom and toilet doors.

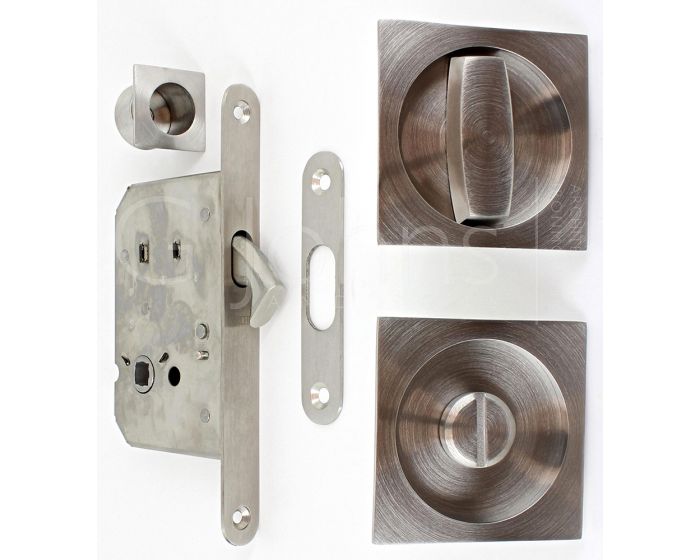

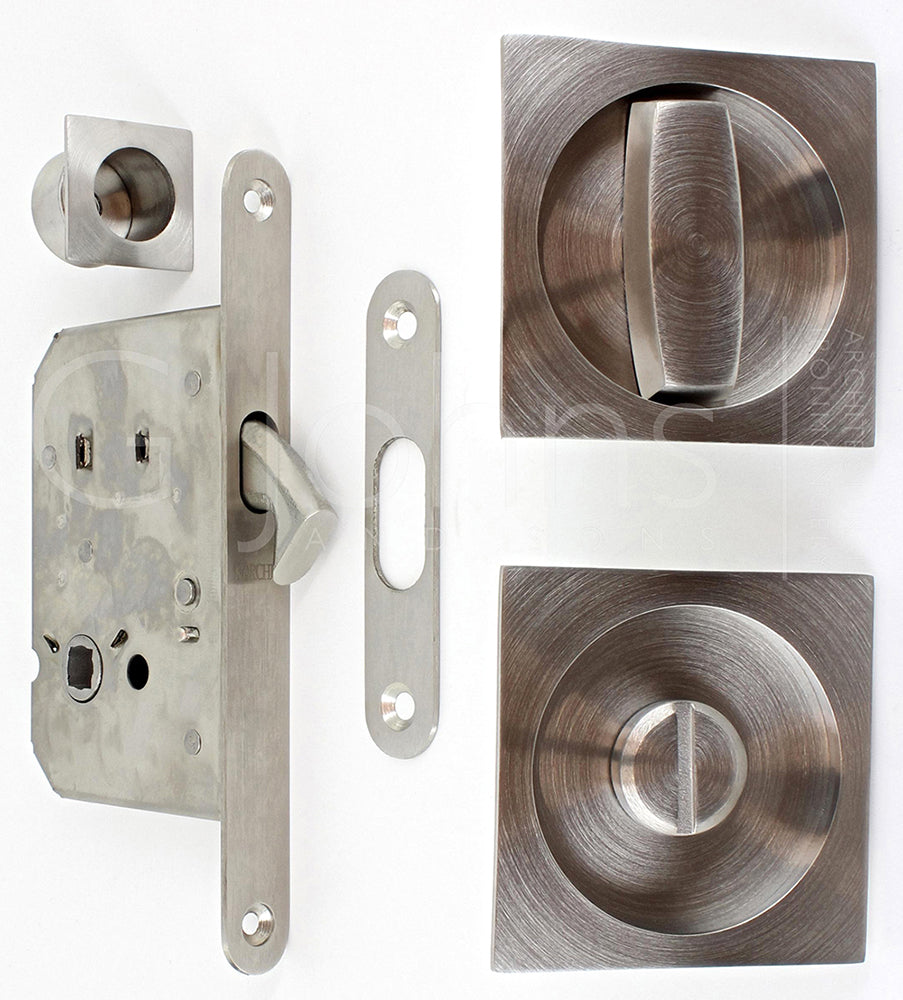

Complete kit includes.

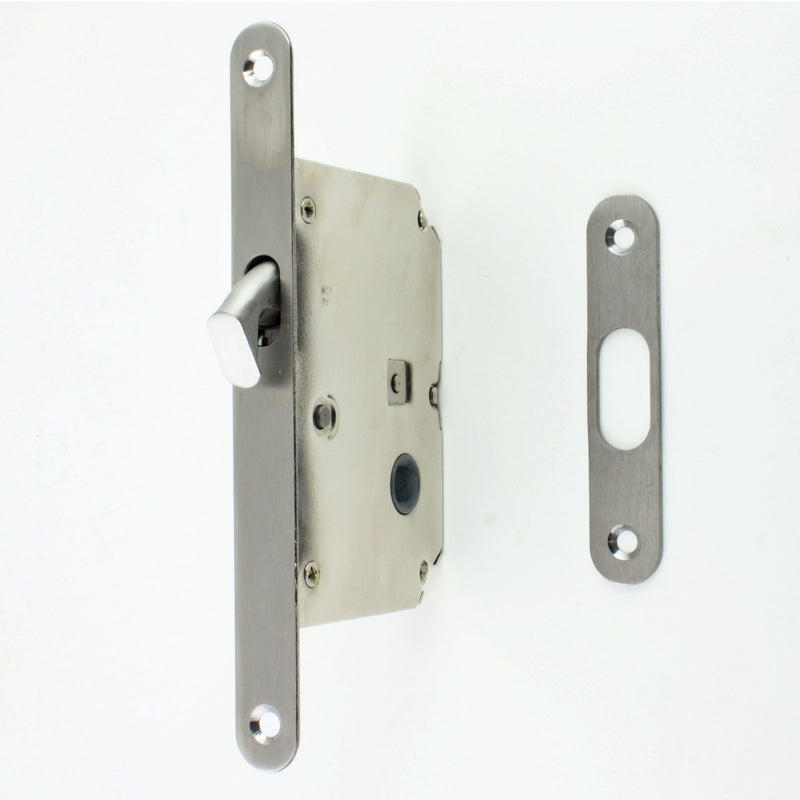

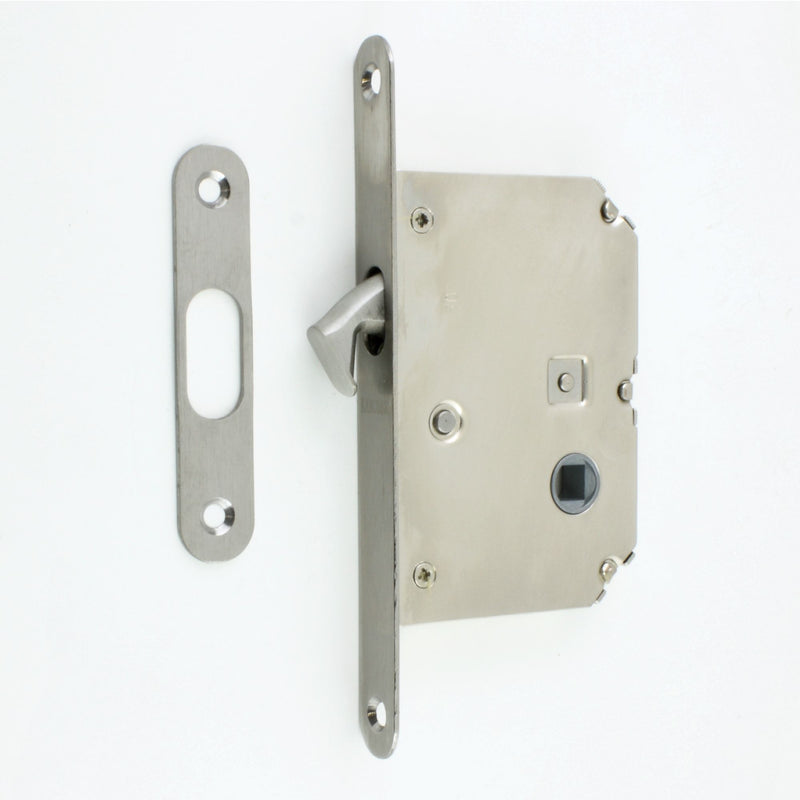

1x 70mm Deep sliding door bathroom hook lock
1x Flush fitting snib turn and emergency release
1x Edge pull handle to help pull the sliding door out of the wall cavity (pocket).

The thumb-turn is fitted to the inside of the sliding door which allows the door to be locked and unlocked.

The release part of the lock is fitted on the outside of the sliding door and allows the door to be unlocked in an emergency by using a coin of screw driver.

Suitable for use on doors between 40mm to 45mm thick.

Finish

Satin (brushed) stainless steel.

Dimensions

Lock Case - 70mm deep (50mm backset) mortice hook lock.

Turn & Release - 57mm x 57mm x 11mm depth.

Edge Pull - 29mm x 29mm x 22mm depth.

To Suit Door Thickness - 40mm to 45mm thick.

square-bathroom-hook-lock-for-sliding-pocket-doors-with-turn-and-release-diagram

Download PDF Data Sheet

More Information
Item	40862
Item Code	40862
Finish	Satin Stainless Steel
Sold Per	Set
Availability	Stock item - please allow 1-3 days for delivery

Stock item - please allow 1-3 days for delivery
