Knob Operated - Outside Access Device (OAD) With Euro Cylinder - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:

30769

Full Description

Product Name Price Qty

30769.1 - Knob Operated - Outside Access Device (OAD) With Euro Cylinder

£105.66 £88.05

Per Each

Enquire Now

Description

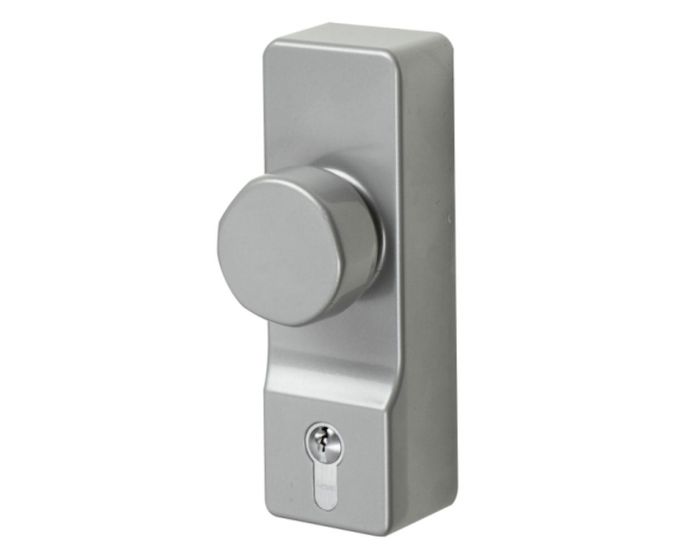

The Exidor 302 is a knob operated outside access device supplied with a 5 pin euro profile cylinder.

Also known as an OAD, this device is fitted to the external side of a fire escape door to allow access from the outside to the inside of the building.

Silver (SE) finish.

When locked via the euro profile cylinder, the mechanism is disengaged allowing the knob to freely rotate. When unlocked via the euro cylinder, the knob, spindle and mechanism engage allowing the shoots or latches of the panic bolt, or the panic latch, to be withdrawn from the outside. The knob remains engaged until it is re-locked.

Twisting the knob operates the Exidor panic hardware fitted to the inside of the door allowing the user to open the door from the outside.

Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

CE Marked / UKCA Marked

Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

This item has only been tested for use with the EXIDOR 200 / 300 series and MUST NOT be used with any other brand of panic hardware.

Finish Details

Silver (SE) finish.

Alternative Finishes Available

RAL colours including white, black, blue, green and red. - Available to special order.

Plated Finish including stainless steel effect and brass effect - Available to special order.

Please contact us for prices and lead times for special order Finish.

Operation

Twisting the knob operates the Exidor panic hardware fitted to the inside of the door allowing the user to open the door from the outside.

Euro profile cylinder can master keyed or keyed alike to suit a particular projected suite.

Usage

This Exidor 302 is suitable for external use on single or double, wooden fire exit doors.

As standard supplied with fixing and spindle to suit a 45mm thick door. - Longer fixing packs available to order.

This item has only been tested for use with the EXIDOR 200 / 300 series and MUST NOT be used with any other brand of panic hardware.

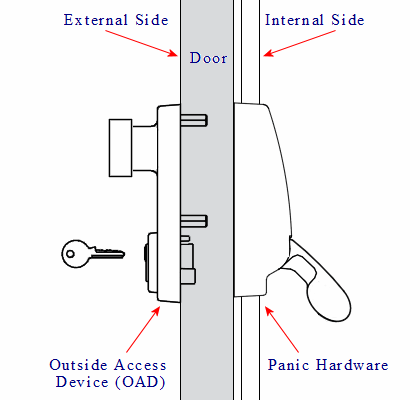

Diagram showing the Exidor 302 outside access device fitted to a fire escape door

Dimensions

Body Height - 178mm

Body Width - 60mm

Projection Form Door - 70mm

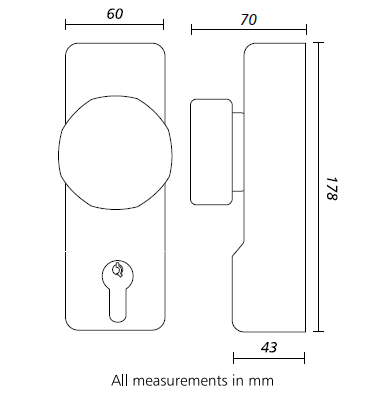

Diagram showing dimensions of the Exidor 302 knob operated outside access device

Fixings

Comes supplied with

- Fixings to suit wooden doors.

- 5 Pin euro profile cylinder with 3 keys.

Standards This Product Conforms To

CE Marked / UKCA Marked

Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.

Suitable for use in public buildings and public areas.

Outside access devices do not require a British standard although the Exidor 302 is manufactured to the same quality standards as the rest of the Exidor range.

This item has only been tested for use with the EXIDOR 200 / 300 series and MUST NOT be used with any other brand of panic hardware.

Certificates available on request.
