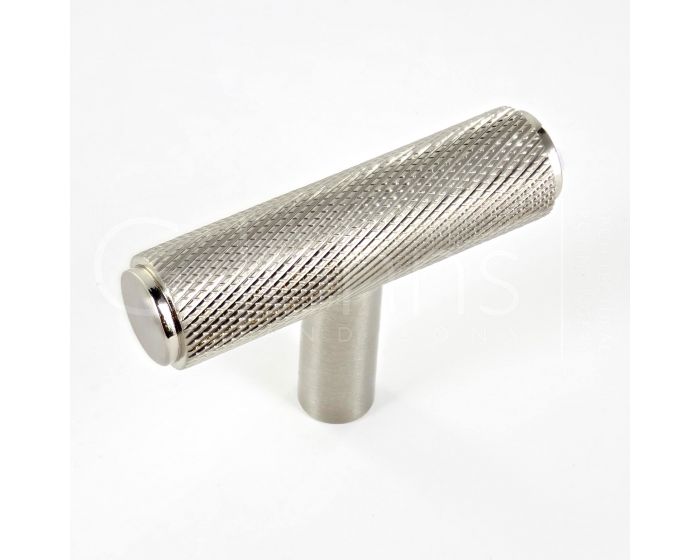

• Heavy quality, knurled T bar design stepped cupboard door knobs with an satin nickel finish and optional round base rose
  • High architectural quality range, each knob is made from solid brass giving the item a heavy luxurious feel
  • This popular design is ideal for use on modern or contemporary units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Size Details

Item CodeT-Bar LengthT-Bar WidthProjection From Door
44643.1 55mm 15mm 40mm

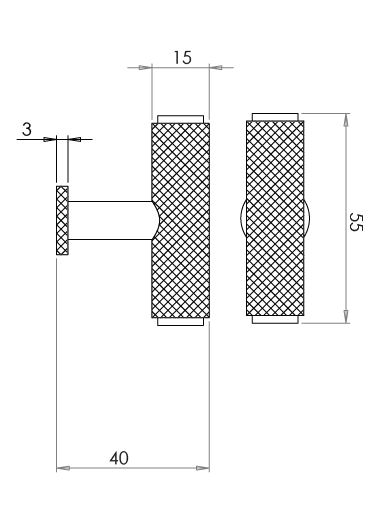

T-Bar-Shape-Knurled-Pattern-Cabinet-Handle-Dimensions-Diagram

Base Material

  • Made from solid brass.

Finish

  • Satin nickel

Fixings

  • This handle is fitted via a M4 bolt from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Knob Bolts Through A Door / Drawer

  • Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors
  • Comes supplied with M4 (diameter) x 25mm & 45mm (long) bolts, the 25mm long bolts are to suit 18mm cupboards and the 45mm designed to be cut down to length on site for thicker doors
  • To save having to cut down the bolts provided we sell a range of M4 fixing bolts in various lengths

Usage

  • Suitable for internal use

Unit Of Sale

  • These cupboard knobs are sold individually - (Each)
More Information
Item 44643
Item Code 44643
Finish Satin Nickel
Dimensions -
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
