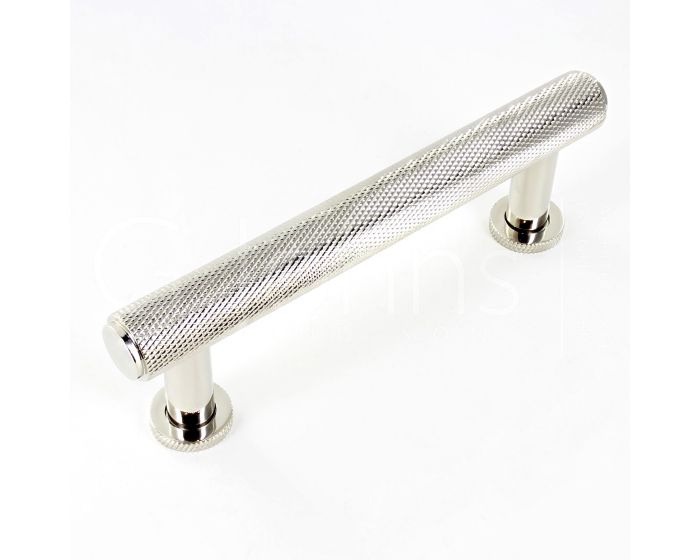

Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends With Optional Base Rose - Polished Nickel

Catalogue Number:

44686

Product Name Price Qty

44686.1 - Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends - 126mm Length (96mm Centres) - With Optional Base Rose - Polished Nickel - Each

£36.65 £30.54

Per Each

44686.2 - Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends - 160mm Length (128mm Centres) - With Optional Base Rose - Polished Nickel - Each

£41.66 £34.72

Per Each

44686.3 - Knurled Design Tubular T Bar Cabinet Pull Handle With Stepped Ends - 254mm Length (224mm Centres) - With Optional Base Rose - Polished Nickel - Each

£58.32 £48.60

Per Each

Enquire Now

Description

Knurled design tubular shape T-bar cabinet pull handle with stepped ends

Supplied with optional knurled base roses

Available in three lengths, 126mm, 160mm, 254mm

Supplied with M4 fixing bolts

Contemporary design ideal for use on modern units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Size Details

Item code	Overall Length(B)	Fixing Centres	Width(A)	Projection(C)
44686.1	126mm	96mm	15mm	40mm
44686.2	160mm	128mm	15mm	40mm
44686.3	254mm	224mm	15mm	40mm

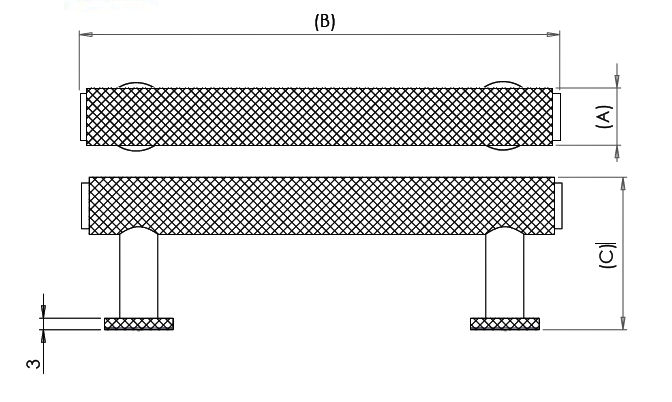

Knurled-Pattern-Tubular-Shape-Cabinet-Pull-Handle-Dimensions-Diagram

Base Material

Made from solid brass

Finish Details

Polished nickel

Fixings

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors

Supplied with M4 (diameter) x 25mm (long) bolts - Suitable for use on 18mm thick doors

For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

Usage

Suitable for internal use.

Unit Of Sale

This cabinet handle is sold individually - (Each)

Download

Download PDF Data Sheet

Specification

More Information
Item	44686
Item Code	44686
Finish	Polished Nickel
Dimensions	Available In Three Lengths
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
