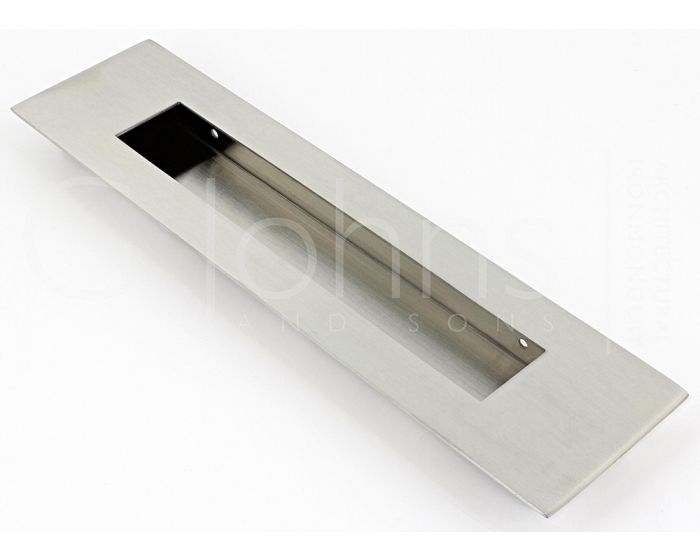

Extra large design rectangular shape flush fitting, inset pull handle for sliding doors.
Ideal for tall doors this handle measures 220mm long x 55mm wide.
Made from stainless steel this item is a satin (brushed) finish.
This item has to be morticed (cut) into the door to allow it to sit fit flush.
Suitable for use on full height sliding doors, wardrobe doors and cupboard doors.
Sleek minimal look thanks to discreet fixings. - (This item is fixed via wood screws from inside the recess).

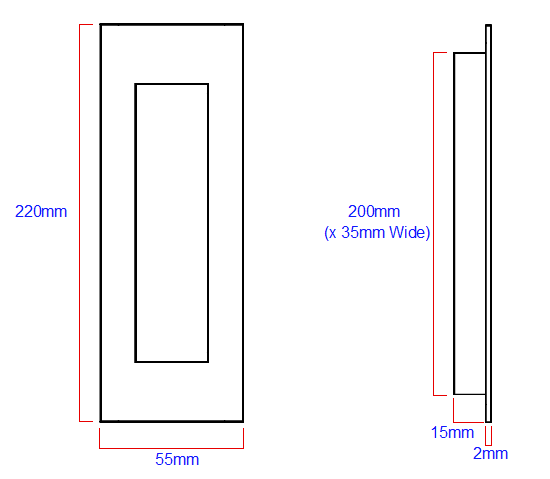

Size Details
Item Code
Height
Width
Recess Depth
Recess Height
Recess Width
Backplate Thickness
40913.1
220mm
55mm
15mm
200mm
35mm
2mm
Base Material
Made from stainless steel.
Finish Details
Satin stainless steel - a grey colour with very slight golden undertones. The raw stainless steel has been satinised "brushed" to produce visible brush marks in the surface of the item.
Fixings
This handle is fitted via 2 x wood screws inside the recess of the handle.
Screws are supplied with this item.
Usage
Suitable for internal use
To fit this handle completely flush a minimum door thickness of 20mm is required.
