Large Rectangular Lever On Square Rose - Suitable For Use With FD30 / FD60 Fire Doors - Stain Stainless Steel

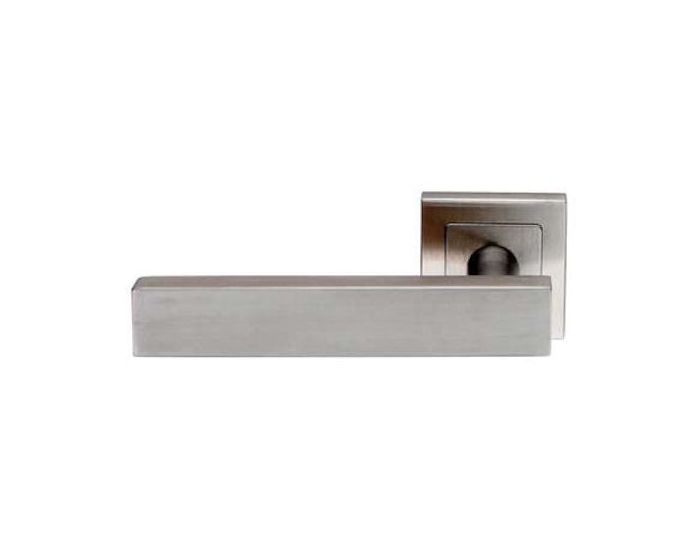

• SSL1403 STEELWORX lever handles from the Eurospec door handle collection, a modern large rectangular design lever fitted to a square shape fixing rose.

• Made from grade 304 stainless steel.

• Satin (brushed finish) stainless steel.

• Economy range with clip on rose, ideal for those on a budget looking for a contemporary design handle.

• Suitable for residential use.

• Matching square stainless steel accessories available including Standard escutcheons (keyhole covers), Euro profile escutcheons and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors - 1 x (Pair) Lever Handles Only

• For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon - (key hole cover to suit regular "chubb style locks") - SSP1405SSS/DUO

• Euro profile escutcheon - (key hole cover to suit euro profile cylinders) - SSE1405SSS/DUO

• Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors) - SST1415SSS

Base Material

• Made from grade 304 stainless steel.

Finish Details

• Satin stainless steel - a grey colour with very slight golden undertones. The raw stainless steel has been satinised "brushed" to produce visible brush marks in the surface of the item.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose Diameter - 50mm
• Rose Thickness - 6mm
• Lever thickness - 24mm x 12mm large rectangular shape.
• See technical information tab for diagram and further details.

Spindle Size

• 8mm x 8mm square - UK Standard.

Fixings

• Clip on rose.
• Concealed bolt together fixing.
• Comes supplied with M4 male and female bolt through fixings and 8mm spindle.
• Grub screw fixing to spindle for extra strength once fitted to the door.

Usage

• Suitable for residential use.
• Suitable for internal or external use.

Standards This Product Conforms To

•
  Successfully type tested to the all the requirements of the European performance standard BS EN1906 2002

•
  These door handles have been included on a successful fire test to BS EN1634: Part 1 2000 - Assessed for use on 30 minute and 1 hour fire doors FD30 / FD60.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
