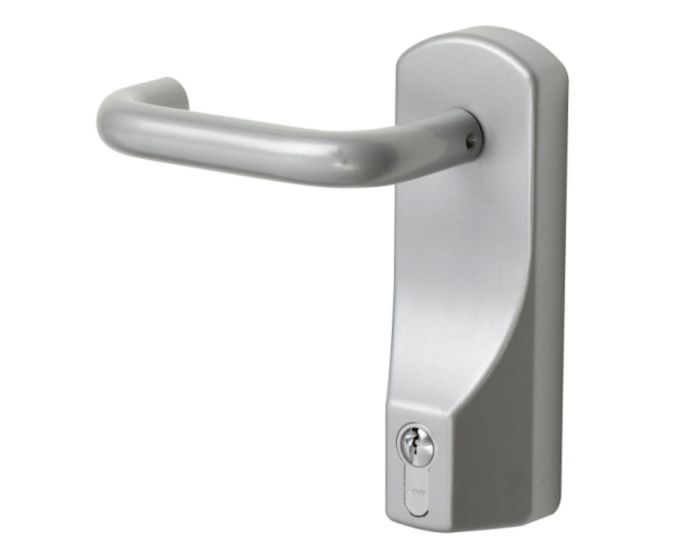

Lever Operated - Outside Access Device (OAD) With Euro Cylinder - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:

30770

Full Description

Product Name Price Qty

30770.1 - Lever Operated - Outside Access Device (OAD) With Euro Cylinder

£102.59 £85.49

Per Each

Enquire Now

Description

The Exidor 322 is a lever operated outside access device that meets the dimensional requirements of BS8300 and approved Document “M� (DDA).

Supplied with a 5 pin euro profile cylinder which can be master key or keyed alike.

Also known as an OAD, this device is fitted to the external side of a fire escape door to allow access from the outside to the inside of the building.

Silver (SE) finish.

When locked via the euro profile cylinder, the lever is fixed dead in the horizontal position. When unlocked via the euro cylinder, the lever, spindle and mechanism engage allowing the shoots or latches of the panic bolt, or the panic latch, to be withdrawn from the outside. The lever remains engaged until it is re-locked.

Push down on the lever operates the Exidor panic hardware fitted to the inside of the door allowing the user to open the door from the outside.

The lever is fitted with a "shear screw" which is designed to break under excessive force to prevent unauthorised entry.

Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

CE Marked / UKCA Marked

Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

This item has only been tested for use with the EXIDOR 200 / 300 series and MUST NOT be used with any other brand of panic hardware.

Finish Details

Silver (SE) finish.

Alternative Finishes Available

RAL colours including white, black, blue, green and red. - Available to special order.

Plated Finish including stainless steel effect and brass effect - Available to special order.

Please contact us for prices and lead times for special order Finish.

Operation

Push down on the lever operates the Exidor panic hardware fitted to the inside of the door allowing the user to open the door from the outside.

The lever is fitted with a "shear screw" which is designed to break under excessive force to prevent unauthorised entry.

Usage

This Exidor 322 is suitable for external use on single or double, wooden fire exit doors.

As standard supplied with fixing and spindle to suit a 45mm thick door. - Longer fixing packs available to order.

This item has only been tested for use with the EXIDOR 200 / 300 series and MUST NOT be used with any other brand of panic hardware.

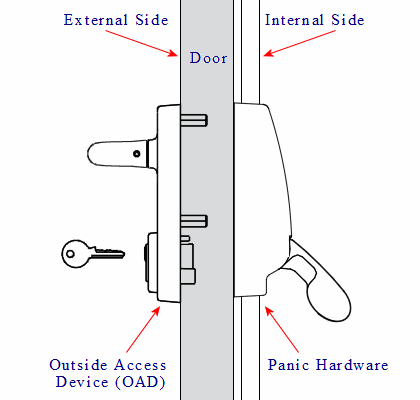

Diagram showing the Exidor 322 outside access device fitted to a fire escape door

Dimensions

Body Height - 178mm

Body Width - 60mm

Projection Form Door - 70mm

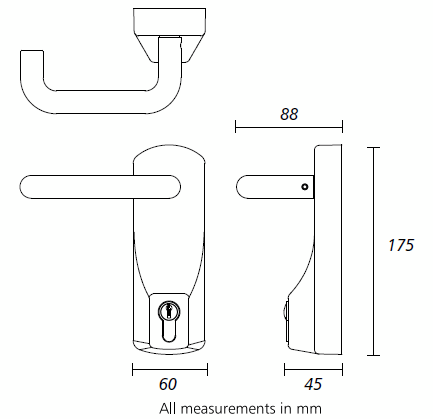

Diagram showing dimensions of the Exidor 322 lever operated outside access device

Fixings

Comes supplied with

- Fixings to suit wooden doors up to 45mm thick - Longer fixing packs available to order.

- 5 Pin euro profile cylinder with 3 keys.

Standards This Product Conforms To

CE Marked / UKCA Marked

Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.

Suitable for use in public buildings and public areas.

The lever handle meets the dimensional requirements of BS8300 and approved Document “M� (DDA).

Outside access devices do not require a British standard although the Exidor 302 is manufactured to the same quality standards as the rest of the Exidor range.

This item has only been tested for use with the EXIDOR 200 / 300 series and MUST NOT be used with any other brand of panic hardware.

Certificates available on request.
