Lift Handle To Lock - Accessible Roller Lock & Handle Set For Disabled WC Toilets - Matt White

Catalogue Number:
49876
  • Lift handle to lock toilet door set
  • Supplied with roller ball mortice lock set, return to door handles, indicator and lift handle to lock sign
Full Description
Product Name Price Qty
49876.1 - Lift Handle To Lock - Accessible Roller Lock & Handle Set For Disabled WC Toilets - Matt White - Set
£87.12 £72.60

Per Set
Enquire Now
  • Toilet / WC lock designed especially to comply with Approved Doc M, DDA & BS8300

External / Outside access:

  • The roller latch bolt is operated externally with one half of the unsprung lever set, this release the roller latch bolt as normal
  • Underneath the lever is the release & indicator, this operates in the same manner as bathroom type coin releases

Internal / Inside access:

  • The internal side of the lever set will be configured such that, the latch bolt is blanked off with a engraved covered escutcheon
  • The deadbolt features the second lever handle, and by throwing the handle up “extends the deadbolt” & locks the door
  • By turning the handle down the deadbolt is withdrawn, further downward action of the lever withdraws the roller latch bolt, allowing exit



 Accessible Bathroom Roller Lock For Disabled Toilet Doors - Dimensions



  • This unique toilet lock comes in a complete set as shown in the photographs
  • Lock Case Matt White forend & strike plate. Roller bolt latch (less likely to cause injuries or damage to clothing than a normal latch bolt)
  • Separate deadbolt with 78mm centres and 60mm backset
  • Furniture 19mm diameter matt white levers
  • Lettering black letters on matt white background "lift handle to lock"

Base Material

  • Handle made from grade 304 stainless steel

Finish Details

  • Matt White

Lever Handle Dimensions

  • 52mm diameter rose
  • 121.5mm lever length
  • 19mm diameter return to door handle
  • Bathroom indicator and lift handle to lock sign - 52mm diameter

Accessible toilet lock lever handles dimensions



Roller Ball Lock Case Dimensions:

Roller ball bathroom mortice lock for accessible toilet doors dimensions diagram

Set Includes:

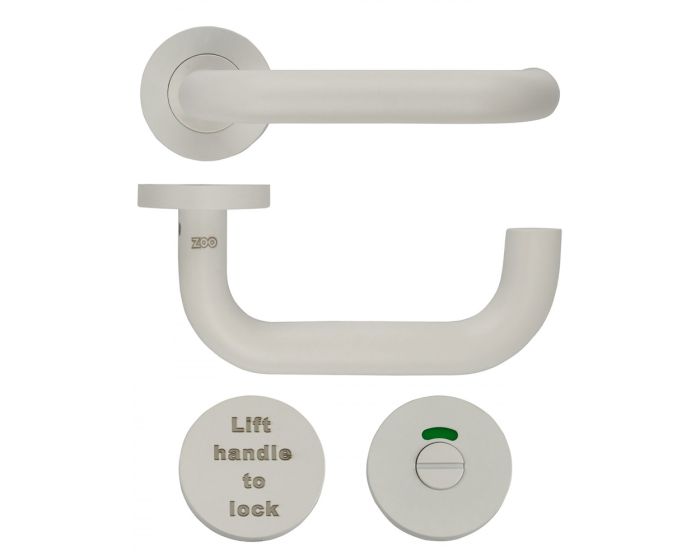

  • 2 x Matt White lever handles (unsprung)
  • 2 x 8mm spindles
  • 1 x Matt White release indicator
  • 1 x Matt White - "Lift Handle To Lock” escutcheon and sign



More Information
Item 49876
Item Code 49876
Finish Matt White
Dimensions 60mm Backset Lock - 78mm Euro Centres
Fire Rated FD30 / FD60 - Fire Rated
Sold Per Set
Availability Non stock product - please allow 3-4 days for delivery
Non stock product - please allow 3-4 days for delivery
