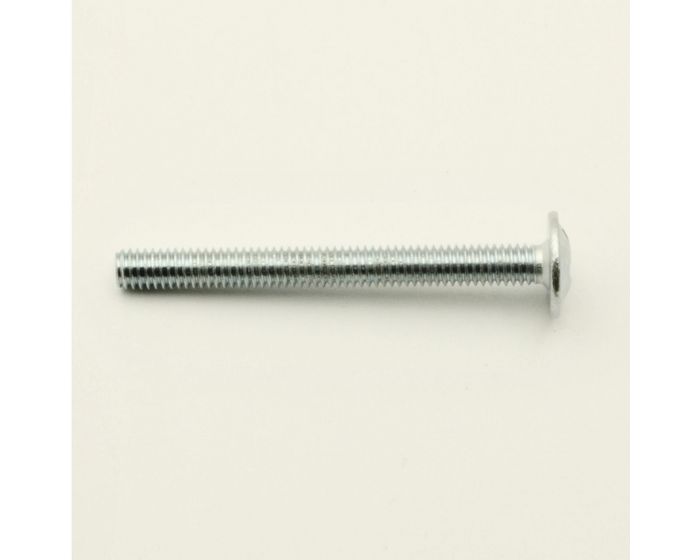

main product photo

M4 Fixing Bolt - For Cabinet Handles & Knobs - Zinc Plated

Catalogue Number:
30176
Full Description
Product Name Price Qty
30176.1 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 20mm Long - Each
£0.10 £0.08

Per Each
30176.2 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 22mm Long - Each
£0.10 £0.08

Per Each
30176.3 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 25mm Long - Each
£0.10 £0.08

Per Each
30176.4 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 30mm Long - Each
£0.10 £0.08

Per Each
30176.5 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 35mm Long - Each
£0.16 £0.13

Per Each
30176.6 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 40mm Long - Each
£0.16 £0.13

Per Each
30176.7 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 45mm Long - Each
£0.16 £0.13

Per Each
30176.8 - M4 - Fixing Bolt - For Cabinet Handles & Cupboard Knobs - Bright Zinc Plated - 50mm Long - Each
£0.16 £0.13

Per Each
Enquire Now
  • M4 fixing bolts for fitting cupboard pulls, cupboard knobs, wardrobe handles and kitchen cabinet handles.
  • M4 Bolts are bright zinc plated finish. - (Shiny silver colour)
  • Our M4 Bolts come in Long available lengths for fitting handles to thick drawers and doors.



Sizes Available

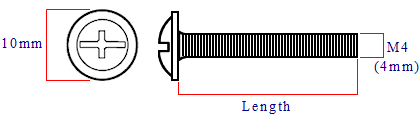

Diagram-Showing Dimensions Of A M4 Bolt For Fixing Cabinet Knobs And Cupboard Handles



Item Code Length For Door Thickness
M4-BOLT-20 20mm 16mm - 18mm
M4-BOLT-22 22mm 18mm - 20mm
M4-BOLT-25 25mm 20mm - 22mm
M4-BOLT-30 30mm 26mm - 28mm
M4-BOLT-35 35mm 30mm - 33mm
M4-BOLT-40 40mm 35mm - 38mm
M4-BOLT-45 25mm 40mm - 43mm
M4-BOLT-50 50mm 44mm - 48mm



  • Please note most cabinet handles have an internal thread of approximately 4mm - 5mm for the M4 bolt to screw into.



Base Material

  • M4 Bolts are made from a zinc alloy.

Finish Details

  • Bright zinc plated finish - (shiny silver colour)

Fixings

  • M4 bolts are designed to bolt through from the rear of the door / drawer and screw into the back of a cupboard handle or cabinet knob with a M4 thread.



Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer



  • 4.5mm diameter hole is required for the M4 bolts to go through.
  • Pan head - no need to countersink M4 bolt into the wood.
  • Bolts can be cut down with a junior hacksaw if required.
  • For fixing cupboard knobs back to back please see M4 stud in the related products section below.

Sold Per

  • M4 fixing bolts are sold individually - (Each)
Download PDF Data Sheet
More Information
Item 30176
Item Code 30176
Finish Bright Zinc Plated
Sold Per Each
Availability Stock item - please allow 1-3 days for delivery
Stock item - please allow 1-3 days for delivery
