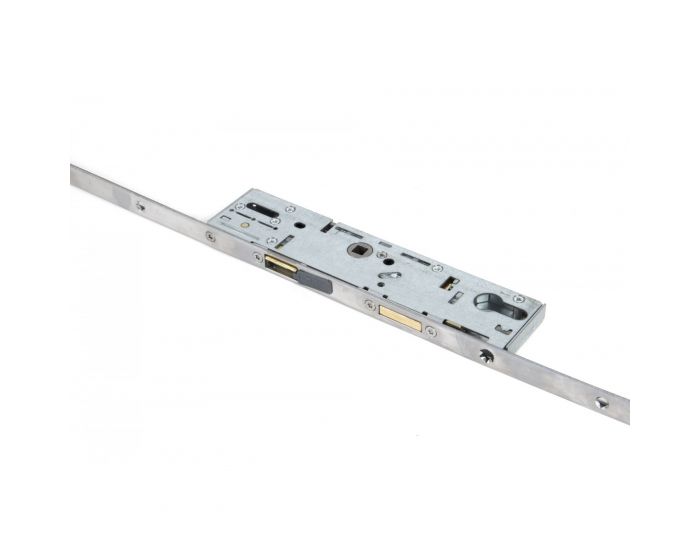

Multipoint Door Lock Set For External Doors - 92mm Euro Centres - Door Thickness 44mm - 54mm

• Multipoint door lock for external timber / wooden doors.

• 3 point locking - 2 x hooks,1 x dead bolt, and 1 x latch,

• "Lift handle to lock" operation

• Multipoint locks must be used in conjunction with 1 x pair of multi-point door handles and 1 x Euro profile cylinders - SOLD SEPARATELY.

• Euro multipoint lock options are available to suit 44mm and 54mm thick doors.

• You can add shoot bolts top and bottom to make this into a 5 point locking kit - SOLD SEPARATELY.

Operation

• The hook bolts on the multipoint lock are engaged and withdrawn via multipoint lever handles from either side of the door (handles sold separately).

• The deadbolt on the master lock is locked and un-locked via a Euro profile cylinder (sold separately).

Features

• Suitable for use on left or right handed doors.

• Suitable for inward or outward opening doors.

• Medium weight springing, designed for use with spring assisted (sprung) door handles.

• Bolt through facility for standard multipoint door handles.

• 8mm x 8mm spindle follower (to suit standard UK size spindles).

• Latch can be reversed on site without taking the lock case apart.

Finish

• Stainless steel forend.

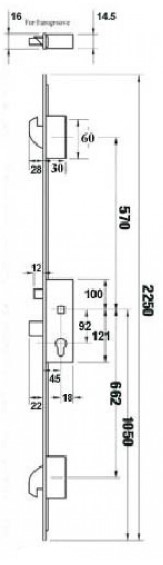

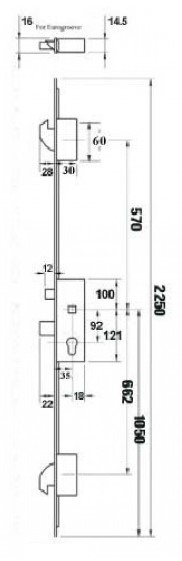

Dimensions

• Centre Case Size: 221mm (H) x 14.5mm (T)

• Linear Lock Box Size: 43mm (D) x 110mm (H) x 14.5mm (T)

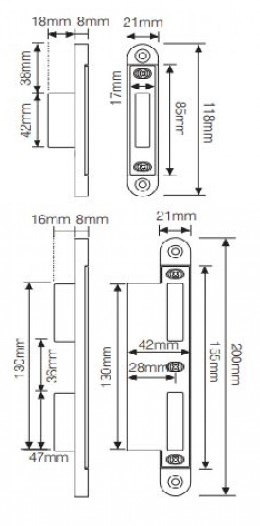

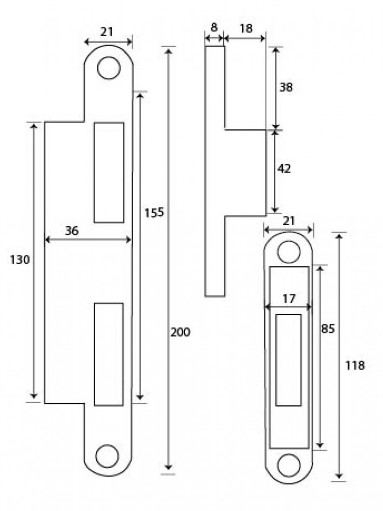

Strike Plates/ Keeps

• Centre Keep Size: 200mm (H) x 21mm (W) x 24mm (D)

• Linear/Hook Keep Size: 118mm (H) x 21mm (W) x 24mm (D)

Unit Of Sale

• Multipoint door lock for external timber / wooden doors.

• Multipoint keeps sets sold separately
