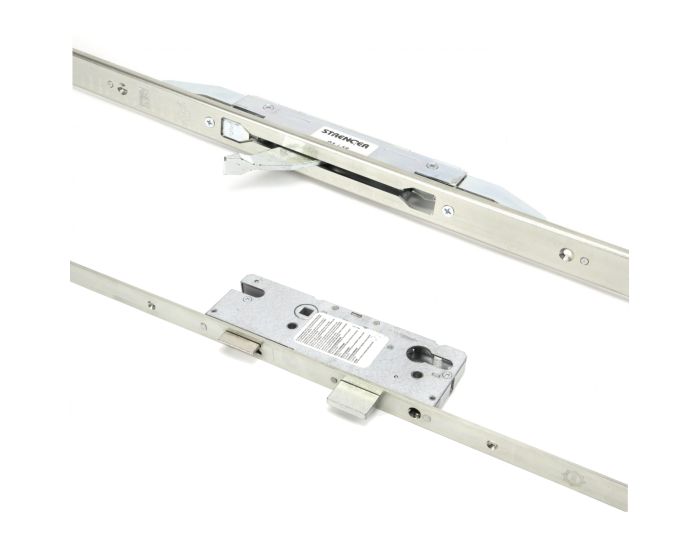

Multipoint Door Lock Set For External Timber / Wooden Double Doors - Lift Handle To Lock Operation To Master Door & Flush Bolt System To Slave Door

Catalogue Number:
43965
Full Description
Product Name Price Qty
43965.1 - Multipoint Door Lock Set For External Double Doors With Flush Bolt To Slave Door - 92mm Euro Centres - 45mm Backset - Max Door Height 2140mm - Left Hand
£463.92 £386.60

Per Set
43965.2 - Multipoint Door Lock Set For External Double Doors With Flush Bolt To Slave Door - 92mm Euro Centres - 45mm Backset - Max Door Height 2140mm - Right Hand
£463.92 £386.60

Per Set
43965.3 - Multipoint Door Lock Set For External Double Doors With Flush Bolt To Slave Door - 92mm Euro Centres - 45mm Backset - Max Door Height 2284mm - Left Hand
£507.14 £422.62

Per Set
43965.4 - Multipoint Door Lock Set For External Double Doors With Flush Bolt To Slave Door - 92mm Euro Centres - 45mm Backset - Max Door Height 2284mm - Right Hand
£507.14 £422.62

Per Set
Enquire Now
  • Multipoint door lock set for external double timber / wooden doors.
  • 5 point locking - 3 x dead bolts + 1 x latch on master lock, 2 x shoot bolts on slave lock.
  • "Lift handle to lock" operation on master door.
  • Integrated lever operated flush bolt system to slave door.
  • Sold as a set which includes: master lock, and flush bolt style slave lock.
  • Must be used in conjunction with 1 x pair of multi-point door handles and 1 x Euro profile cylinder - SOLD SEPARATELY.
  • Suitable for use on 44mm and 54mm thick doors.

Operation

  • The slave lock is operated by a flush, integrated two-way lever which throws two heavy duty 20mm shoot bolts into the head and sill.
  • The master lock securely engages into slave mechanism.
  • The dead bolts on the master lock are engaged and withdrawn via multipoint lever handles from either side of the door (handles sold separately).
  • The deadbolt on the master lock is locked and un-locked via a Euro profile cylinder (sold separately).



Features

  • Suitable for inward or outward opening doors.
  • Medium weight springing, designed for use with spring assisted (sprung) door handles.
  • Bolt through facility for standard multipoint door handles.
  • 8mm x 8mm spindle follower (to suit standard UK size spindles).



Security Level

  • Medium security architectural range.
  • Suitable for use on external doors in residential properties



Finish

  • Stainless steel forend.



Dimensions


Item Code Lock Case Depth Backset To Keyhole Euro Centres Max Door Height Minimum Door Height Handing
 43965.1 63mm 45mm 92mm 2140mm 1997mm Left Hand
43965.2 63mm 45mm 92mm 2140mm 1997mm Right Hand
43965.3 63mm 45mm 92mm 2284mm TBC Left Hand
43965.4 63mm 45mm 92mm 2284mm TBC Right Hand



Handing

LOOKING AT THE DOORS FROM THE OUTSIDE OF THE PROPERTY

Doors Opening Master Door Hinged On  Slave Door Hinged On Handing Required
Outward Right Left Right Hand
Outward Left Right Left Hand

Inward Right Left Left Hand
Inward Left Right Right Hand
  • Master door is the "main door" which as the door handle fitted to it.
  • Slave door is the "secondary door" which has the integrated flush bolt fitted into it.



Unit Of Sale

  • Double door kit which includes the following components:
    • 1 x Master door multipoint lock (with 3 x dead bolts and 1 x latch).
    • 1 x Slave door lock with integrated flush bolt system which operates top & bottom shoot bolts,.
    • 2 x Shoot bolt keeps.
More Information
Item 43965
Item Code 43965
Finish Stainless Steel
Dimensions 92mm Euro Centres - 45mm Backset - Door Thickness 44mm - 54mm - Max Door Height 2284mm
Sold Per Set
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
