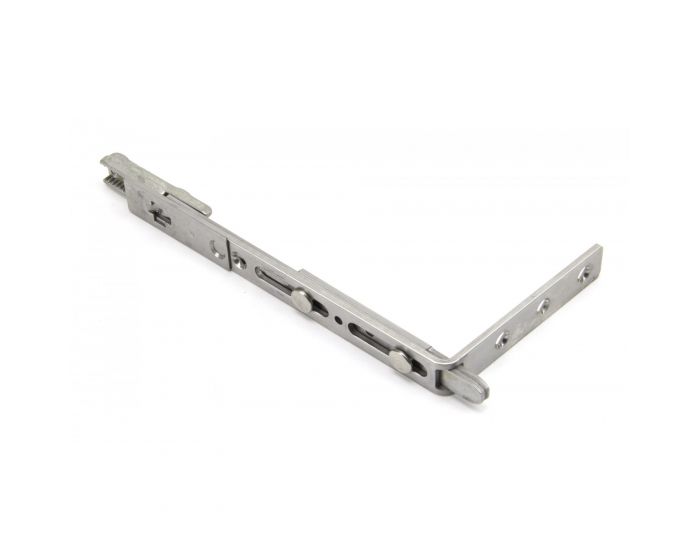

Multipoint Reversible Shoot bolts For The Top And Bottom Of The 3-Point Multi Point Locks

Catalogue Number:
44274
Full Description
Product Name Price Qty
44274.1 - Multipoint Reversible Shoot bolts For The Top And Bottom Of The 3-Point Multi Point Locks - 155mm - 20mm Throw - Shoot Bolt Keeps Sets Sold Separately
£16.49 £13.74

Per Each
44274.2 - Multipoint Keeps For Use With Shoot Bolts - 27mm x 27mm - Pair
£12.34 £10.28

Per Each
Enquire Now
  • Can be turned from a 3-point lock with shootbolts to a 5-point door locks
  • Fixing these to 3 point locking multipoint will reduce the minimum and maximum door height to 1970mm - 2105mm.

Operation

  • The bolts on the multipoint lock are engaged and withdrawn via multipoint lever handles from either side of the door (handles sold separately).

Security Level

  • Medium security architectural range.
  • Suitable for use on external doors in residential properties

Finish

  • Stainless steel forend.

Dimensions

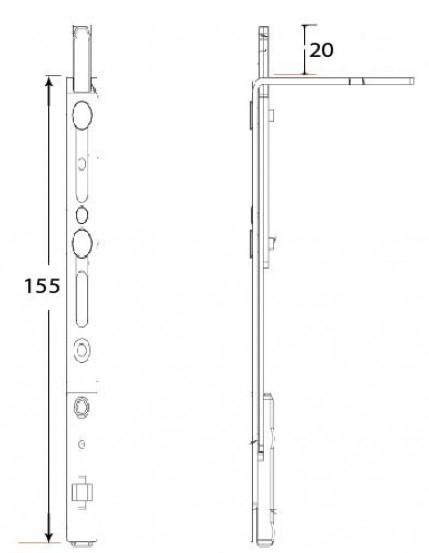

multipoint-reversible-shoot-bolts-for-the-top-and-bottom-of-the-3-point-multi-point-locks-Diagram

Shootbolt Length: 155mm
Bolt Throw: 20mm

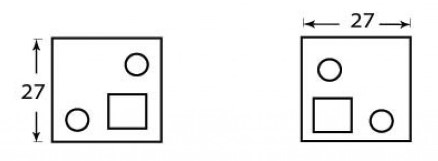

Keeps

Overall Size: 27mm (H) x 27mm (W) x 2mm (T)

Unit Of Sale

  • Multipoint door lock for external timber / wooden doors.
  • Multipoint sold separately
  • Multipoint keeps sets sold separately
More Information
Item 44274
Item Code 44274
Finish Stainless Steel
Sold Per Each
Availability Non stock product - please allow 3-7 days for delivery
Non stock product - please allow 3-7 days for delivery
Download PDF Data Sheet
