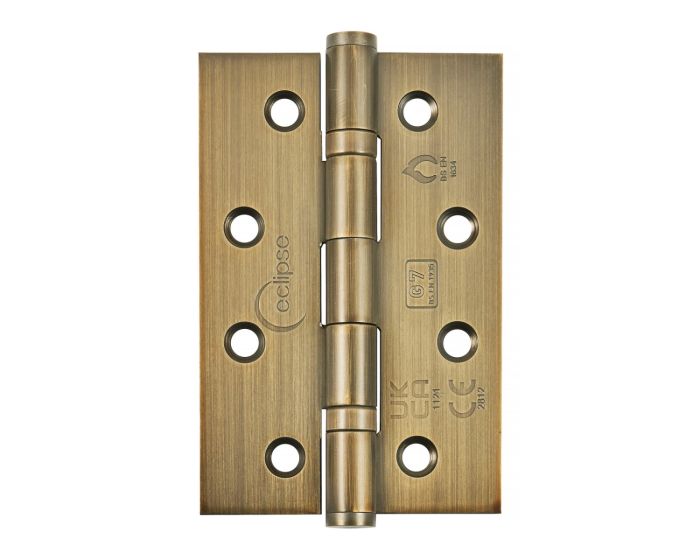

Narrow Leaf Washered Hinges - Grade 7 - Fire Rated - CE / UKCA Marked - Certifire Approved - 40kg Weight Limit - 102mm x 67mm - Matt Antique Brass (Lacquered)

• Narrow leaf washered hinges
• Slim leaf design allows these hinges to be used on both 35mm and 44mm thick doors
• Half hour fire rated hinges suitable for use on internal fire doors FD30
• Tested and passed to the British / European standard BS EN 1935 suitable for use on fire doors up to 40kg in weight
• Grade 201 Stainless Steel

Finish

• Matt Antique Brass (Lacquered)

Dimensions

Standards This Product Conforms To

• Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 2-7-2-1-1-4-0-7

• *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute timber fire doors FD30

• CE Marked / UKCA Marked

Useage

• Suitable for use on 35mm -  44mm thick wooden doors

• To pass fire regulations three hinges must be fitted per door (pair and a half)

Unit Of Sale

• Hinges are sold and priced in pairs (2 hinges) and come supplied with fixing screws.
