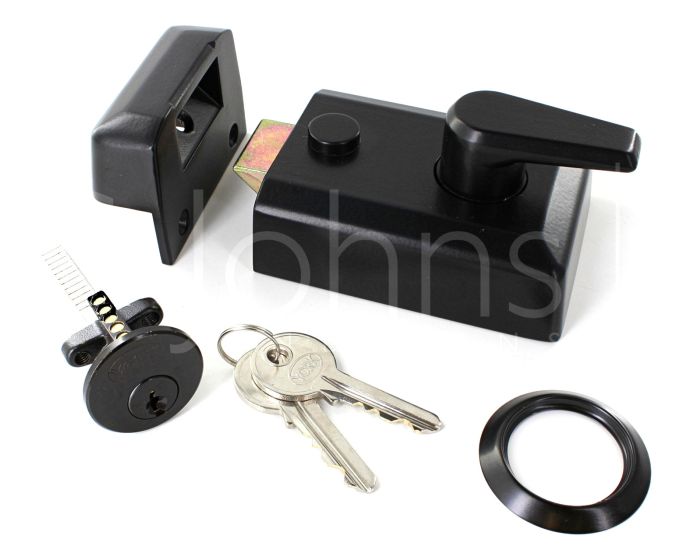

Double Locking Surface Mounted Night Latch - Matt Black
Catalogue Number:
43459
TO SUIT MAXIMUM DOOR THICKNESS OF 54MM
- Double locking surface mounted night latch
Finish
- Matt black
Dimensions
Available in two sizes - Backset size (Distance from edge of door to centre of the cylinder)
43459.1 - 60mm Case Depth (40mm Backset)
43459.2 - 92mm Case Depth (60mm Backset)
| 43459.1 | 43459.2 |
Dimension On Diagram
|
|
| Backset |
40mm
|
60mm
|
A
|
| Case Width |
60mm
|
92mm
|
B
|
| Case Height |
63mm
|
63mm
|
C
|
| Case Depth |
26mm
|
26mm
|
D
|
| Lever Projection From Case |
15mm
|
15mm
|
E
|
| Cylinder Diameter |
32mm
|
32mm
|
F
|
| Cylinder Ring Outside Diameter |
45mm
|
45mm
|
G
|
Important Info Before You Buy
- Suitable for inward opening doors only
- Night latch can be dead-locked (double locked) form the outside by a full turn of the key
- Latch bolt is withdrawn by handle from inside and by turn of key from outside.
- Bolt can be deadlocked or held back by sliding the thumb button on lock case
- Suitable for doors up to 54mm thickness
- For doors with narrow stiles use the 40mm backset
- Comes with cylinder, cylinder ring and two keys
-
