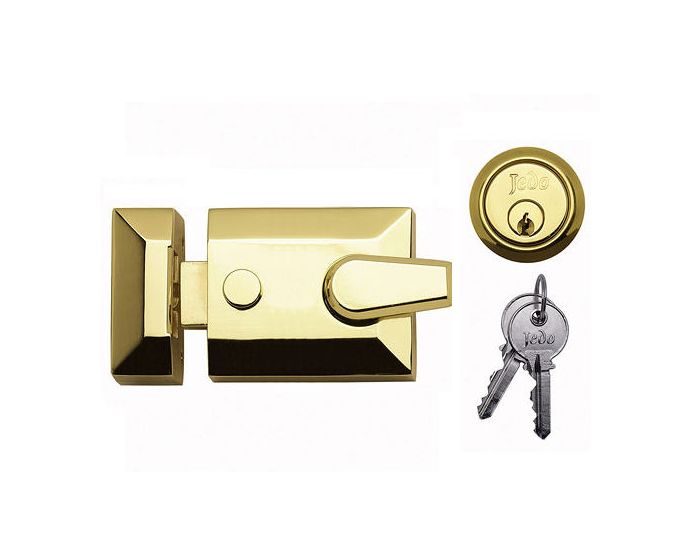

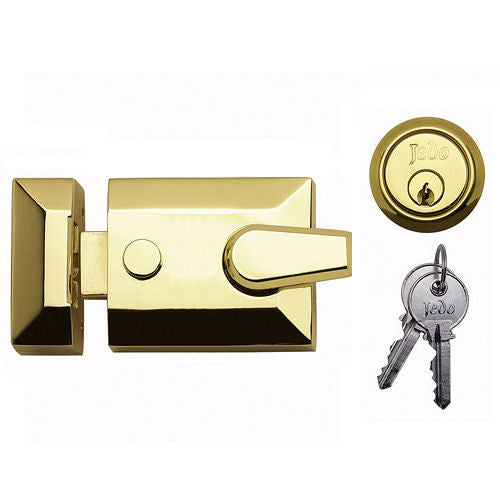

Double Locking Surface Mounted Night Latch - Polished Brass (Lacquered)

Catalogue Number:

15196

Product Name Price Qty

15196.1 - Double Locking Surface Mounted Night Latch - 60mm Case Depth (40mm Backset) - Polished Brass (Lacquered) - Each

£38.71 £32.26

Per Each

15196.2 - Double Locking Surface Mounted Night Latch - 92mm Case Depth (60mm Backset) - Polished Brass (Lacquered) - Each

£41.24 £34.37

Per Each

TO SUIT MAXIMUM DOOR THICKNESS OF 54MM

Finish

Dimensions

Available in two sizes - Backset size (Distance from edge of door to centre of the cylinder)

15196.1 - 40mm

15196.2 - 60mm

	15196.1	15196.2	Dimension On Diagram
Backset	40mm	60mm	A
Case Width	60mm	92mm	B
Case Height	63mm	63mm	C
Case Depth	26mm	26mm	D
Lever Projection From Case	15mm	15mm	E
Cylinder Diameter	32mm	32mm	F
Cylinder Ring Outside Diameter	45mm	45mm	G

Important Info Before You Buy

Suitable for inward opening doors only
Night latch can be dead-locked (double locked) form the outside by a full turn of the key
Latch bolt is withdrawn by handle from inside and by turn of key from outside.
Bolt can be deadlocked or held back by sliding the thumb button on lock case
Suitable for doors up to 54mm thickness
For doors with narrow stiles use the 40mm backset
Comes with cylinder, cylinder ring and two keys

More Information
Item	15196
Item Code	15196
Finish	Polished Brass (Lacquered)
Fire Rated	Non Fire Rated
Sold Per	Each
Availability	Stock item - please allow 1-3 days for delivery

Stock item - please allow 1-3 days for delivery
