Return To Door Safety Design Round Rose Lever Handles - Grade 3 Rated - BS800 / ADM Compliant - Matt Black - (Pair)

Catalogue Number:
49134
Full Description Related Products
Grouped product items
Product Name Qty
49134.1 - Return To Door Safety Design Round Rose Lever Handles - Grade 3 Rated - BS800 / ADM Compliant - Matt Black - (Pair)

Short Description:

1 x pair of lever handles only


£20.33 £16.94
49134.2 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - Latch And Hinge Pack - To Suit 35mm Thick Non Locking Doors

Short Description:

Suitable for use on 35mm thick internal doors, items included within this door pack are:

1 x pair of door handles - matt black

1 x heavy duty tubular latch - 76mm case depth (57mm backset) CE / UKCA Marked - fire rated - matt black

3 x ball bearing hinges - 76mm x 50mm - matt black

1 x tubular latch - 76mm case depth (57mm backset)

3 x hinges - 76mm x 50mm


£40.30 £33.58
49134.3 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - Latch And Hinge Pack - To Suit 44mm Thick Non Locking Doors - FD30 Fire Rated

Short Description:

Suitable for use on 44mm thick FD30 fire rated internal doors, items included within this door pack are:

1 x pair of door handles - matt black

1 x heavy duty tubular latch - 76mm case depth (57mm backset) CE / UKCA Marked - fire rated - matt black

1 x intumescent kit for tubular latch

3 x fire rated ball bearing hinges - 102mm x 76mm - CE / UKCA Marked - fire rated - matt black

6 x intumescent hinge pad liners


£64.64 £53.87
49134.4 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - Bathroom Lock & Hinge Pack - To Suit 35mm Thick Doors With Bathroom Turn & Release Locking

Short Description:

Suitable for use on 35mm thick internal doors, items included within this door pack are:

1 x pair of door handles - matt black

1 x bathroom turn and release set - matt black

1 x heavy duty bathroom mortice lock - 76mm case depth (57mm backset) CE / UKCA Marked - fire rated - matt black

3 x ball bearing hinges - 76mm x 50mm - matt black


£68.57 £57.14
49134.5 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - Bathroom Lock & Hinge Pack - To Suit 44mm Thick Doors With Bathroom Turn & Release Locking

Short Description:

Suitable for use on 35mm thick internal doors, items included within this door pack are:

1 x pair of door handles - matt black

1 x bathroom turn and release set - matt black

1 x heavy duty bathroom mortice lock - 76mm case depth (57mm backset) CE / UKCA Marked - fire rated - matt black

3 x fire rated ball bearing hinges - 102mm x 76mm - CE / UKCA Marked - fire rated - matt black


£80.10 £66.75
49134.6 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - 3 Lever Lock & Hinge Pack - To Suit 35mm Thick Key Locking Doors

Short Description:

Suitable for use on 35mm thick internal doors, items included within this door pack are:

1 x pair of door handles - matt black

2 x standard profile escutcheon key hole covers - matt black

1 x heavy duty 3 lever mortice sash lock - 76mm case depth CE / UKCA Marked - fire rated - matt black

3 x ball bearing hinges - 76mm x 50mm - matt black


£75.22 £62.68
49134.7 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - 3 Lever Lock & Hinge Pack - To Suit 44mm Thick Key Locking Doors - FD30 Fire Rated

Short Description:

Suitable for use on 44mm thick FD30 fire rated internal doors, items included within this door pack are:

1 x pair of door handles - matt black

2 x standard profile escutcheon key hole covers - matt black

1 x heavy duty 3 lever mortice sash lock - 76mm case depth CE / UKCA Marked - fire rated - matt black

1 x intumescent kit for 3 lever sash lock

3 x fire rated ball bearing hinges - 102mm x 76mm - CE / UKCA Marked - fire rated - matt black

6 x intumescent hinge pad liners


£106.40 £88.67
49134.8 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - Euro Profile Lock & Hinge Pack - To Suit 35mm Thick Key Locking Doors With Internal Thumbturn

Short Description:

Suitable for use on 35mm thick internal doors, items included within this door pack are:

1 x pair of door handles - matt black

2 x euro profile escutcheon key hole covers - matt black

1 x heavy duty euro profile mortice sash lock case - 76mm case depth (57mm backset) CE / UKCA Marked - fire rated - matt black

1 x euro profile cylinder key / turn - 60mm length - matt black

3 x ball bearing hinges - 76mm x 50mm - matt black


£85.39 £71.16
49134.9 - Orbit Return To Door Safety Design Round Rose Lever Handles - BS800 / ADM Compliant - Matt Black - Euro Profile Lock & Hinge Pack - To Suit 44mm Thick Key Locking Doors With Internal Thumbturn - FD30 Fire Rated

Short Description:

Suitable for use on 44mm thick FD30 fire rated internal doors, items included within this door pack are:

1 x pair of door handles - matt black

2 x euro profile escutcheon key hole covers - matt black

1 x heavy duty euro profile mortice sash lock case - 76mm case depth (57mm backset) CE / UKCA Marked - fire rated - matt black

1 x intumescent kit for euro profile sash lock

1 x euro profile cylinder key / turn - 70mm length - matt black

3 x fire rated ball bearing hinges - 102mm x 76mm - CE / UKCA Marked - fire rated - matt black

6 x intumescent hinge pad liners


£117.54 £97.95
Enquire Now
  • Return to door safety design round rose lever handles
  • Heavy duty commercial range - tested to grade 4

  • Grade 304 material
  • Suitable for commercial projects and public buildings
  • Concealed bolt through fixings via screw on rose
  • Tested to BS EN 1906:2012 - category of use grade 4
  • Suitable for use on fire rated doors tested to BS EN 1634
  • Matching accessories available including standard escutcheons (keyhole covers) and a bathroom turn & release set


How To Order Lever Handles With A Rose

  • For Non-Locking Doors - 1 x (Pair) Lever Handles Only

Diagram showing levers handle only for non-locking doors

  • For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

Diagram showing lever handles and standard escutcheons for locking doors

  • For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

Diagram showing lever handles with euro profile escutcheon for doors locking via Euro profile cylinder

  • For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Diagram showing lever handles with a bathroom turn and emergency release set for locking bathroom doors

Matching Accessories

  • Standard escutcheon - (key hole cover to suit regular "chubb style locks")
  • Euro profile escutcheon - (key hole cover to suit euro profile cylinders)

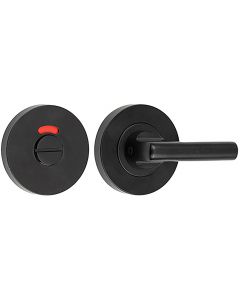

  • Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)
  • Disabled large turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors)

Base Material

  • Made from grade 304 stainless steel

Finish

  • Matt Black

Operation

  • Both levers are sprung to ensure the lever always returns to its starting position

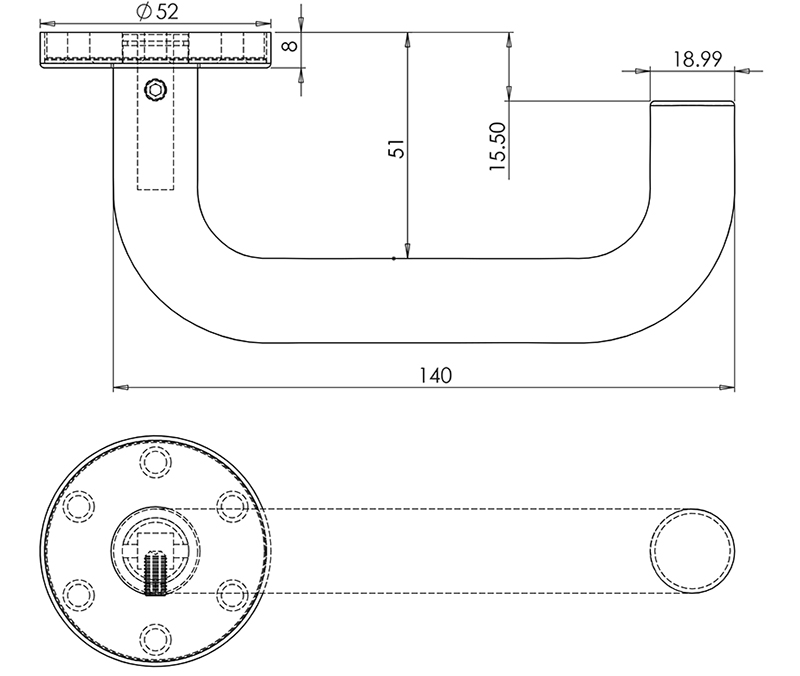

Dimensions

  • Rose Diameter - 52mm
  • Rose Thickness - 8mm
  • Lever Diameter - 19mm
  • Lever Length - 140mm



Orbit-Return-To-Door-Safety-Design-Round-Rose-Lever-Handles-Heavy-Duty-Diagram



Spindle Size

  • 8mm x 8mm square - UK Standard

Fixings

  • Concealed bolt together fixings via male and female bolts
  • Grub screw fixing to spindle for extra strength once fitted to the door
  • Comes supplied with male and female bolt through fixings and 8mm spindle

Usage

  • Suitable for heavy duty commercial use
  • Suitable for internal or external use

Unit Of Sale

  • Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand)
More Information
Item 49134
Item Code 49134
Finish Matt Black
Dimensions 52mm x 8mm Rose
Sold Per Pair
Availability Non stock product - Please allow 3 - 5 days for delivery
