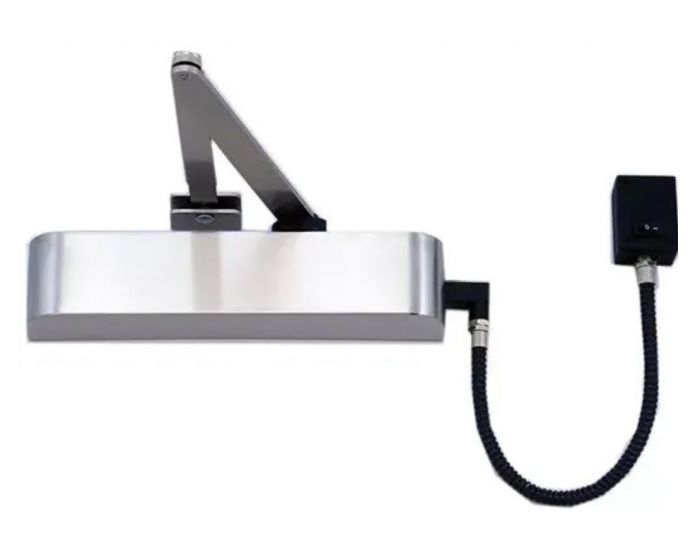

Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE / UKCA Marked - Certifire Approved - Satin Stainless Steel Cover & Arms

Catalogue Number:

49674

A unique swing-free door closer developed specifically to meet the needs of care home facilities. In a class of its own, this closer offers specific features that reduce the risk of injury to residents as well as eradicating the need to wedge doors open.

ANTI-SLAM: The swing-free mode of a closer can allow a door to slam shut. Whether this is accidental, deliberate, or just caused by a draught, it poses a real risk to frail residents. This closer has been specifically developed with an anti-slam function that controls and slows the motion of the door.

DRIFT RESISTANCE: Offers a low-level control on the door, which stops it from drifting from its open position – eradicating the need to wedge doors open, yet still allowing the door to operate freely to the user.

Electromagnetic overhead door closer with free-swing and anti-slam
Features individual controls for door speed, latching action.
Fixed EN power size 4
Max Door Width / Weight – 1100mm / 80Kg.
Adjustable closing speed.
Adjustable latch speed.
Universal application (Fig 1, 6) - Suitable for the two most common installation applications including "pull-open" and "push-open".
CE marked against EN1155 in fig 1 and fig 6 positions only..
Included in successful fire test to EN1634.
Certifire approved.
Declaration of performance (DoP) available.

Full Description

Product Name Price Qty

49674.1 - Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE / UKCA Marked - Certifire Approved - Satin Stainless Steel Cover & Arms

£313.56 £261.30

Per Kit

49674.2 - Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE / UKCA Marked - Certifire Approved - Silver Cover & Arms

£299.38 £249.48

Per Kit

49674.3 - Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE / UKCA Marked - Certifire Approved - Polished Stainless Steel Cover & Arms

£313.56 £261.30

Per Kit

49674.4 - Overhead Door Closer With Electromagnetic Swing Free & Anti-Slam Feature - BS EN 1154 Power Size 4 - CE / UKCA Marked - Certifire Approved - Polished Brass Cover & Arms

£313.56 £261.30

Per Kit

Enquire Now

Description

Finishes

Silver
Satin stainless steel
Polished stainless steel
Polished brass plates
Matt black - special order
Antique brass - special order
Satin brass - special order
Matt / dark bronze - special order

Fixing Positions & Mounting Options:

Out of the box this door closer can be fitted in two fixing positions:

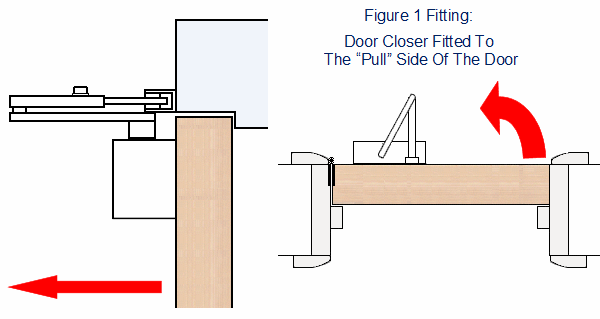

Figure 1 - pull side mounting - (covered under the CE mark - suitable for use on fire doors).

Closer fitted to the pull side of the door

Body fitted to the door with arms fitted to the door frame.

In this position the closer arms will project out from the door into the room.

Diagram showing an overhead door closer fitted in figure 1 fixing position to the pull side of a door

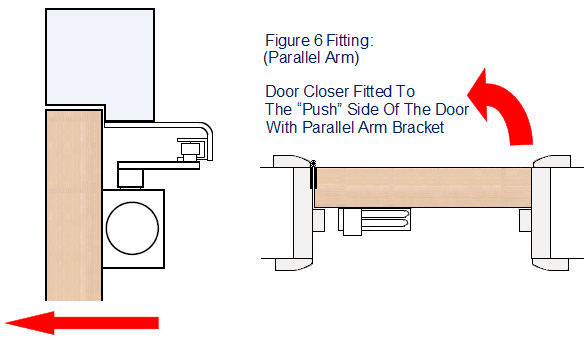

Figure 6 - push side mounting - (covered under the CE mark - suitable for use on fire doors).

Closer fitted to the push side of the door.

Body fitted to the door with arms fitted to the door frame via a parallel arm bracket (supplied with each unit).

In this position the closer arms will lie flat against the door running parallel with the door frame.

Sometimes known as figure 66.

Diagram showing a door closer fitted to the push side of the door in figure 6 position

Fixed Power Size 4:

EN Power Size Setting	Maximum Door Width (mm)	Maximum Door Weight (kg)
4	1100mm	80kg

Adjustable Closing Speed:

The closing speed can be adjusted by turning a small screw in the body of the closer.

By turning the screw in the body the rate at which oil flows through the closer changes in turn controlling how fast the closer will shut the door.

Speed adjustment can be controlled from approximately the first 180 degrees down to the last 15 degrees of the closing cycle.

Diagram showing which part of the door closing cycle the adjustable speed effects

Adjustable Latch Action:

The last 15 degrees of the closing cycle is known as the latch action (or snap action), it's designed to help give a door closer a little extra force to help it overcome any door seals, or latches that might prevent the door from closing within the frame.

The latch action can be adjusted by turning a screw in the body of the closer.

By turning the latch action off or very low the door closer will softly close into the frame, by turning the latch action to it's maximum setting the door closer will push into the door frame with extra force.

Diagram showing the snap action over the last 15 degrees of a door closer closing cycle

Closer Dimensions:

Body Length - 236mm
Body Height - 55mm
Body Depth - 38mm
Cover Length - 240mm
Cover Height - 69mm
Cover Depth - 49mm

Opening Forces - BS 8300:

This overhead door closer has hold-open and swing-free functions making it suitable for use in applications where ease of access is important and compliance with the requirements of The Equalities Act.
There is no minimum door size for this closerto help meet the requirements laid down by The Equalities Act.
