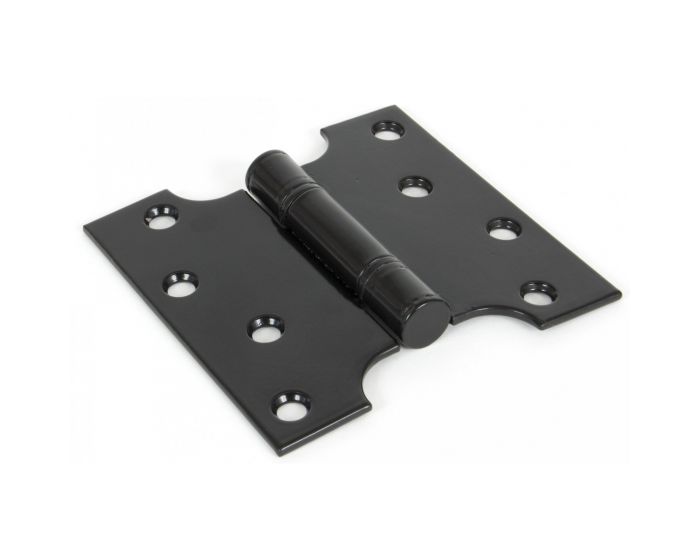

Hi-Load Parliament Projection Hinges - Matt Black

Catalogue Number:

41490

Product Name Price Qty

41490.1 - Parliament Projection Hinges - 102mm x 50mm x 102mm x 3mm - Matt Black - Pair

£57.22 £47.68

Per Pair - (2 Hinges)

41490.2 - Parliament Projection Hinges - 102mm x 75mm x 127mm x 3.5mm - Matt Black - Pair

£69.46 £57.88

Per Pair - (2 Hinges)

41490.3 - Parliament Projection Hinges - 102mm x 100mm 152mm x 3.5mm - Matt Black - Pair

£81.74 £68.12

Per Pair - (2 Hinges)

Enquire Now

Parliament projection hinges for double, patio and French doors.
Projects doors clear of architraves, window boards or down pipes
Hinges allow doors to fold back 180 degrees
Heavy duty - for high use fire doors
For exterior / interior use
Measurements are leaf height x inside clearance x fully open width
Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection

Finish

Dimensions

Available in 3 Sizes

31143.1 - (102mm x 102mm x 4mm)

31143.2 - (102mm x 127mm x 4mm)

31143.3 - (102mm x 152mm x 4mm)

Important Info Before You Buy

Parliament hinges are used to help project or "throw" a door past an obstruction so it can fold back on it's self 180degrees

More Information
Item	41490
Item Code	41490
Finish	Matt Black
Dimensions	102mm x 102mm / 102mm x 125mm / 102mm x 152mm
Sold Per	Pair - (2 Hinges)
Availability	Non stock product - please allow 3-7 days for delivery

Non stock product - please allow 3-7 days for delivery
