Polymer Bearing Grade 13 Hinges - CE / UKCA Marked - Fired Rated - Certifire Approved - 120kg Weight Limit - 102mm x 76mm - Satin Brass Plated

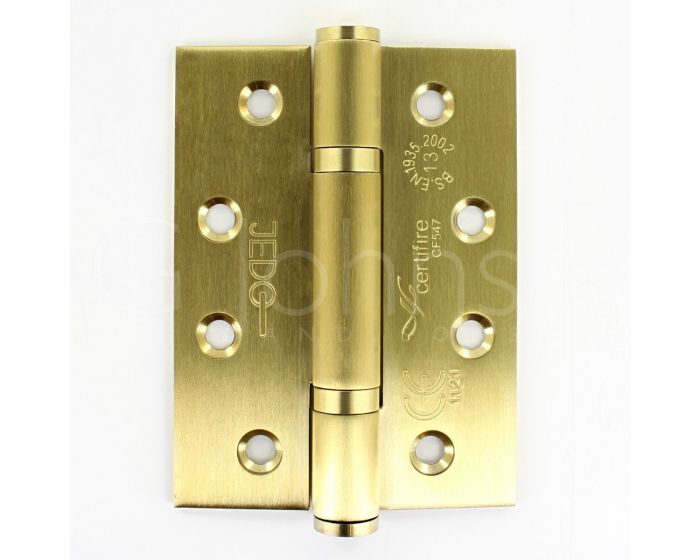

• Grade 13 polymer bearing satin brass finish hinges.

• Fire rated, CE Marked / UKCA Marked and Certifire approved

• Tested and passed to British standard EN.1935 2002 overall grade 13.

• Tested to grade 7 door mass suitable for doors up to 120kg in weight.

• The bearing avoid metal to metal movement by using polymer bushes in the knuckle, impregnated with a specially formulated lubricant, This construction eliminates the wear and regular maintenance required by other types of hinge.

Dimensions

Base Material

• Stainless steel

Finish

• Satin brass

Standards This Product Conforms To

• Tested and passed to BS EN 1935* the British / European standard requirements and testing methods covering single axis hinges. Classification number - 4-7-7-1-1-4-0-14.

• *To meet this standard 2mm thick intumescent liners should be fitted behind each leaf of the hinge.

• Tested and passed to BS EN 1634 the British / European standard for determining the fire resistance of door and shutter assemblies including hardware. These hinges have been assessed for use on 30 minute and 1 hour timber fire doors FD30 / FD60.

• CE Marked / UKCA Marked

• Certifire approved

Usage

• Suitable for use 44mm and 54mm thick wooden doors

• To pass fire regulations three hinges must be fitted per door (pair and a half).

Unit Of Sale

• Sold and priced in pairs (2 hinges) supplied with fixing screws.
