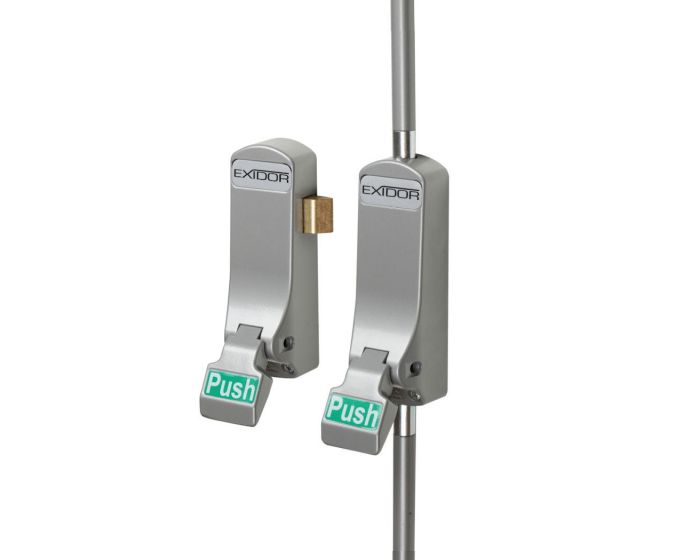

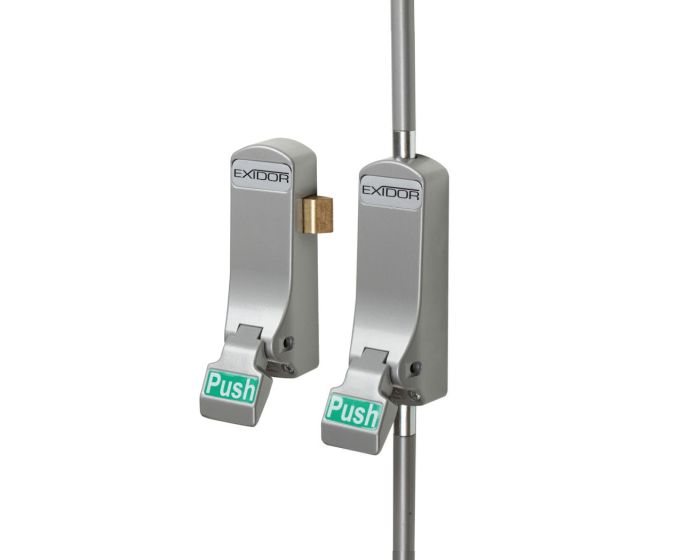

Push Pad Panic Bolt & Latch Kit - For Double Rebated Fire Escape Doors - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30767
Full Description
Product Name Price Qty
30767.1 - Push Pad Panic Bolt & Latch Kit - For DOUBLE REBATED Fire Escape Doors
£211.34 £176.12

Per Each
Add to Mood Board
Enquire Now
  • The Exidor 293/297/300 kit is an elegant and highly functional push pad panic bolt and push pad panic latch set for use on double rebated fire escape and single emergency exit door applications.

  • Double rebated door kit includes
  • - 1x Exidor 293 push pad panic bolt with top and bottom vertical shoot bolts.
  • - 1x Exidor 297 push pad panic latch set.
  • - 1x Exidor 300 Double rebated door receiver plate for the panic latch set.

  • Silver (SE) finish.

  • Tested to BS EN 179 this emergency escape device is only suitable for use where the emergency exit door is used only by trained personnel.

  • The Exidor 293/297/300 kit should only be used in low occupancy places of work (an area of less then 60 people) and areas never accessed by members of the general public or those unfamiliar with the operation instructions. (For example this item should only be fitted in office areas or factories where personnel have been trained and regularly practice a fire drill.)

  • This item is NOT suitable for use in public buildings and public areas (areas with 60 or more people).

  • Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

  • Incorporated as standard is an automatic top trip which will hold the bolts "in" once the door has been opened and stops the bottom shoot from rubbing along the floor. Once the door is closed the top trip releases the bolts automatically back into their receiver plates to secure the door closed.

  • The main body is fitted with an anti-thrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.

  • Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

  • Surface mounted fitting.

    • Finish Details

  • Silver (SE) finish.

    • Alternative Finishes Available

  • RAL colours including white, black, blue, green and red. - Available to special order.
  • Plated Finish including stainless steel effect and brass effect - Available to special order.
  • Please contact us for prices and lead times for special order Finish.

    • Operation

  • When the pad is pushed downwards on the panic latch set (located on the first opening door leaf) this door only will open.
  • When the pad is pushed downwards on the panic bolt set (located on the slave door leaf) then this will force both doors to open at once.
  • When the slave door is closed again the top trip (supplied) automatically releases the vertical bolts back into their receiver plates to secure the door closed. When the 1st opening door is closed the panic latch engages into a receiver plate mounted onto the slave door.

    • Usage

  • This Exidor 293/297/300 is suitable for use on double rebated, wooden fire exit doors.
  • Suitable for doors up to 2440mm high.
  • For taller doors longer top shoot tubes are available to special order.

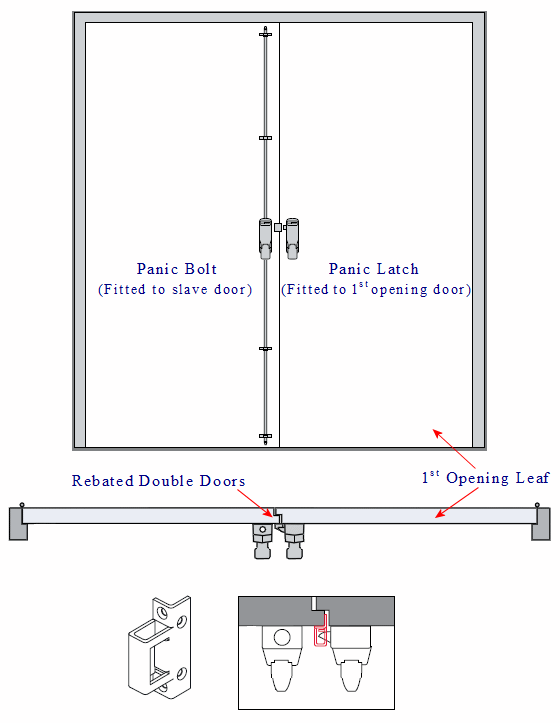

    • Diagram showing the Exidor 293/297/300 push pad kit fitted to double rebated doors


  • Below diagram shows the top trip and top bolt receiver plate fitted to the top of the door frame.

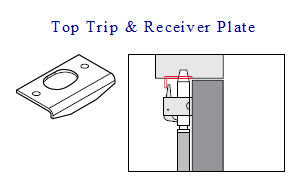

    • Diagram showing the Exidor top trip and top bolt receiver plate


  • Below diagram shows the floor mounted bolt receiver plate which the bottom bolt engages into.

    • Diagram showing the Exidor floor mounted receiver plate for the bottom bolt


    Dimensions

  • Body Height - 159mm
  • Body Wight - 55mm
  • Projection Form Door - 80mm (Grade 2)
  • Max Door Height - 2440mm

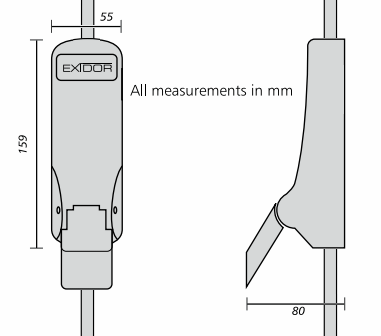

    • Diagram showing dimensions of the Exidor 293 push pad panic bolt set

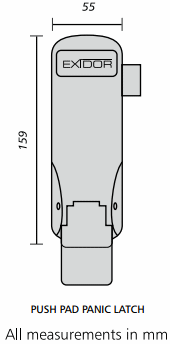

    Diagram showing dimensions of the Exidor 297 push pad panic latch set

    Fixings

  • Comes supplied with
  • - Fixings to suit wooden doors.
  • - Top trip and easy clean floor socket.
  • - Adjustable top and bottom shoots.
  • - Receiver plate for double rebated doors.
  • - "Push Pad To Exit" sign.

    • Standards This Product Conforms To

  • CE Marked / UKCA Marked
  • Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.
  • Suitable for use in low occupancy areas used by trained personnel only.
  • Tested to BS EN 179 2008 - Emergency exit devices operated by a lever handle, push pad or pull pad. - Classification number -376B1342BA
  • Please see technical tab above for more details on this classification number.
  • Certificates available on request.

    • Optional extras available to suit this item

  • Pullman latches (to replace the top and bottom shoot bolts ideal for high use areas.)
  • Outside access devises (knob or lever operated.)
  • Dogging device (to leave the bolts held so the door is "unlatched")
  • Alarm box (sounds an alarm is horizontal bar is pressed.)
  • Metal door version available to special order.

    • Unit Of Sale

  • Kit - one "Kit" contains 1x push pad panic bolt set + 1x push pad panic latch set to suit a pair of wooden rebated double doors.
    • Download PDF Data Sheet
    More Information
    Item 30767
    Item Code 30767
    Finish Silver
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Kit - ( To Suit One Pair Of Double Rebated Doors )
    Availability Non stock product - please allow 3-7 days for delivery
    Declaration Of Performance - DoP Certificate - Push Pad Panic Hardware Sets (758.53 kB)
    Certifire CF392 Certificate - For Exidor 200 Series Emergency Exit Devices Tested To EN179 (354.73 kB)
    Non stock product - please allow 3-7 days for delivery
