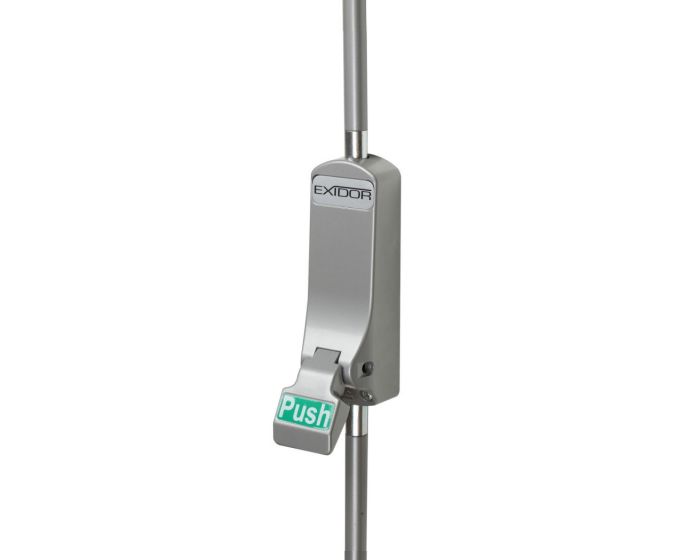

Push Pad Panic Bolt Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:
30766
Full Description
Product Name Price Qty
30766.1 - Push Pad Panic Bolt Set - For SINGLE Fire Escape Exit Doors
£123.74 £103.12

Per Each
Add to Mood Board
Enquire Now
  • The Exidor 293 is an elegant and highly functional push pad panic bolt set for use on single fire escape and single emergency exit door applications.

  • Push pad design with top and bottom vertical shoot bolts.

  • From the Exidor 200 range.

  • Silver (SE) finish.

  • Tested to BS EN 179 this emergency escape device is only suitable for use where the emergency exit door is used only by trained personnel.

  • The Exidor 293 should only be used in low occupancy places of work (an area of less then 60 people) and areas never accessed by members of the general public or those unfamiliar with the operation instructions. (For example this item should only be fitted in office areas or factories where personnel have been trained and regularly practice a fire drill.)

  • This item is NOT suitable for use in public buildings and public areas (areas with 60 or more people).

  • Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

  • Incorporated as standard is an automatic top trip which will hold the bolts "in" once the door has been opened and stops the bottom shoot from rubbing along the floor. Once the door is closed the top trip releases the bolts automatically back into their receiver plates to secure the door closed.

  • The main body is fitted with an anti-thrust device, which prevents leverage of both the top and bottom shoot bolts from their sockets.

  • Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

  • Surface mounted fitting.

    • Finish Details

  • Silver (SE) finish.

    • Alternative Finishes Available

  • RAL colours including white, black, blue, green and red. - Available to special order.
  • Plated Finish including stainless steel effect and brass effect - Available to special order.
  • Please contact us for prices and lead times for special order Finish.

    • Operation

  • When the pad is pushed downwards the top and bottom vertical bolts are withdrawn allowing the door to open.
  • When the door is closed again the top trip (supplied) automatically releases the vertical bolts back into their receiver plates to secure the door closed.

    • Usage

  • This Exidor 293 is suitable for use on single, wooden fire exit doors.
  • Suitable for doors up to 2440mm high.
  • For taller doors longer top shoot tubes are available to special order.
  • Only suitable for use in low occupancy areas such as offices with trained personnel (low occupancy - less then 60 people).
  • This item is NOT suitable for use in public areas or public buildings.

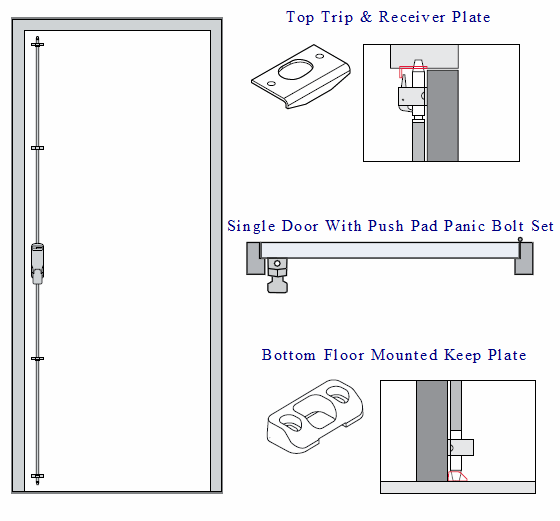

    • Diagram showing the Exidor 293 push pad panic bolt set fitted to a single door


    Dimensions

  • Body Height - 159mm
  • Body Width - 55mm
  • Projection Form Door - 80mm (Grade 2)
  • Max Door Height - 2440mm

    • Diagram showing dimensions of the Exidor 293 push pad panic bolt set

    Fixings

  • Comes supplied with
  • - Fixings to suit wooden doors.
  • - Top trip and easy clean floor socket.
  • - Adjustable top and bottom shoots.
  • - "Push Pad To Exit" sign.

    • Standards This Product Conforms To

  • CE Marked / UKCA Marked
  • Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.
  • Suitable for use in low occupancy areas used by trained personnel only.
  • Tested to BS EN 179 2008 - Emergency exit devices operated by a lever handle, push pad or pull pad. - Classification number -376B1342BA
  • Please see technical tab above for more details on this classification number.
  • Certificates available on request.

    • Optional extras available to suit this item

  • Pullman latches (to replace the top and bottom shoot bolts ideal for high use areas.)
  • Outside access devises (knob or lever operated.)
  • Outside access devices (knob operated (Exidor 302) or lever operated (Exidor 322).
  • Alarm box (sounds an alarm is horizontal bar is pressed.)
  • Metal door version available to special order.

    • Unit Of Sale

  • Each - one item contains 1 push pad panic bolt set to suit 1x single wooden door.
    • Download PDF Data Sheet
    More Information
    Item 30766
    Item Code 30766
    Finish Silver
    Fire Rated FD30 / FD60 - Fire Rated
    Sold Per Each - ( To Suit 1 x Single Door )
    Availability Non stock product - please allow 3-7 days for delivery
    Declaration Of Performance - DoP Certificate - Push Pad Panic Hardware Sets (758.53 kB)
    Certifire CF392 Certificate - For Exidor 200 Series Emergency Exit Devices Tested To EN179 (354.73 kB)
    Non stock product - please allow 3-7 days for delivery
