Push Pad Panic Latch Set - For Single Fire Escape Exit Doors - Suitable For Use With FD30 / FD60 Fire Doors

Catalogue Number:

30768

Full Description

Product Name Price Qty

30768.1 - Push Pad Panic Latch Set - For SINGLE Fire Escape Exit Doors

£72.31 £60.26

Per Each

Enquire Now

Description

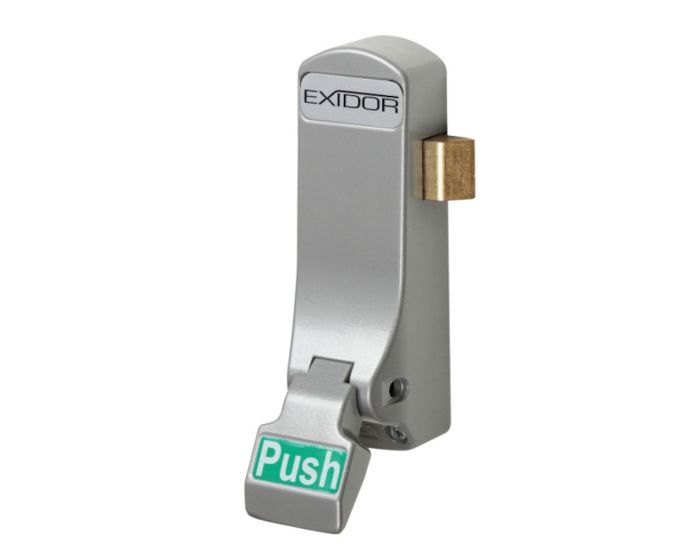

The Exidor 297 is an elegant and highly functional push pad panic latch set for use on single fire escape and single emergency exit door applications.

Push pad design with 1 point basic locking via a simple horizontal latch.

From the Exidor 200 range.

Supplied with receiver plate for frame (for latch to engage into.)

Silver (SE) finish.

Tested to BS EN 179 this emergency escape device is only suitable for use where the emergency exit door is used only by trained personnel.

The Exidor 297 should only be used in low occupancy places of work (an area of less then 60 people) and areas never accessed by members of the general public or those unfamiliar with the operation instructions. (For example this item should only be fitted in office areas or factories where personnel have been trained and regularly practice a fire drill.)

This item is NOT suitable for use in public buildings and public areas (areas with 60 or more people).

Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors. Certificates available upon request.

Non-handed design suitable for use on ISO 5 and ISO 6 handed doors (left and right handed.)

Surface mounted fitting.

Finish Details

Silver (SE) finish.

Alternative Finishes Available

RAL colours including white, black, blue, green and red. - Available to special order.

Plated Finish including stainless steel effect and brass effect - Available to special order.

Please contact us for prices and lead times for special order Finish.

Operation

When the pad is pushed downwards the latch is released and the door will open.

When the door is closed again the latch rides back into the receiver plate mounted on the frame to secure the door closed.

Usage

This Exidor 297 is suitable for use on single, wooden fire exit doors.

Only suitable for use in low occupancy areas such as offices with trained personnel (low occupancy - less then 60 people).

This item is NOT suitable for use in public areas or public buildings.

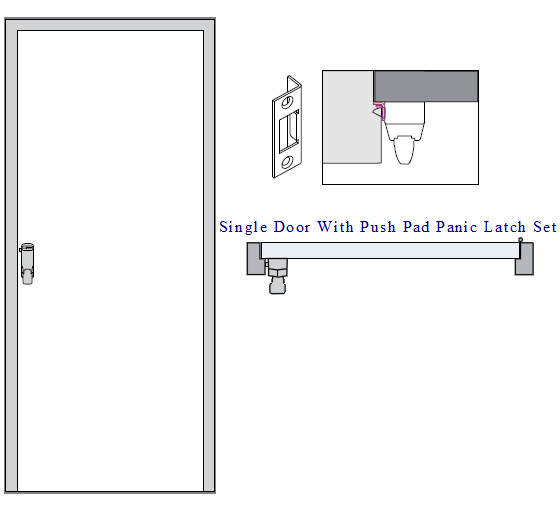

Diagram showing the Exidor 297 push pad panic latch set fitted to a single door

Dimensions

Body Height - 159mm

Body Width - 55mm

Projection Form Door - 80mm (Grade 2)

Max Door Height - 2440mm

Diagram showing dimensions of the Exidor 297 push pad panic latch set

Fixings

Comes supplied with

- Fixings to suit wooden doors.

- "Push Pad To Exit" sign.

- Receiver plate for mounting to frame.

Diagram showing the receiver plate supplied with the Exidor 296 panic latch set

Standards This Product Conforms To

CE Marked / UKCA Marked

Fire rated - Certified for use on 60 minute FD60 timber fire doors and 240 minute FD240 metal fire doors.

Suitable for use in low occupancy areas used by trained personnel only.

Tested to BS EN 179 2008 - Emergency exit devices operated by a lever handle, push pad or pull pad. - Classification number -376B1342BA

Please see technical tab above for more details on this classification number.

Certificates available on request.

Optional extras available to suit this item

Outside access devices (knob operated (Exidor 302) or lever operated (Exidor 322).

Metal door version available to special order.

Unit Of Sale

Each - one item contains 1x push pad panic latch set to suit 1x single wooden door.

Download

Download PDF Data Sheet

Specification

More Information
Item	30768
Item Code	30768
Finish	Silver
Fire Rated	FD30 / FD60 - Fire Rated
Sold Per	Each - ( To Suit 1 x Single Door )
Availability	Non stock product - please allow 3-7 days for delivery
