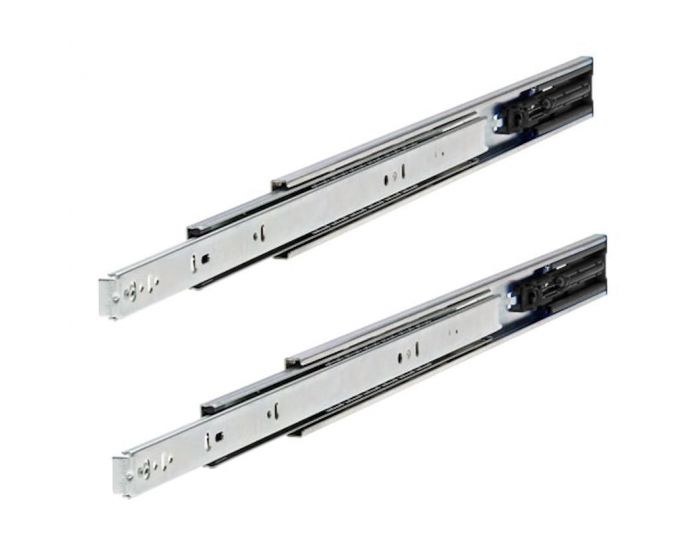

Push To Open - Touch Release - Ball Bearing Drawer Runners - Full Extension - 45kg Weight Limit - Zinc Plated

• Ball bearing drawer runners with built-in push to open mechanism.

• Designed for use in kitchens with no handles. Drawers can be open by simply touching and lightly pushing the drawer front.

• Touch release holds drawers or pull-out shelves in a closed position until activated by touch, eliminating the need for knobs or handles.

• Smooth and quiet operation.

• Ideal for use with kitchen drawers, wardrobes and TV units with no handles.

• Double (full) extension design allows the drawer to be pulled fully out from the cupboard / carcass.

• 45kg weight limit.

• Front disconnect feature allows the drawer to be removed from the cabinet by simply pressing the lever built into the runners.

• Hold-in feature holds the closed drawer in place.

• Cam adjuster offers installers a simple, yet precise mechanism for vertical drawer adjustment.

• Side mounted - 13mm gap required between drawer side and carcass.

Dimensions

• Runner height - 46mm
• Runner thickness (Installation Width Required) - 13mm
• 2mm tolerance is required to push the drawer inwards to activate the touch release mechanism.
• *** PLEASE NOTE - MAXIMUM DRAWER WIDTHS SHOWN IN TABLE BELOW BEFORE ORDERING ***

Base Material

• Made from steel.

Finish Details

• Bright zinc plated.

Unit Of Sale

• These ball bearing drawer runners are sold as pair (two runners).
