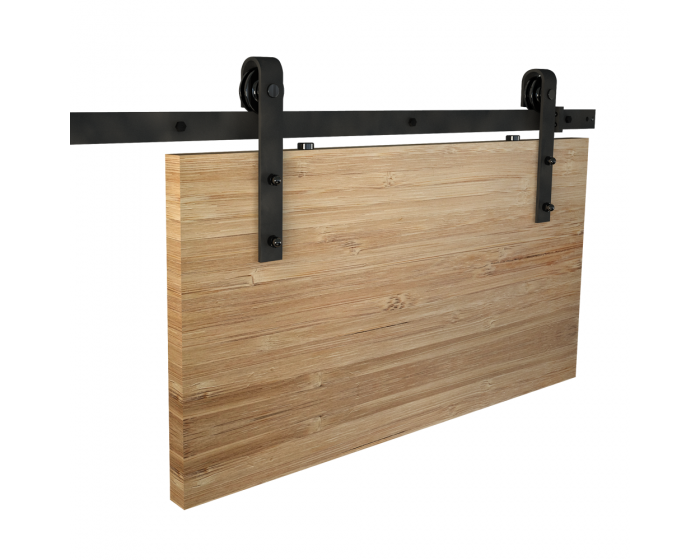

Rea - Barn Door Style Sliding Door Gear With Face Fix Straps - For Door Widths Up To 900mm Wide - Track Length 2000mm - Matt Black

• The Rea sliding door system is a barn style sliding door track with face fix door straps in a matt black finish.

• Steel track with matt black ball bearing rollers.

• Designed for use with timber doors between 35mm - 45mm thick and up to 100kg in weight.

• Ideal for sliding doors between rooms, wall openings or for entrances to offices.

• Face fix strap design with ball bearing hangers that run along a matt black, rectangular shape top rail.

• A concealed floor mounted guide is centrally located to eliminate any swinging effect and allow a uniform movement during sliding.

• Each set includes all the main components needed to install a long lasting, smooth running wooden sliding door.

Single Sliding Doors

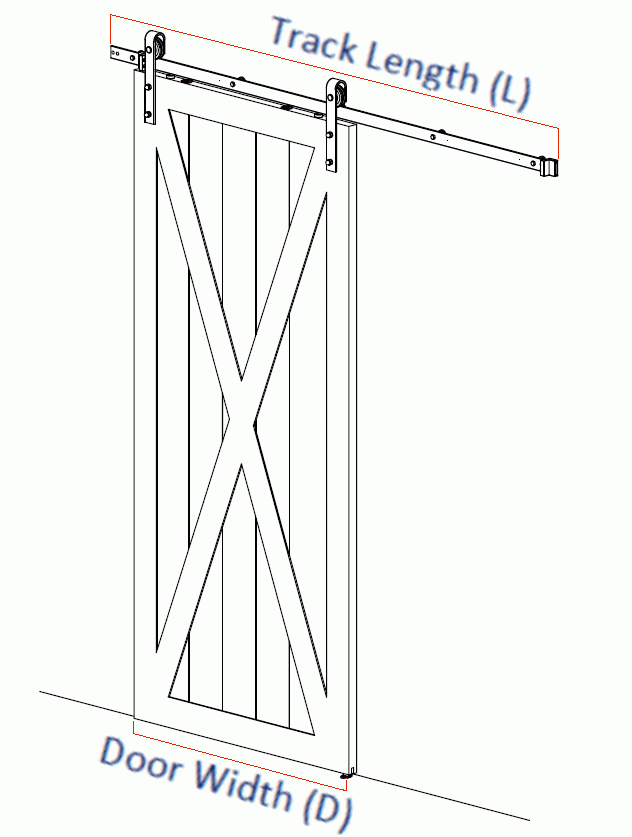

Dimensions And Track Lengths Available

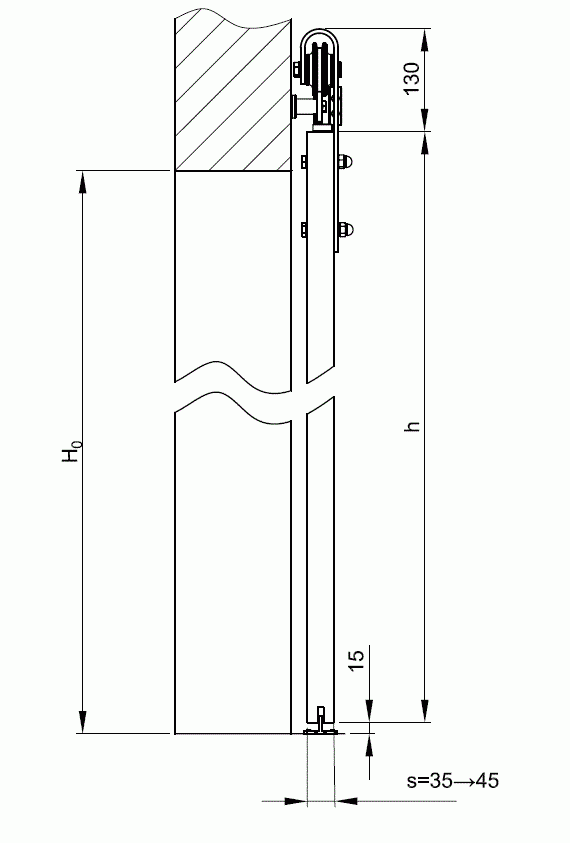

• Door height (h) is calculated as follows Ho (Opening Height) + 73mm

Optional Extras

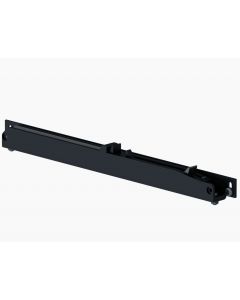

• Soft close device - 43017

Fixing Options

• This barn door style sliding door system is designed to be fixed on to the wall.

• This system is attached to the wall via wall fixing brackets which attach to the top track.

• The top track is pre-machined to receive the brackets.

• Single screw fixing back plate with twin allen key fixing front plate.

• Brackets are to be positioned approximately every 450mm along the top track.

Bottom Floor Guide

• Supplied complete with a concealed floor guide, fixed to the floor next to the door frame, it runs in a groove in the door leaving the threshold free from obstructions.

Items Included Within The Rea Barn Style Sliding Door Gear System With Face Fix Straps

• 1 x Matt black top rail 2000mm length
• 5 x Wall fixing brackets.
• 2 x Single wheel ball race hangers.
• 2 x End stops.
• 1 x Floor guide - requires groove in bottom of door.
