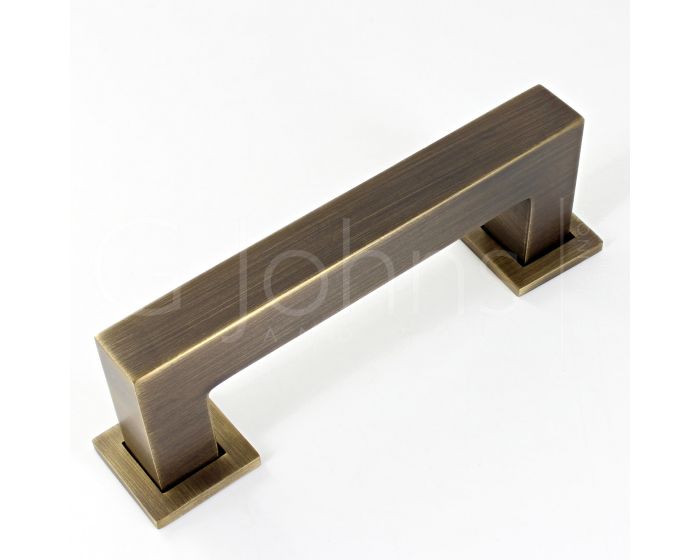

Rectangular Cube Shape Cabinet Pull Handle With Optional Base Rose - Antique Brass (Lacquered)

Catalogue Number:

44674

Product Name Price Qty

44674.1 - Rectangular Cube Shape Cabinet Pull Handle - 121mm Length (96mm Centres) - With Optional Base Rose - Antique Brass (Lacquered) - Each

£45.72 £38.10

Per Each

44674.2 - Rectangular Cube Shape Cabinet Pull Handle - 143mm Length (128mm Centres) - With Optional Base Rose - Antique Brass (Lacquered) - Each

£57.91 £48.26

Per Each

44674.3 - Rectangular Cube Shape Cabinet Pull Handle - 249mm Length (224mm Centres) - With Optional Base Rose - Antique Brass (Lacquered) - Each

£79.42 £66.18

Per Each

Enquire Now

Rectangular cube shape cupboard door pull handle with optional square base roses

Contemporary design ideal for use on modern units including, kitchen cabinet doors, wardrobes, cupboard doors and drawers

Item code	Overall Length(B)	Fixing Centres	Width(A)	Projection(C) Wth Base Plate	Projection Wthout Base Plate
44674.1	121mm	96mm	15mm	40mm	37mm
44674.2	143mm	128mm	15mm	40mm	37mm
44674.3	249mm	224mm	15mm	40mm	37mm

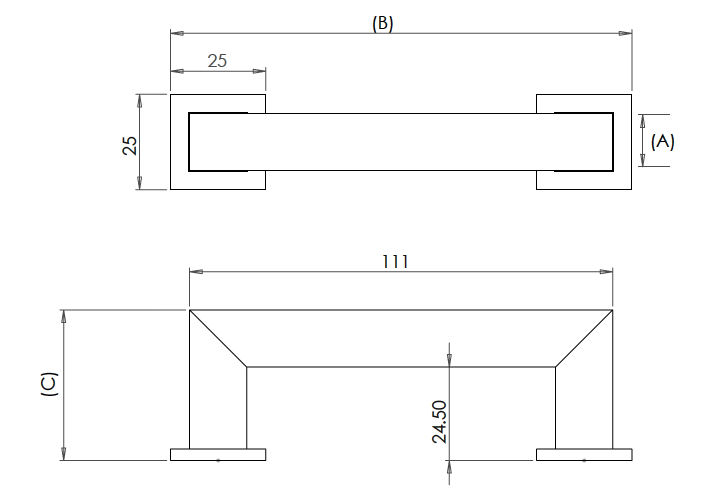

Square-Section-D-Shape-Cabinet-Pull-Handle-Dimensions-Diagram

This handle is fitted via M4 bolts from the rear of the door / drawer - see below diagram.

Diagram-Showing How A Cabinet Handle Bolts Through A Door / Drawer

Bolt through fixings provide a superior strong fixing allowing this handle to be fitted to tall or heavy doors

Comes supplied with M4 (diameter) x 25mm & 45mm (long) bolts, the 25mm long bolts are to suit 18mm cupboards and the 45mm designed to be cut down to length on site for thicker doors

For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately

More Information
Item	44674
Item Code	44674
Finish	Antique Brass (Lacquered)
Dimensions	Available In Three Lengths
Sold Per	Each
Availability	Non stock product - please allow 3-7 days for delivery
