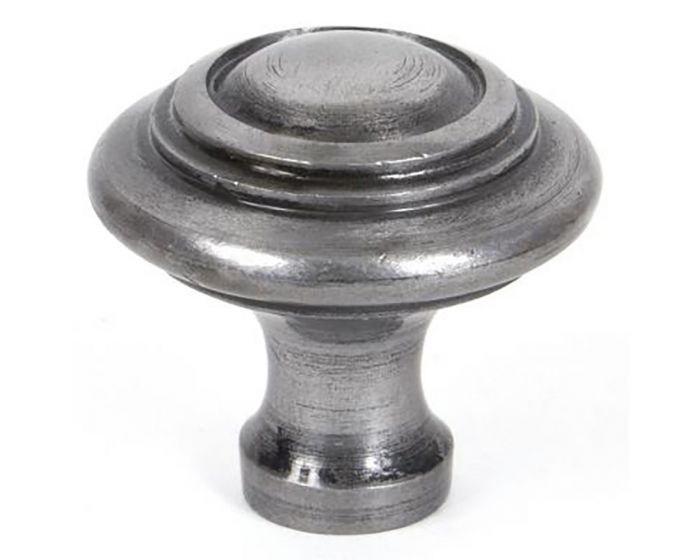

Ringed Pattern Cupboard Door Knob - Two Sizes Available - Natural Smooth Cast Iron

• Ringed Pattern cupboard door Knob

• The unique effect is achieved by individually hammering each product by hand

• Natural smooth products are made from a natural cast iron and finished with a clear matt lacquer

• High architectural quality range

Size Details

• Available in 2 sizes

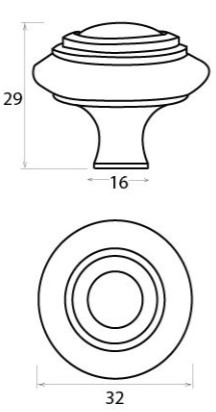

• Overall Size: 32mm Diameter
• Base Size: 16mm Diameter
• Projection: 29mm

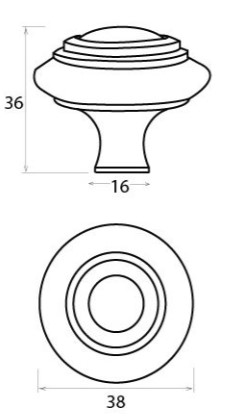

• Overall Size: 38mm Diameter
• Base Size: 16mm Diameter
• Projection: 36mm

Base Material

• Cast Iron

Finish Details

• Natural Smooth Cast Iron

Fixings

• This cupboard knob is fitted via a M4 bolt from the rear of the door / drawer - see below diagram

• Bolt through fixings provide a superior strong fixing allowing this knob to be fitted to tall or heavy doors
• Comes supplied with a 25mm long bolt - suitable for use on 18mm thick doors
• For doors thicker then 18mm, longer M4 fixing bolts are available to buy separately (See related products below)

Alternative Fixings

• For fixing two cupboard Knob back to back on either side of a door, a length of M4 stud is required to screw the two Knob together

• For face fixing a cupboard knob by screwing it directly into the front of a wooden door or drawer, a dual M4 / Wood screw is required

Usage

• Suitable for internal use
• For doors thicker then 18mm please purchase longer M4 fixing bolts (See related products below)

  Unit Of Sale

• These cupboard Knob are sold individually - Each
