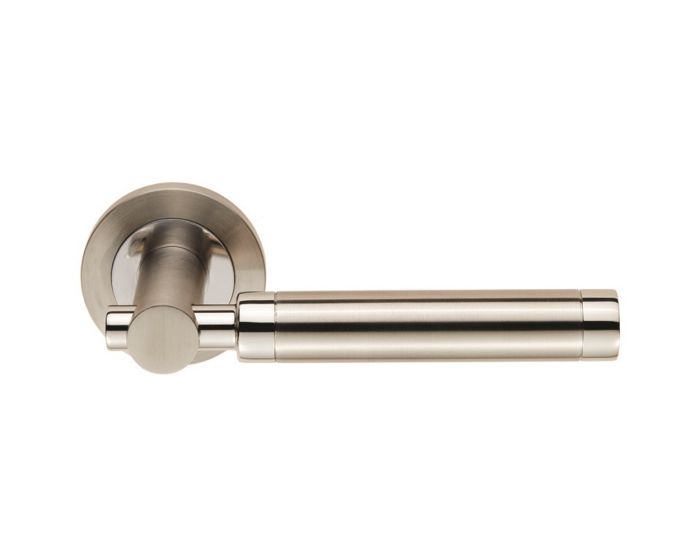

Astoria Round Rose Lever Handles - Suitable For Use With FD30 / FD60 Fire Doors Dual Satin and Polished Stainless Steel

• Round rose lever handles.

• These door handles are tested to grade 3

• Dual satin and stainless steel finish.

• Suitable for superior residential use or commercial.

• Concealed bolt through fixings via screw on rose.

• Tested to BS EN 1906:2012 - classification number 16-1034A - category of use grade 3

• Suitable for use on fire rated doors tested to BS EN 1634

• Matching accessories available including standard escutcheons (keyhole covers) and a bathroom turn & release set.

How To Order Lever Handles With A Rose

• For Non-Locking Doors - 1 x (Pair) Lever Handles Only

• For Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Standard Escutcheons

• For Euro Cylinder Locking Doors - 1 x (Pair) Lever Handles Only + 2 x (Each) Euro Escutcheons

• For Locking Bathroom Doors - 1 x Pair Lever Handles Only + 1 x (Set) Turn & Emergency Release

Matching Accessories

• Standard escutcheon - (key hole cover to suit regular "chubb style locks") - 41089.1

• Euro profile escutcheon - (key hole cover to suit euro profile cylinders) -  41088.1

• Turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors) - 41107.1

• Disabled large turn & emergency release - (a thumbturn used to lock bathroom doors, WC's and toilet doors) - 41108.1

Base Material

• Made from grade 304 stainless steel.

• Dual satin and polished stainless steel.

Operation

• Both levers are sprung to ensure the lever always returns to its starting position.

Size Information

• Rose Diameter - 52mm
• Rose Thickness - 7mm

Spindle Size

• 8mm x 8mm square - UK Standard.

Fixings

• Concealed bolt together fixings via male and female bolts.
• Grub screw fixing to spindle for extra strength once fitted to the door.
• Comes supplied with male and female bolt through fixings and 8mm heso fixing spindle.

Usage

• Suitable for residential or commercial use.
• Suitable for internal or external use.

Unit Of Sale

• Lever handles are sold in pairs. (One pair consists of 1x left hand and 1x right hand.)
• Escutcheons (key hole covers) are sold individually (each.)
• Turn and emergency releases are sold as a set (One set consists of a rose with a thumbturn fitted to the inside of the door and a rose with a coin slot fitted to the outside of the door.)
